PUYA

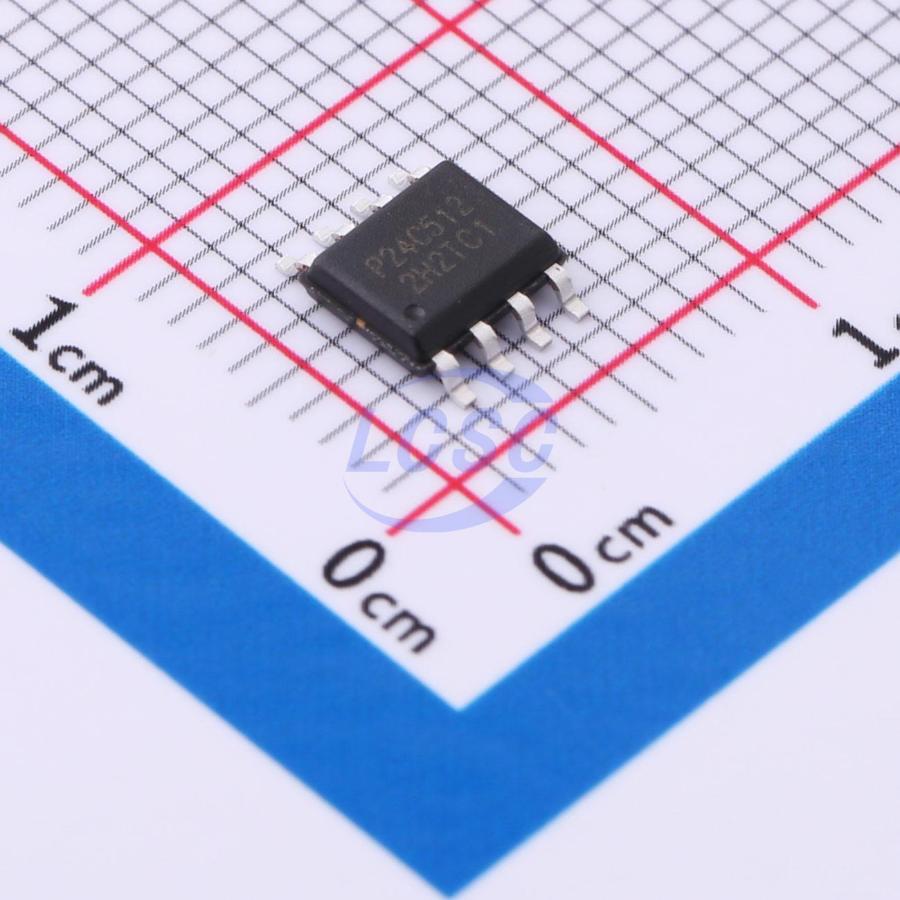

P24C512B-SSH-MIR
512Kbit 1MHz I2C SOP-8 Memory
SOP-8RoHSActive
I²C-Compatible Serial E²PROM
Datasheet (PDF)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,355 in stock
#C5263814
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹31.06 | ₹155.30 |
| 50+ | ₹27.23 | ₹1,361.50 |
| 150+ | ₹25.59 | ₹3,838.50 |
| 500+ | ₹23.54 | ₹11,770.00 |
| 2,500+ | ₹20.61 | ₹51,525.00 |
| 4,000+ | ₹20.06 | ₹80,240.00 |
5 × ₹31.06
₹155.30
excl. GST
₹183.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
P24C512B-SSH-MIR
₹155.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Noise suppression function;Hardware write protection function;Page write protection function
- Memory Size
- 512Kbit
- Voltage - Supply
- 1.7V~5.5V;2.5mA
- Clock Frequency
- 1MHz
- Access Time
- 0.9us;0.55us
- Data Retention - TDR (Year)
- 100 Years
- Write Cycle Time(tWC)
- 5ms
- Standby Supply Current
- 10uA
- Write Cycle Endurance
- 1,000,000 cycles
- Interface
- I2C
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.12 g
Overview
The P24C512B is a 512- Kbit I²C - compatible Serial EEPROM (Electrically Erasable Programmable Memory) device. It contains a memory array of 64 K × 8 bits, which is organized in 128- byte per page. P24C512B provides the following devices for different application.
Key features
- Single Supply Voltage and High Speed
- Minimum operating voltage down to 1.7V
- 1 MHz clock from 2.5V to 5.5V
- 400kHz clock from 1.7V to 2.5V
- Low power CMOS technology
- Read current 500uA, maximum
- Write current 2.5mA, maximum
- Schmitt Trigger, Filtered Inputs for Noise Suppression
- Sequential & Random Read Features
- 128 byte Page Write Modes, Partial Page Writes Allowed
- Write protect of the whole memory array
- Additional Write Lockable Page
- Self- timed Write Cycle (5ms maximum)
- High Reliability
- Endurance: 1 Million Write Cycles
- Data Retention: 100 Years
- HBM: 6KV
- Latch up Capability: +/- 200mA
- Package: PDIP, SOP, TSSOP, and DFN/UDFN
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | P24C512-SSH-MIR#C7466820PUYA · SOP-8 | PUYA | SOP-8 | 180 | ₹35.69 · 180 in stock | View |
