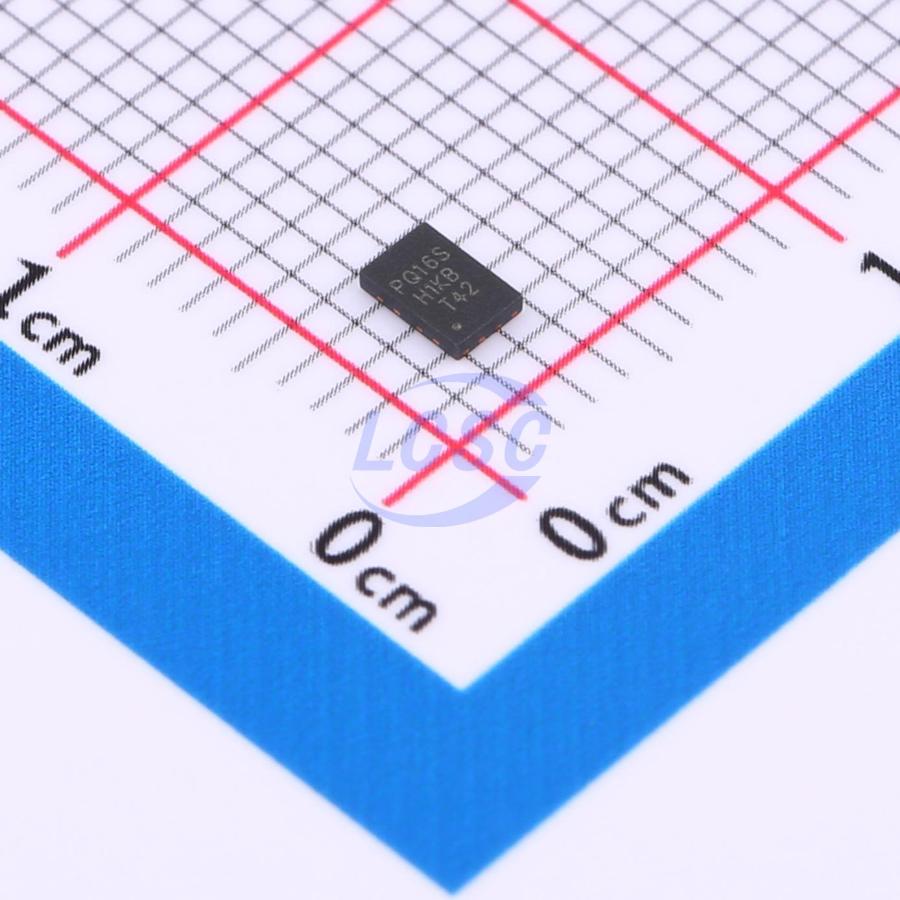

P25Q16SH-UXH-IR
16Mbit 2.3V~3.6V 133MHz SPI USON-8(2x3) Memory
Serial Multi I/O Flash Memory
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,087 in stock
#C7466821
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹74.99 | ₹74.99 |
| 10+ | ₹60.51 | ₹605.10 |
| 30+ | ₹53.38 | ₹1,601.40 |
| 100+ | ₹46.25 | ₹4,625.00 |
| 500+ | ₹41.93 | ₹20,965.00 |
| 1,000+ | ₹39.77 | ₹39,770.00 |
1 × ₹74.99
₹74.99
excl. GST
₹88.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
P25Q16SH-UXH-IR
₹74.99 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Write enable latch;Power-on reset;Hardware write protection;Software write protection
- Memory Size
- 16Mbit
- Voltage - Supply
- 2.3V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 133MHz
- Data Retention - TDR (Year)
- 20 Years
- Block Erase Time(tBE)
- 16ms
- Write Cycle Time(tWC)
- 8ms
- Page Programming Time (Tpp)
- 1.5ms
- Standby Supply Current
- 10uA
- Interface
- SPI
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.042 g
Overview
The P25Q16SH is a serial interface Flash memory device designed for use in a wide variety of high-volume consumer based applications in which program code is shadowed from Flash memory into embedded or external RAM for execution. The flexible erase architecture of the device, with its page erase granularity it is ideal for data storage as well, eliminating the need for additional data storage devices. The erase block sizes of the device have been optimized to meet the needs of today's code and data storage applications. By optimizing the size of the erase blocks, the memory space can be used much more efficiently. Because certain code modules and data storage segments must reside by themselves in their own erase regions, the wasted and unused memory space that occurs with large sectored and large block erase Flash memory devices can be greatly reduced. This increased memory space efficiency allows additional code routines and data storage segments to be added while still maintaining the same overall device density. The device also contains an additional 3*1024 -byte security registers with OTP lock (One-Time Programmable).
Key features
- Wide Supply Range from 2.3V to 3.6V for Read, Erase and Program
- Ultra Low Power consumption for Read, Erase and Program
- X1, X2 and X4 Multi I/O, QPI, DTR Support
- High reliability with 100K cycling and 20 Year-retention
- Single 2.3V to 3.60V supply
- Industrial Temperature Range -40C to 85C
- Serial Peripheral Interface (SPI) Compatible: Mode 0 and Mode 3
- Single, Dual, Quad SPI, QPI, DTR
- Standard SPI: SCLK,CS#,SI,SO,WP#,HOLD#
- Dual SPI: SCLK,CS#,IO0,IO1,WP#, HOLD#
- Quad SPI: SCLK,CS#,IO0,IO1,IO2,IO3
- QPI: SCLK,CS#,IO0,IO1,IO2,IO3
- DTR: Double Transfer Rate Read
- Flexible Architecture for Code and Data Storage
- Uniform 256-byte Page Program
- Uniform 256-byte Page Erase
- Uniform 4K-byte Sector Erase
- Uniform 32K/64K-byte Block Erase
- Full Chip Erase
- Hardware Controlled Locking of Protected Sectors by WP Pin
- 128 bit unique ID for each device
- Fast Program and Erase Speed
- 1.5ms Single/Dual/Quad Page(s) program time
- 16ms Page erase time
- 16ms 4K-byte sector erase time
- 16ms 32K/64K-byte block erase time
- JEDEC Standard Manufacturer and Device ID Read Methodology
- Ultra Low Power Consumption
- 0.5uA Deep Power Down current
- 10.0uA Standby current
- 2.5mA Active Read current at 33MHz
- 3.0mA Active Program or Erase current
- High Reliability 100,000 Program / Erase Cycles
- 20-year Data Retention
- Industry Standard Green Package Options
- 8-pin SOP (150mil/208mil)
- 8-land USON (3x2x0.55mm, 3x4x0.55mm)
- 8-land WSON (6x5mm)
- 8-pin TSSOP
- KGD for SiP
