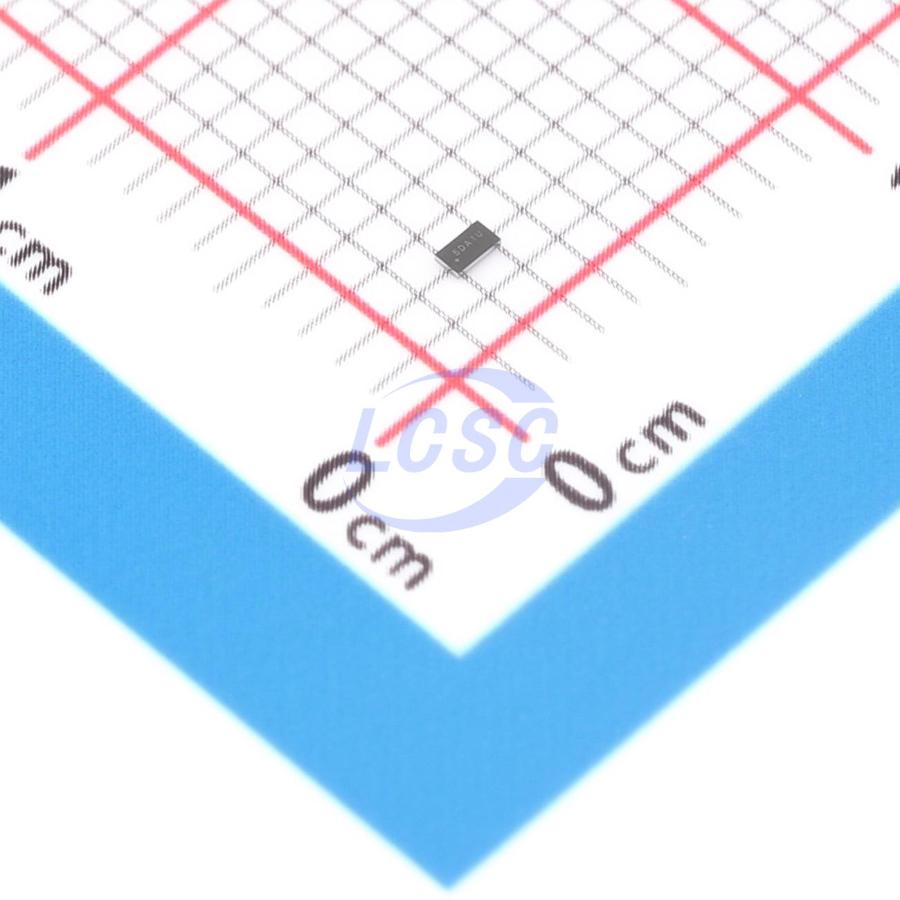

P25Q40UJ-C8H-IR
4Mbit 1.65V~3.6V 104MHz SPI WLCSP-8(2x4) Memory
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,950 in stock
#C50201873
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.87 | ₹254.35 |
| 50+ | ₹39.91 | ₹1,995.50 |
| 150+ | ₹35.23 | ₹5,284.50 |
| 500+ | ₹29.37 | ₹14,685.00 |
| 3,000+ | ₹26.76 | ₹80,280.00 |
| 6,000+ | ₹25.20 | ₹1,51,200.00 |
5 × ₹50.87
₹254.35
excl. GST
₹300.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
P25Q40UJ-C8H-IR
₹254.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Write enable latch;Power-on reset;Hardware write protection;Software write protection
- Memory Size
- 4Mbit
- Voltage - Supply
- 1.65V~3.6V
- Program / Erase Cycles
- 100,000 cycles
- Clock Frequency
- 104MHz
- Data Retention - TDR (Year)
- 20 Years
- Block Erase Time(tBE)
- 12ms
- Write Cycle Time(tWC)
- 12ms
- Page Programming Time (Tpp)
- 2ms
- Standby Supply Current
- 9uA
- Interface
- SPI
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
P25Q40UJ/20UJ/10UJ/05UJ-C8H is a serial interface flash memory device designed for a wide range of high-capacity consumer applications where program code is mapped from flash memory to an embedded or external RAM for execution. The device's flexible erase architecture and page erase granularity also make it well-suited for data storage, eliminating the need for additional data storage devices. The device also incorporates an additional 3×512-byte security register with one-time programmable locking, which can be used for purposes such as device serialization, system-level electronic serial number storage, and lock key storage. Designed for use across a variety of different systems, the device supports read, program, and erase operations over a wide supply voltage range of 1.65V to 3.6V, with no separate programming or erase voltage required.
Applications
- High-capacity consumer applications
- Program code mapped from Flash and executed in embedded or external RAM
- Data storage
Key features
- Single supply 1.65V to 3.60V
- Industrial temperature range -40℃ to 85℃
- SPI compatible: Mode 0 and Mode 3
- Single, dual, and quad I/O modes
- Flexible code and data storage architecture
- Uniform 256-byte page program
- Uniform 256-byte page erase
- Uniform 4K-byte sector erase
- Uniform 32K/64K-byte block erase
- Full chip erase
- Sector lock protection via WP pin hardware control
- One-time programmable security register
- 128-bit ID per device
- Fast program and erase speed
- JEDEC standard manufacturer and device ID read method
- Ultra-low power consumption
- High reliability
- Industry-standard green package options
