VISHAYDatasheet (PDF)

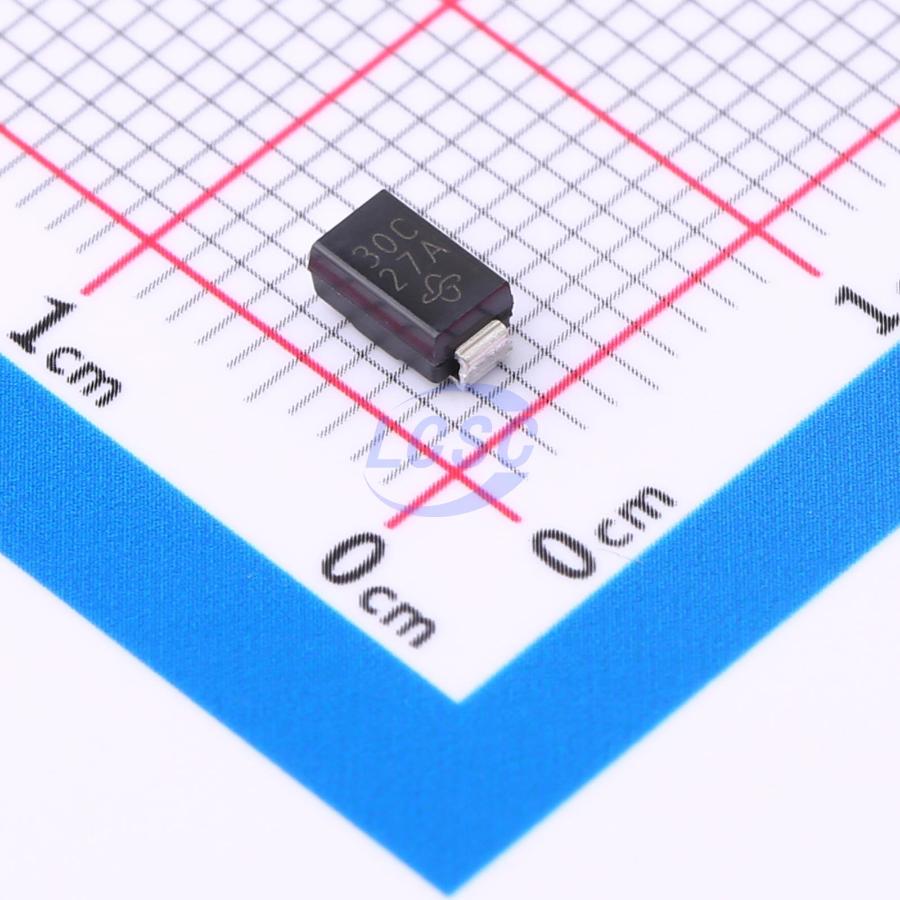

P4SMA30CA-E3/61
41.4VC Clamp 9.7A@10/1000us Ipp TVS DIODE SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
TVS DIODE 25.6VWM 41.4VC SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- P4SMA30CA-E3/61
- Store part #
- C1974412
- Package / case
- SMA(DO-214AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6 in stock
#C1974412
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.20 | ₹83.20 |
| 10+ | ₹67.83 | ₹678.30 |
| 30+ | ₹60.04 | ₹1,801.20 |
| 100+ | ₹52.46 | ₹5,246.00 |
| 500+ | ₹47.96 | ₹23,980.00 |
| 1,000+ | ₹45.50 | ₹45,500.00 |
1 × ₹83.20
₹83.20
excl. GST
₹98.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
P4SMA30CA-E3/61
₹83.20 for 1 + GST
Specifications
- Clamping Voltage
- 41.4V
- Peak Pulse Current (Ipp)
- 9.7A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 400W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 31.5V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 25.6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
