VISHAYDatasheet (PDF)

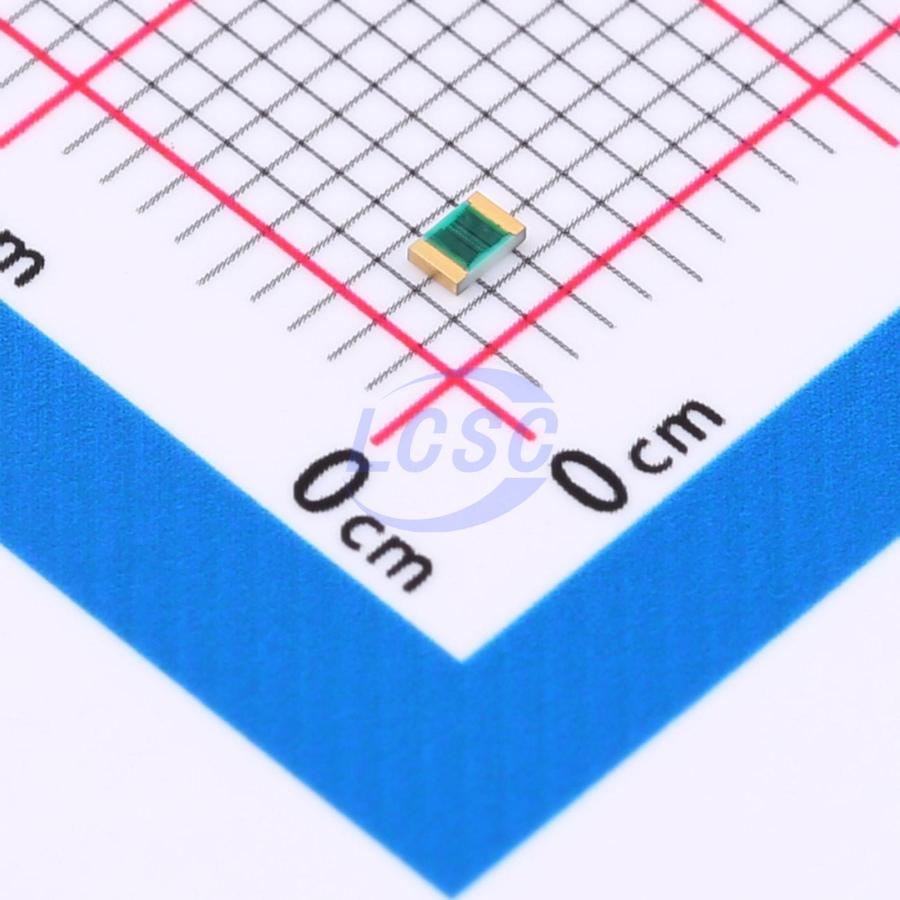

PATT0805E7502BGT1
200mW 75kΩ 100V Thin Film Resistor ±25ppm/℃ ±0.1% 0805 Chip Resistor - Surface Mount RoHS
0805ROHS3 CompliantActive
RES 75kΩ ±0.1% 200mW 0805
- Manufacturer
- VISHAY
- Manufacturer part #
- PATT0805E7502BGT1
- Store part #
- C2094121
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2 in stock
#C2094121
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹246.71 | ₹246.71 |
| 10+ | ₹242.12 | ₹2,421.20 |
| 30+ | ₹238.93 | ₹7,167.90 |
| 100+ | ₹235.73 | ₹23,573.00 |
1 × ₹246.71
₹246.71
excl. GST
₹291.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
PATT0805E7502BGT1
₹246.71 for 1 + GST
Specifications
- Power(Watts)
- 200mW
- Resistance
- 75kΩ
- Voltage Rating
- 100V
- Operating Temperature
- -55℃~+250℃
- Type
- Thin Film Resistor
- Temperature Coefficient
- ±25ppm/℃
- Tolerance
- ±0.1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.015 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| PAT0805E7502BST1#C1727278VISHAY · 0805 | VISHAY | 0805 | On request | Price on request | Quote | |
| RQ73C2A75KBTD#C2084495TE Connectivity · 0805 | TE Connectivity | 0805 | On request | Price on request | Quote | |
| PTN0805E7502BST1#C3923834VISHAY · 0805 | VISHAY | 0805 | On request | Price on request | Quote | |
| MCU0805MD7502BP100#C3979633VISHAY · 0805 | VISHAY | 0805 | On request | Price on request | Quote | |
| P0805E7502BNT#C3984915VISHAY · 0805 | VISHAY | 0805 | On request | Price on request | Quote | |
