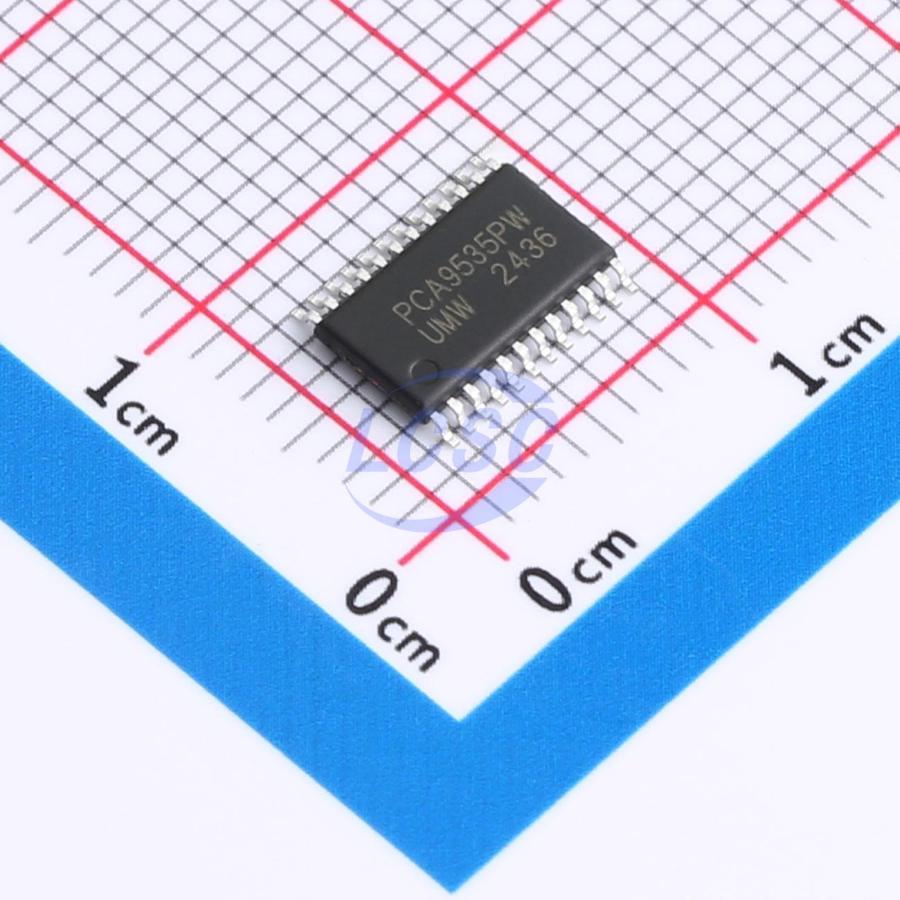

PCA9535PW(UMW)

16 TSSOP-24 I/O Expanders RoHS

TSSOP-24ROHS CompliantActive

16-bit I²C-bus I/O Expander with Interrupt Output

Manufacturer: UMW
Manufacturer part #: PCA9535PW(UMW)
Store part #: C42420616
Package / case: TSSOP-24
Category: I/O Expanders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10,528 in stock

#C42420616

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹64.22	₹64.22
10+	₹50.05	₹500.50
30+	₹44.03	₹1,320.90
100+	₹36.51	₹3,651.00
500+	₹33.08	₹16,540.00
1,000+	₹30.93	₹30,930.00

Quantity (min 1)

1 × ₹64.22

₹64.22

excl. GST

₹75.78 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

PCA9535PW(UMW)

₹64.22 for 1 + GST

Specifications

Interrupt Output: Interrupt Output
Operating Temperature: -40℃~+85℃
Number of I/O: 16
Features: Built-in LED driver
Voltage - Supply: 2.3V~5.5V
Quiescent Supply Current: 500nA
Number of Supporting Devices: 8
Current - Output High(IOH): 10mA
Interface: I2C;SMBus

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.214 g

Overview

The UMW PCA9535 series provides general-purpose parallel I/O (GPIO) expansion. Port data is transmitted via the standard I²C protocol, supporting communication rates up to 1MHz (up to 2MHz with high-speed mode enabled). The UMW PCA9535 series features 16-bit totem-pole I/O ports (P07–P00, P17–P10) capable of directly driving LEDs. Each bit of the GPIO port can be individually configured as input or output. Upon power-up, the I/Os are configured as inputs.
