TIDatasheet (PDF)

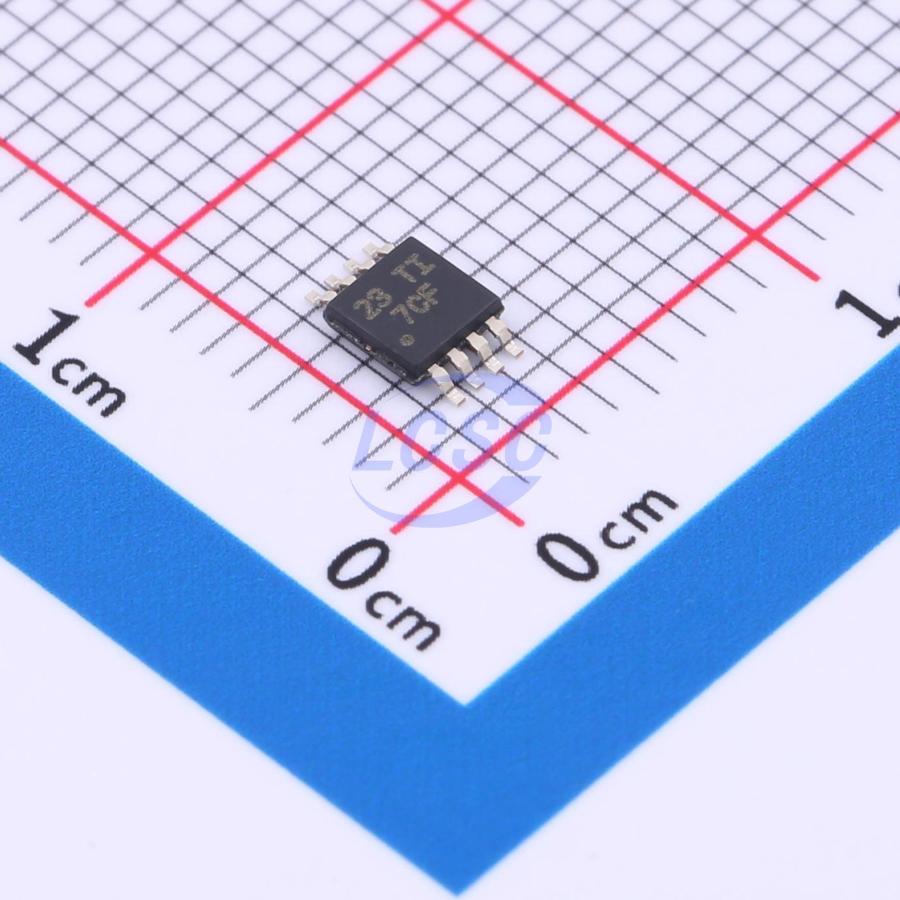

PCA9536DGKR
4 VSSOP-8-0.65mm I/O Expanders RoHS
VSSOP-8-0.65mmROHS3 CompliantActive
Remote 4-bit I2C and SMBus I/O expander with configuration registers
- Manufacturer
- TI
- Manufacturer part #
- PCA9536DGKR
- Store part #
- C2649389
- Package / case
- VSSOP-8-0.65mm
- Category
- I/O Expanders
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,057 in stock
#C2649389
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹158.56 | ₹158.56 |
| 10+ | ₹129.89 | ₹1,298.90 |
| 30+ | ₹114.03 | ₹3,420.90 |
| 100+ | ₹96.22 | ₹9,622.00 |
| 500+ | ₹88.40 | ₹44,200.00 |
| 1,000+ | ₹84.71 | ₹84,710.00 |
1 × ₹158.56
₹158.56
excl. GST
₹187.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
PCA9536DGKR
₹158.56 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interrupt Output
- No Interrupt Output
- Number of I/O
- 4
- Features
- Reset function;Built-in LED driver
- Voltage - Supply
- 2.3V~5.5V
- Quiescent Supply Current
- 1.8uA
- Current - Output High(IOH)
- 10mA
- Interface
- I2C;SMBus
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.067 g
Overview
This 4-bit expander for the two-wire bidirectional bus (I²C) is designed to operate from 2.3V to 5.5V. Through the I²C interface [Serial Clock (SCL), Serial Data (SDA)], it provides general-purpose remote I/O expansion for most microcontroller families. The PCA9536 contains 4-bit configuration (input or output selectable), input port, output port, and polarity inversion (active-high or active-low) registers. At power-up, the I/Os are configured as weak pull-up inputs to VCC. However, the system controller can enable the I/Os as inputs or outputs by writing to the I/O configuration bits. If no signal is externally applied to the PCA9536, the internal pull-up resistors cause the voltage level to be 1 or high. The data for each input or output is stored in the corresponding input port or output port register. The polarity of the input port register can be inverted using the polarity inversion register, and the system controller reads all registers. In the event of a timeout or other improper operation, the system controller can reset the PCA9536 by using the power-on reset function to place the registers in their default states and initialize the I2C/SMBus state machine. The outputs of this device (which are latched) have high current drive capability to directly drive LEDs, yet achieve low current consumption.
Applications
- Consumer Electronics
- Wearables
- Mobile Phones
- Gaming Consoles
- Servers
- Routers
Key features
- NanoFree package
- 1μA low standby current consumption (maximum)
- I2C to parallel port expander
- Operating supply voltage range: 2.3V to 5.5V
- 5V-tolerant I/O ports
- 400kHz fast I2C bus
- Input and output configuration registers
- Polarity inversion register
- Internal power-on reset
- No glitch on power-up
- All channels configured as inputs at power-up
- Noise filter on SCL/SDA inputs
- Latched outputs with maximum high-current drive capability for direct LED driving
- Latch-up performance exceeds 100mA per JESD 78 Class II
- ESD protection exceeds JESD 22 requirements
- 2000V Human Body Model (A114-A)
- 200V Machine Model (A115-A)
- 1000V Charged Device Model (C101)
