NXPDatasheet (PDF)

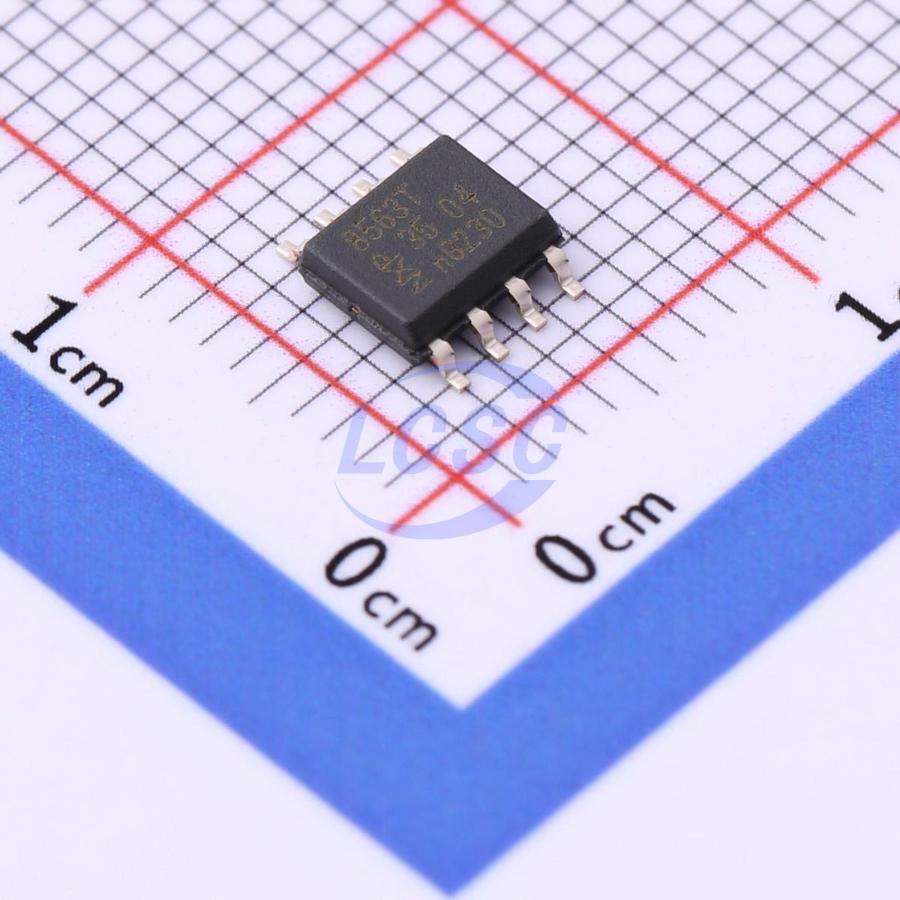

PCF8563T/F4,118
External Yes SO-8 Real Time Clocks RoHS
SO-8ROHS3 CompliantActive
Real-Time Clock/Calendar
- Manufacturer
- NXP
- Manufacturer part #
- PCF8563T/F4,118
- Store part #
- C80798
- Package / case
- SO-8
- Category
- Real Time Clocks
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,115 in stock
#C80798
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹405.67 | ₹2,028.35 |
| 50+ | ₹363.18 | ₹18,159.00 |
| 150+ | ₹336.51 | ₹50,476.50 |
| 500+ | ₹309.19 | ₹1,54,595.00 |
| 2,500+ | ₹296.83 | ₹7,42,075.00 |
| 5,000+ | ₹291.62 | ₹14,58,100.00 |
5 × ₹405.67
₹2,028.35
excl. GST
₹2,393.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
PCF8563T/F4,118
₹2,028.35 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 1V~5.5V
- Features
- Programmable clock output;Alarm function
- crystal oscillator
- External
- Alarm Output
- Yes
- Current - Supply
- 250nA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
Overview
PCF8563 is a low-power CMOS real-time clock/calendar IC featuring programmable clock output, interrupt output, and low-voltage detection. All addresses and data are transferred serially via a two-wire bidirectional I2C bus at a maximum rate of 400 kbps. The register address auto-increments after each read/write data byte.
Key features
- Year, month, day, day-of-week, hour, minute, and second timekeeping based on 32.768kHz crystal
- Century flag
- Clock operating voltage: 1.0 - 5.5V (room temperature)
- Low standby current; typical 0.25μA (VDD = 3.0V, Tamb = 25°C)
- 400kHz two-wire I2C bus interface (VDD = 1.8 - 5.5V)
- Programmable clock output (32.768kHz, 1.024kHz, 32Hz, and 1Hz)
- Alarm and timer functions
- Integrated crystal capacitors
- Internal power-on reset (POR)
- I2C bus slave address: read: A3h; write: A2h
- Open-drain interrupt pin
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PCF8563T(UMW)#C22396389UMW · SOP-8 | UMW | SOP-8 | 10,755 | ₹49.36 · 10,755 in stock | View |
 | PCF8563DRG4#C42441141HANSCHIP semiconductor · SOP-8 | HANSCHIP semiconductor | SOP-8 | 2,465 | ₹20.36 · 2,465 in stock | View |
 | YSN8563MS#C52176153YXC Crystal Oscillators · SOP-8 | YXC Crystal Oscillators | SOP-8 | 6,285 | ₹22.45 · 6,285 in stock | View |
 | PCF8563T/F4,118-TUDI#C55213776Tudi · SOP-8 | Tudi | SOP-8 | 1,000 | ₹51.82 · 1,000 in stock | View |
| GX8563Z#C53133432GXCAS · SOP-8 | GXCAS | SOP-8 | 435 | ₹39.54 · 435 in stock | View | |
