TIDatasheet (PDF)

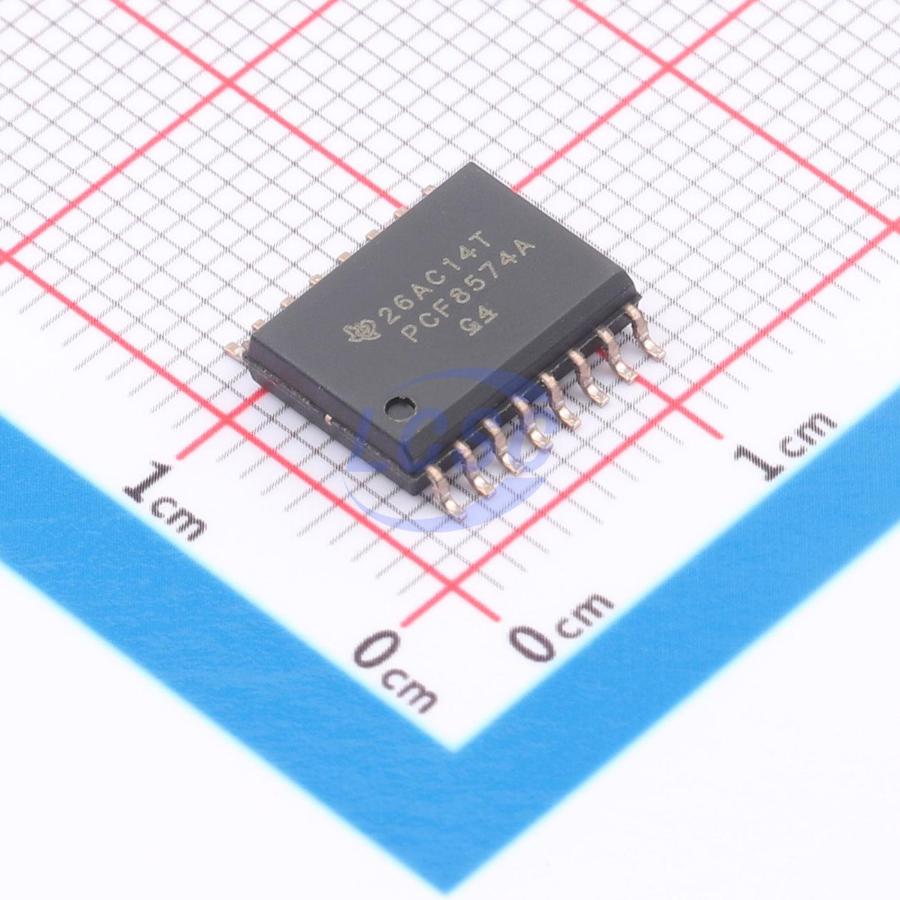

PCF8574ADWR
8 I2C SOIC-16-300mil I/O Expanders RoHS
SOIC-16-300milROHS3 CompliantActive
Remote 8-bit I/O expander for I2C bus
- Manufacturer
- TI
- Manufacturer part #
- PCF8574ADWR
- Store part #
- C2867583
- Package / case
- SOIC-16-300mil
- Category
- I/O Expanders
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,378 in stock
#C2867583
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹148.52 | ₹148.52 |
| 10+ | ₹131.18 | ₹1,311.80 |
| 30+ | ₹114.92 | ₹3,447.60 |
| 100+ | ₹103.00 | ₹10,300.00 |
| 500+ | ₹98.01 | ₹49,005.00 |
| 1,000+ | ₹95.63 | ₹95,630.00 |
1 × ₹148.52
₹148.52
excl. GST
₹175.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
PCF8574ADWR
₹148.52 for 1 + GST
Specifications
- Interrupt Output
- Interrupt Output
- Operating Temperature
- -40℃~+85℃
- Number of I/O
- 8
- Features
- Built-in LED driver;Cascade and address expansion;Reset function
- Voltage - Supply
- 2.5V~6V
- Quiescent Supply Current
- 10uA
- Current - Output High(IOH)
- 300uA
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.565 g
Overview
This 8-bit input/output (I/O) expander for the two-wire bidirectional bus (I²C) is designed to operate between 2.5V and 6V VCC. The PCF8574A device provides general-purpose remote I/O expansion for most microcontroller families through the I²C interface [serial clock (SCL), serial data (SDA)]. The device features an 8-bit quasi-bidirectional I/O port (P0–P7), which includes latched outputs with high-current drive capability for directly driving LEDs. Each quasi-bidirectional I/O can be used as an input or an output (without the need for a data direction control signal). Upon power-up, these I/Os are at a high level. In this mode, only a current source connected to VCC is active.
Applications
- Telecom shelters: filter units
- Servers
- Routers (telecom switching equipment)
- Personal computers
- Personal electronics
- Industrial automation
- Products with GPIO-constrained processors
Key features
- 10 μA low standby current consumption (maximum)
- I2C to parallel port expander
- Open-drain interrupt output
- Compatible with most microcontrollers
- Latched outputs with high-current drive capability for direct LED driving
- Latch-up performance exceeds 100mA per JESD 78 Class II
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| PCF8574ADWRG#C41378800HANSCHIP semiconductor · SOP-16W | HANSCHIP semiconductor | SOP-16W | 1,240 | ₹52.36 · 1,240 in stock | View | |
 | XL8574AT#C561270XINLUDA · SOP-16-300mil | XINLUDA | SOP-16-300mil | 262 | ₹76.18 · 262 in stock | View |
