TIDatasheet (PDF)

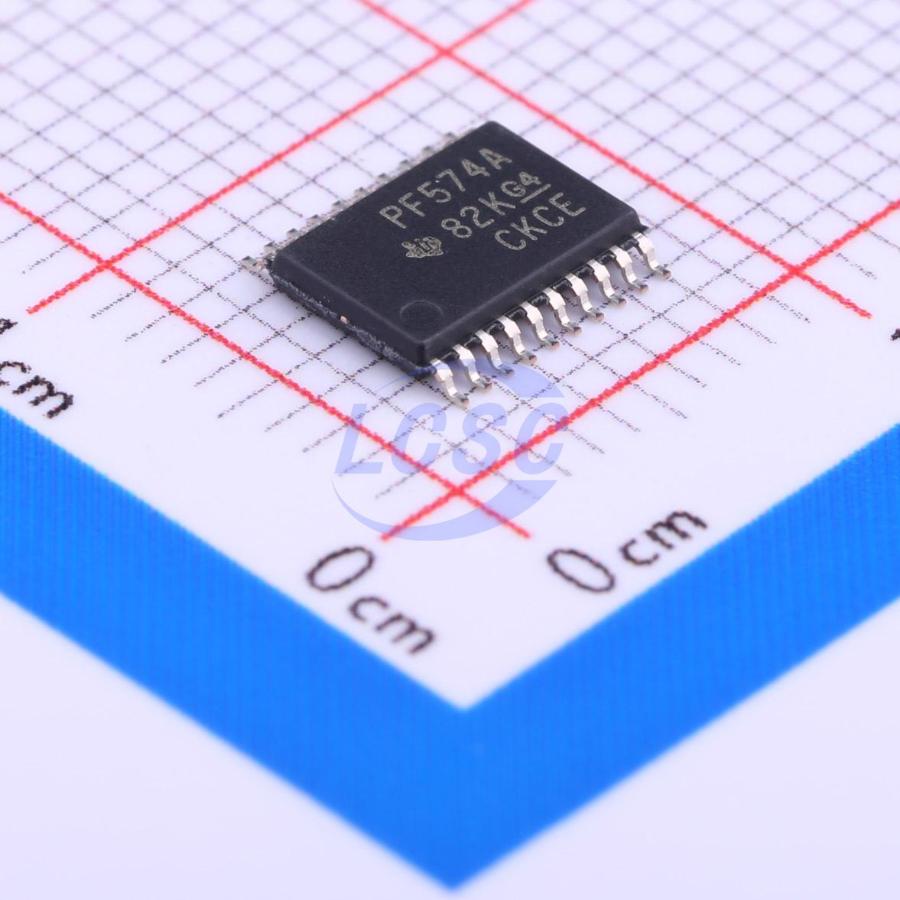

PCF8574APWR
8 I2C ETSSOP-20 I/O Expanders RoHS
ETSSOP-20ROHS3 CompliantActive
Remote 8-Bit I/O Expander for I²C Bus
- Manufacturer
- TI
- Manufacturer part #
- PCF8574APWR
- Store part #
- C94361
- Package / case
- ETSSOP-20
- Category
- I/O Expanders
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
978 in stock
#C94361
Stock & price checked 25 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹162.62 | ₹162.62 |
| 10+ | ₹145.05 | ₹1,450.50 |
| 30+ | ₹128.58 | ₹3,857.40 |
| 100+ | ₹116.44 | ₹11,644.00 |
| 500+ | ₹111.24 | ₹55,620.00 |
| 1,000+ | ₹108.84 | ₹1,08,840.00 |
1 × ₹162.62
₹162.62
excl. GST
₹191.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
PCF8574APWR
₹162.62 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interrupt Output
- Interrupt Output
- Number of I/O
- 8
- Features
- Built-in LED driver;Cascade and address expansion
- Voltage - Supply
- 2.5V~6V
- Quiescent Supply Current
- 10uA
- Current - Output High(IOH)
- 310uA
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.4 g
Overview
This 8-bit input/output (I/O) expander for the two-wire bidirectional bus (I2C) is designed to operate at VCC from 2.5V to 6V. The PCF8574A device provides general-purpose remote I/O expansion for most microcontroller families via the I2C interface [serial clock (SCL), serial data (SDA)]. The device features an 8-bit quasi-bidirectional I/O port (P0–P7), including latched outputs with high-current drive capability for direct LED driving. Each quasi-bidirectional I/O can be used as either an input or output without the need for a data direction control signal. At power-on, these I/Os are set to a high level. In this mode, only one current source connected to VCC is active.
Applications
- Telecom shelters: filter units
- Servers
- Routers (telecom switching equipment)
- Personal computers
- Personal electronic products
- Industrial automation
- Products with GPIO-constrained processors
Key features
- Low standby current consumption, 10μA maximum
- I2C to parallel port expander
- Open-drain interrupt output
- Compatible with most microcontrollers
- Latched outputs with high current drive capability for direct LED driving
- Latch-up performance exceeds 100mA, compliant with JESD78 Class II specifications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FCA8574T#C55318345Nyfea · TSSOP-20 | Nyfea | TSSOP-20 | 4,375 | ₹27.85 · 4,375 in stock | View |
| PCF8574APW#C2867171TI · TSSOP-20 | TI | TSSOP-20 | On request | ₹768.56 · 0 in stock | View | |
