TIDatasheet (PDF)
PCF8574DWR
8 I2C SOIC-16-300mil I/O Expanders RoHS
SOIC-16-300milROHS3 CompliantActive

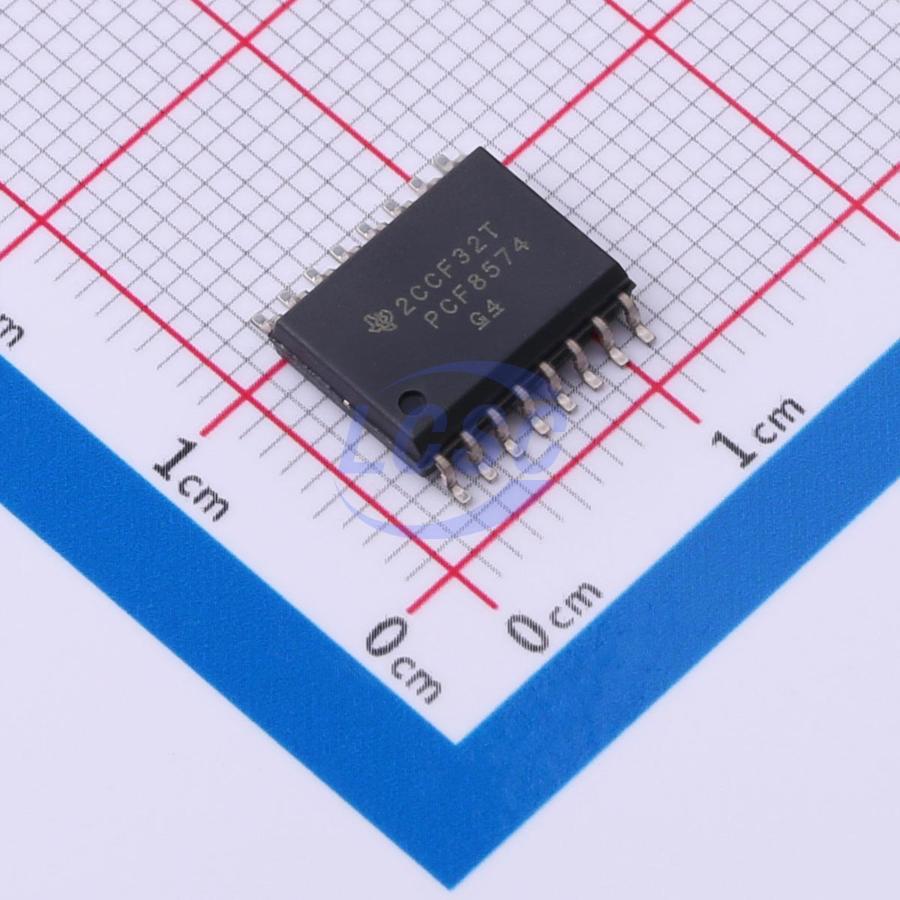

Remote 8-Bit I/O Expander for I²C Bus
- Manufacturer
- TI
- Manufacturer part #
- PCF8574DWR
- Store part #
- C2652271
- Package / case
- SOIC-16-300mil
- Category
- I/O Expanders
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,420 in stock
#C2652271
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹211.36 | ₹211.36 |
| 10+ | ₹176.13 | ₹1,761.30 |
| 30+ | ₹156.79 | ₹4,703.70 |
| 100+ | ₹126.99 | ₹12,699.00 |
| 500+ | ₹117.43 | ₹58,715.00 |
| 1,000+ | ₹112.87 | ₹1,12,870.00 |
1 × ₹211.36
₹211.36
excl. GST
₹249.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
PCF8574DWR
₹211.36 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interrupt Output
- Interrupt Output
- Number of I/O
- 8
- Features
- Reset function;Built-in LED driver;Cascade and address expansion
- Voltage - Supply
- 2.5V~6V
- Quiescent Supply Current
- 10uA
- Number of Supporting Devices
- 8
- Current - Output High(IOH)
- 30uA
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.2 g
Overview
This 8-bit input/output (I/O) expander for the two-line bidirectional bus (I²C) is designed for 2.5 V to 6 V VCC operation. The PCF8574 device provides general-purpose remote I/O expansion for most microcontroller families by way of the I²C interface [serial clock (SCL), serial data (SDA)]. The device features an 8-bit quasi-bidirectional I/O port (P0–P7), including latched outputs with high - current drive capability for directly driving LEDs. Each quasi-bidirectional I/O can be used as an input or output without the use of a data - direction control signal. At power on, the I/Os are high. In this mode, only a current source to VCC is active.
Applications
- Telecom Shelters: Filter Units
- Servers Routers (Telecom Switching Equipment)
- Personal Computers
- Personal Electronics
- Industrial Automation Products with GPIO - Limited Processors
Key features
- Low Standby - Current Consumption of 10 μA Max
- I²C to Parallel - Port Expander
- Open - Drain Interrupt Output
- Compatible With Most Microcontrollers
- Latched Outputs With High - Current Drive
- Capability for Directly Driving LEDs
- Latch - Up Performance Exceeds 100 mA Per JESD 78, Class II
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| PCF8574DWRG#C41378799HANSCHIP semiconductor · SOP-16W | HANSCHIP semiconductor | SOP-16W | 3,925 | ₹72.62 · 3,925 in stock | View | |
 | FCA8574S#C55318346Nyfea · SOW-16 | Nyfea | SOW-16 | 1,430 | ₹44.64 · 1,430 in stock | View |
 | PCF8574DW#C1542490TI · SOIC-16-300mil | TI | SOIC-16-300mil | On request | Price on request | Quote |
 | XL8574T#C561271XINLUDA · SOP-16-300mil | XINLUDA | SOP-16-300mil | On request | Price on request | Quote |
