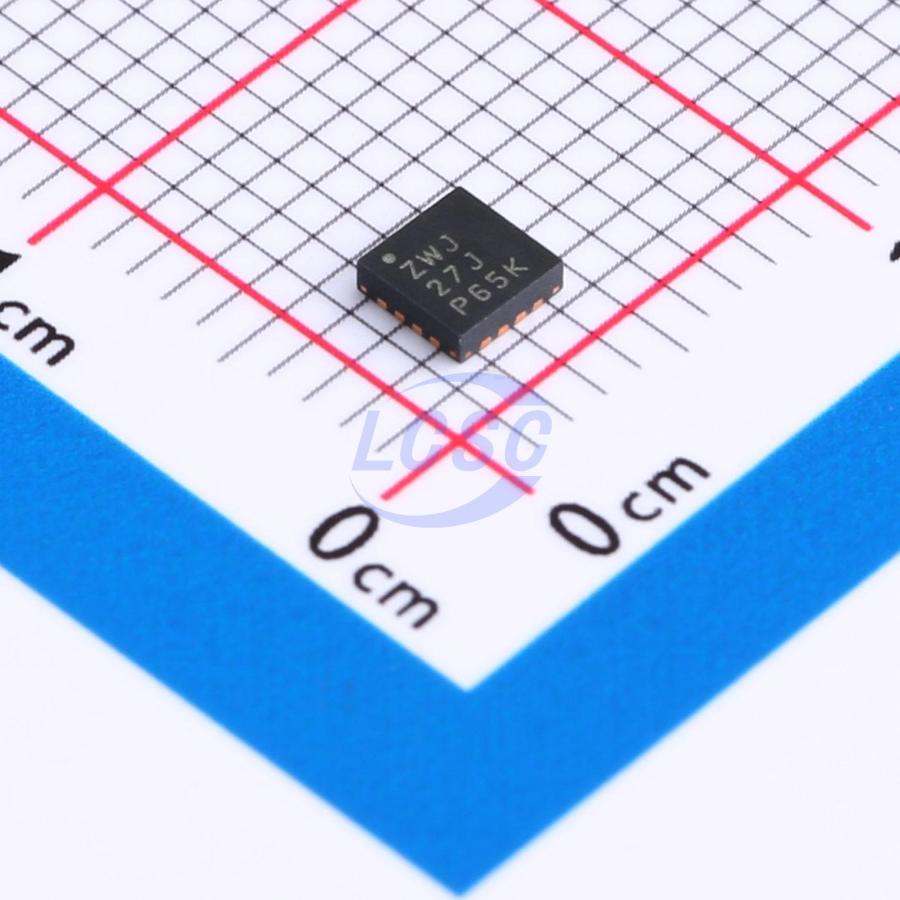

PCF8574RGTR
8 I2C WQFN-16-EP(3x3) I/O Expanders RoHS
WQFN-16-EP(3x3)ROHS3 CompliantActive
Remote 8-Bit I/O Expander for I²C Bus
- Manufacturer
- TI
- Manufacturer part #
- PCF8574RGTR
- Store part #
- C2652270
- Package / case
- WQFN-16-EP(3x3)
- Category
- I/O Expanders
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,645 in stock
#C2652270
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹172.11 | ₹172.11 |
| 10+ | ₹151.71 | ₹1,517.10 |
| 30+ | ₹137.17 | ₹4,115.10 |
| 100+ | ₹123.93 | ₹12,393.00 |
| 500+ | ₹117.85 | ₹58,925.00 |
| 1,000+ | ₹115.25 | ₹1,15,250.00 |
1 × ₹172.11
₹172.11
excl. GST
₹203.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PCF8574RGTR
₹172.11 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interrupt Output
- Interrupt Output
- Number of I/O
- 8
- Features
- Reset function;Built-in LED driver;Cascade and address expansion
- Voltage - Supply
- 2.5V~6V
- Quiescent Supply Current
- 10uA
- Number of Supporting Devices
- 8
- Current - Output High(IOH)
- 1mA
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.066 g
Overview
This 8-bit input/output (I/O) expander for the two-line bidirectional bus (I²C) is designed for 2.5 V to 6 V VCC operation. The PCF8574 device provides general-purpose remote I/O expansion for most microcontroller families by way of the I²C interface [serial clock (SCL), serial data (SDA)]. The device features an 8-bit quasi-bidirectional I/O port (P0–P7), including latched outputs with high - current drive capability for directly driving LEDs. Each quasi-bidirectional I/O can be used as an input or output without the use of a data - direction control signal. At power on, the I/Os are high. In this mode, only a current source to VCC is active.
Applications
- Telecom Shelters: Filter Units
- Servers Routers (Telecom Switching Equipment)
- Personal Computers
- Personal Electronics
- Industrial Automation Products with GPIO - Limited Processors
Key features
- Low Standby - Current Consumption of 10 μA Max
- I²C to Parallel - Port Expander
- Open - Drain Interrupt Output
- Compatible With Most Microcontrollers
- Latched Outputs With High - Current Drive
- Capability for Directly Driving LEDs
- Latch - Up Performance Exceeds 100 mA Per JESD 78, Class II
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FCA8574Q#C55318347Nyfea · WQFN-16(3x3) | Nyfea | WQFN-16(3x3) | 2,985 | ₹54.83 · 2,985 in stock | View |
