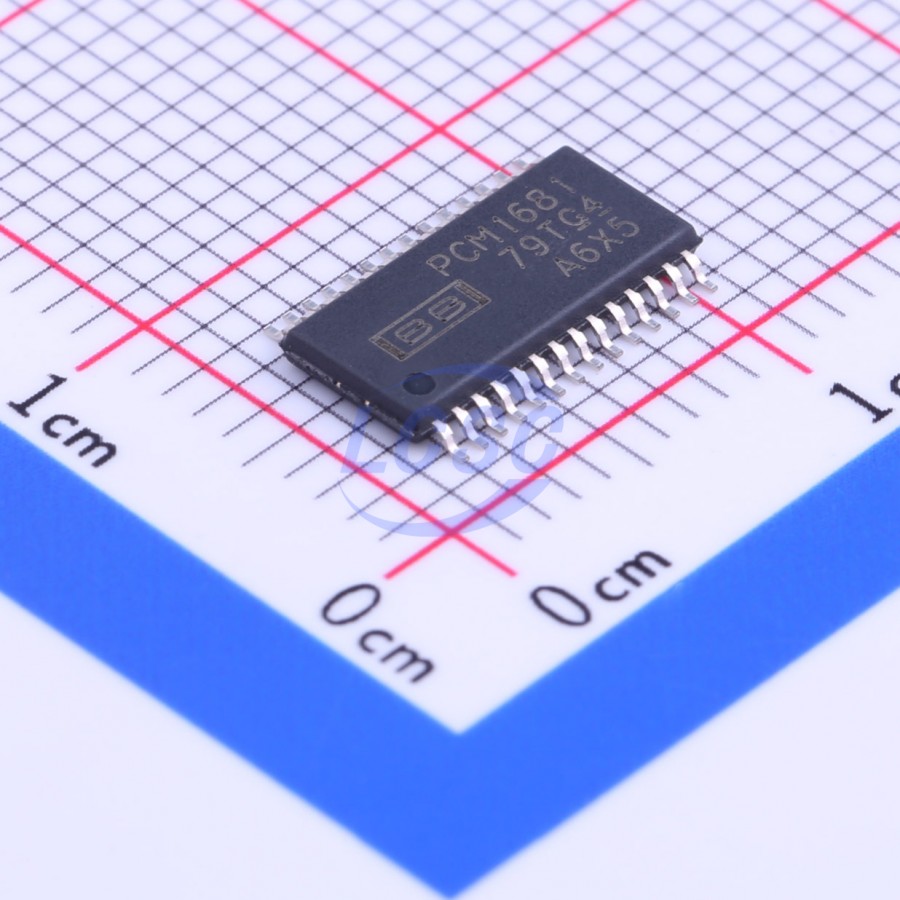

PCM1681PWPR
8 5V~5.5V TSSOP-28-EP ADCs/DACs - Special Purpose RoHS
TSSOP-28-EPROHS3 CompliantActive
24-Bit,192-kHz Sampling,Enhanced Multilevel Delta-Sigma,Eight-Channel Audio Digital-to-Analog Converter
- Manufacturer
- TI
- Manufacturer part #
- PCM1681PWPR
- Store part #
- C181571
- Package / case
- TSSOP-28-EP
- Category
- ADCs/DACs - Special Purpose
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,137 in stock
#C181571
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹334.30 | ₹334.30 |
| 10+ | ₹294.27 | ₹2,942.70 |
| 30+ | ₹266.23 | ₹7,986.90 |
| 100+ | ₹240.56 | ₹24,056.00 |
| 500+ | ₹228.60 | ₹1,14,300.00 |
| 1,000+ | ₹223.81 | ₹2,23,810.00 |
1 × ₹334.30
₹334.30
excl. GST
₹394.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
PCM1681PWPR
₹334.30 for 1 + GST
Specifications
- Features
- Integrated modulator;Power-on reset;Soft reset
- Number of Channels
- 8
- Operating Temperature
- -40℃~+85℃
- Interface
- SPI;I2C
- Voltage - Supply
- 5V~5.5V
- Quiescent Current
- 13mA
- Output Type
- Voltage Buffer
- Resolution (Bits)
- 24;200kHz
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.261 g
Overview
Applications
- Automotive audio external amplifiers
- Automotive audio AVN applications
- Integrated A/V receivers
- DVD movie and audio players
- HDTV receivers
- High-end PC DVD expansion cards
- Digital audio workstations
- Other multi-channel audio systems
Key features
- Automotive applications: PCM1681-Q1 24-bit resolution
- Analog performance:
- Dynamic range: 105 dB typical
- SNR: 105 dB typical
- THD+N: 0.002
- Full-scale output: 3.75 VPP typical
- 4x/8x oversampling interpolation filter:
- Stopband attenuation: -57 dB
- Passband ripple: ±0.015 dB
- Sampling frequency: 5 kHz to 200 kHz
- System clock: 128 fS, 192 fS, 256 fS, 384 fS, 512 fS, 768 fS, or 1152 fS with auto-detection
- Zero flag for selectable channel combinations
- Flexible mode control:
- SPI/I2C dual-mode serial port
- Parallel hardware control with 4 functions
- User-programmable features (via SPI/I2C):
- Flexible audio data formats:
- Right-justified, I2S, left-justified, TDM, DSP
- 16-bit and 24-bit audio data
- Digital attenuation: mode-selectable
- 0 dB to -63 dB in 0.5 dB steps
- 0 dB to -100 dB in 1 dB steps
- Soft mute
- Digital de-emphasis
- Digital filter rolloff: sharp or slow
- Oversampling mode
- User-programmable features (via hardware):
- Flexible audio data formats:
- Right-justified, I2S, left-justified, TDM
- Soft mute
- Digital de-emphasis
- Oversampling mode
- Supply voltage: analog 5V, digital 3.3V
- Package: 28-pin HTSSOP PowerPAD
- Operating temperature range:
- Consumer grade: -40℃ to 85℃
- Automotive audio grade: -40℃ to 105℃
