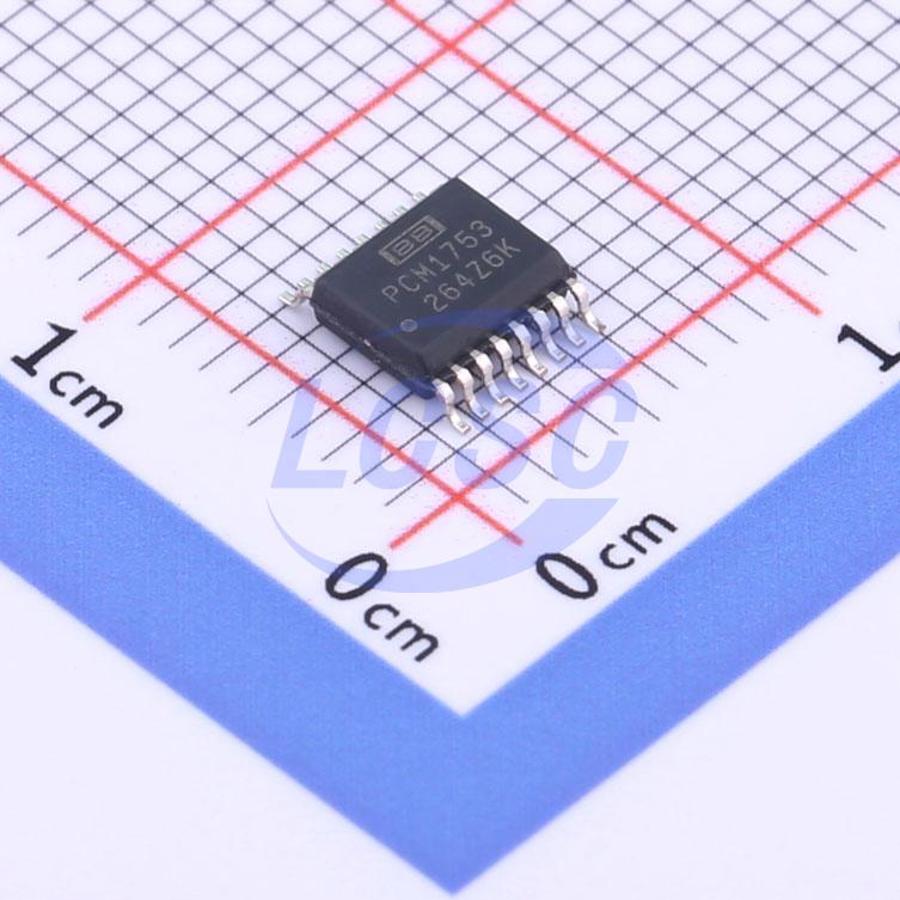

PCM1753DBQR

The PCM1753, PCM1754, and PCM1755 (PCM175x) devices are stereo DACs based on an enhanced Δ-Σ architecture. This enhanced architecture employs 4th-order noise shaping and 8× oversampling quantization to achieve excellent dynamic performance and improved clock jitter tolerance. Thanks to support for industry-standard audio data formats and both 16-bit and 24-bit data, PCM175x devices interface seamlessly with audio DSPs and decoder ICs. PCM175x devices can be controlled in hardware mode or through a comprehensive set of user-programmable functions accessible via a 3-wire serial control interface supporting register writes. The PCM1753 is pin-compatible with the PCM1748, PCM1742, and PCM1741, except for pin 5.

Applications

• A/V receivers
• HDTV receivers
• Automotive audio systems
• Applications requiring 24-bit audio

Key features

• 24-bit resolution analog performance (VCC = 5V)
• Dynamic range: 106dB
• SNR: 106dB (typical)
• THD+N: 0.002% (typical)
• Full-scale output: 4VPP (typical)
• 4× or 8× oversampling digital filter
• Stopband attenuation: –50dB
• Passband ripple: ±0.04dB
• Sampling frequency: 5kHz to 200kHz
• System clock: 128 fS, 192 fS, 256 fS, 384 fS, 512 fS, 768 fS, 1152 fS with auto-detection
• Hardware control (PCM1754)
• I2S and 16-bit word, right-justified
• 44.1kHz digital de-emphasis
• Soft mute
• Zero flag for L/R channel common-mode output
• Supply: 5V single supply
• Small 16-lead SSOP package, lead-free
