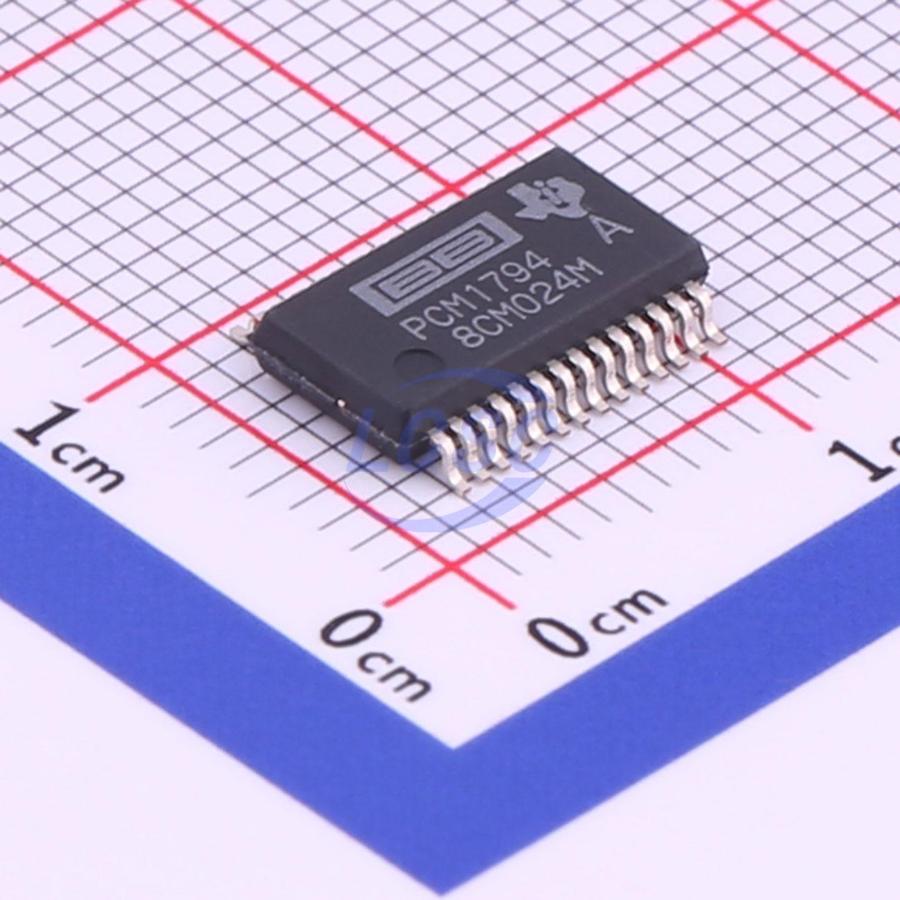

PCM1794ADBR
2 I2S 3V~5.25V SSOP-28-208mil ADCs/DACs - Special Purpose RoHS
SSOP-28-208milROHS3 CompliantActive
24-bit, 192kHz sampling, advanced segmented, audio stereo digital-to-analog converter
- Manufacturer
- TI
- Manufacturer part #
- PCM1794ADBR
- Store part #
- C783606
- Package / case
- SSOP-28-208mil
- Category
- ADCs/DACs - Special Purpose
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,049 in stock
#C783606
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹635.70 | ₹635.70 |
| 10+ | ₹519.25 | ₹5,192.50 |
| 30+ | ₹463.63 | ₹13,908.90 |
| 100+ | ₹407.58 | ₹40,758.00 |
| 500+ | ₹381.51 | ₹1,90,755.00 |
| 1,000+ | ₹369.99 | ₹3,69,990.00 |
1 × ₹635.70
₹635.70
excl. GST
₹750.13 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
PCM1794ADBR
₹635.70 for 1 + GST
Specifications
- Features
- Differential output;Digital filtering
- Number of Channels
- 2
- Interface
- I2S
- Operating Temperature
- -25℃~+85℃
- ChipType
- Audio Decoder
- Voltage - Supply
- 3V~5.25V
- Resolution (Bits)
- 24;200kHz
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.337 g
Overview
The PCM1794A is a monolithic CMOS IC comprising a stereo DAC and supporting circuitry in a compact 28-pin SSOP package. The data converter employs an advanced segmented DAC architecture, delivering excellent dynamic performance and enhanced clock jitter immunity. The PCM1794A provides balanced current outputs, allowing users to externally optimize analog performance. Supports sampling rates up to 200kHz.
Applications
- A/V receivers
- DVD players
- Musical instruments
- Automotive audio systems
- Other applications requiring 24-bit audio
Key features
- 24-bit resolution analog performance
- Dynamic range: 132dB (9V RMS, mono); 129dB (4.5V RMS, stereo); 127dB (2V RMS, stereo)
- THD+N: 0.0004%
- Differential current output: 7.8mA p-p
- 8× oversampling digital filter: stopband attenuation: –130dB; passband ripple: ±0.00001dB
- Sampling frequency: 10kHz to 200kHz
- System clock: 128, 192, 256, 384, 512, or 768fS with auto-detect
- Accepts 16-bit and 24-bit audio data
- PCM data formats: standard, I2S, and left-justified
- Interface for external digital filter or DSP
- Digital de-emphasis
- Digital filter rolloff: sharp or slow
- Soft mute zero flag
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PCM1794ADB#C1540093TI · SSOP-28 | TI | SSOP-28 | 3 | ₹2,488.17 · 3 in stock | View |
 | PCM1794AQDBRQ1#C2864050TI · SSOP-28 | TI | SSOP-28 | On request | ₹3,985.26 · 0 in stock | View |
 | PCM1798DBR#C529549TI · SSOP-28-208mil | TI | SSOP-28-208mil | 137 | ₹481.97 · 137 in stock | View |
 | PCM1796DBR#C201588TI · SSOP-28 | TI | SSOP-28 | 88 | ₹722.58 · 88 in stock | View |
| PCM1791ADBR#C2651630TI · SSOP-28 | TI | SSOP-28 | 10 | ₹840.41 · 10 in stock | View | |
