DIODESDatasheet (PDF)

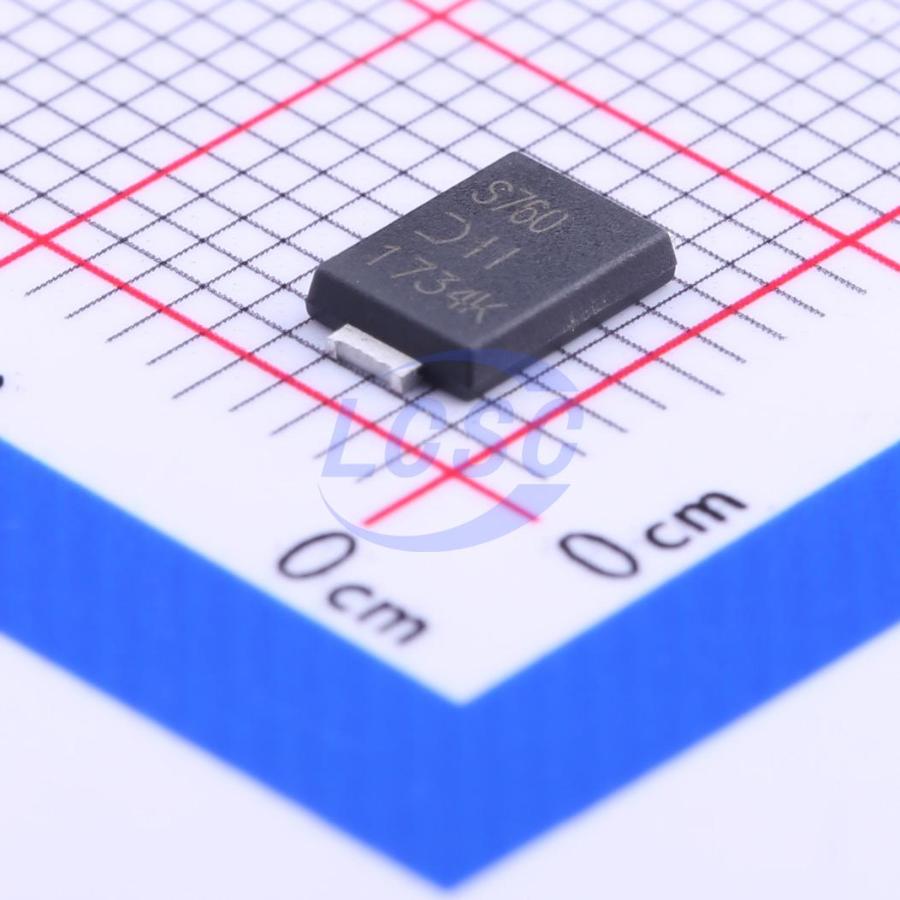

PDS760-13
1 Independent 60V 620mV@7A 7A Power-DI-5 Single Diodes RoHS
Power-DI-5ROHS3 CompliantActive
Voltage： 60V Current： 7A
- Manufacturer
- DIODES
- Manufacturer part #
- PDS760-13
- Store part #
- C96113
- Package / case
- Power-DI-5
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,198 in stock
#C96113
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹177.24 | ₹177.24 |
| 10+ | ₹158.71 | ₹1,587.10 |
| 30+ | ₹141.27 | ₹4,238.10 |
| 100+ | ₹128.41 | ₹12,841.00 |
| 500+ | ₹122.96 | ₹61,480.00 |
| 1,000+ | ₹104.86 | ₹1,04,860.00 |
1 × ₹177.24
₹177.24
excl. GST
₹209.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PDS760-13
₹177.24 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 620mV@7A
- Reverse Leakage Current (Ir)
- 200uA@60V
- Non-Repetitive Peak Forward Surge Current
- 275A
- Current - Rectified
- 7A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.21 g
Overview
Applications
- High-Frequency Inverters
- Free Wheeling
- Polarity Protection
Key features
- Guard Ring Die Construction for Transient Protection
- Low Power Loss, High Efficiency
- Low Reverse Leakage Current
- For Use in High-Frequency Inverters, Free Wheeling, and Polarity Protection Applications
- High Forward Surge Current Capability
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PDS760Q-13#C397962DIODES · Power-DI-5 | DIODES | Power-DI-5 | 4,876 | ₹133.65 · 4,876 in stock | View |
 | NSB1560L#C50338735BORN · TO-277B | BORN | TO-277B | 1,740 | ₹26.72 · 1,740 in stock | View |
 | 15L100SP#C5764163YFW · TO-277 | YFW | TO-277 | 175 | ₹44.41 · 175 in stock | View |
 | SP2080L#C20199373DOWO · TO-277B | DOWO | TO-277B | 365 | ₹31.91 · 365 in stock | View |
 | SS10P6-M3/86A#C2927414VISHAY · TO-277A | VISHAY | TO-277A | 1,626 | ₹77.90 · 1,626 in stock | View |
