TECH PUBLICDatasheet (PDF)

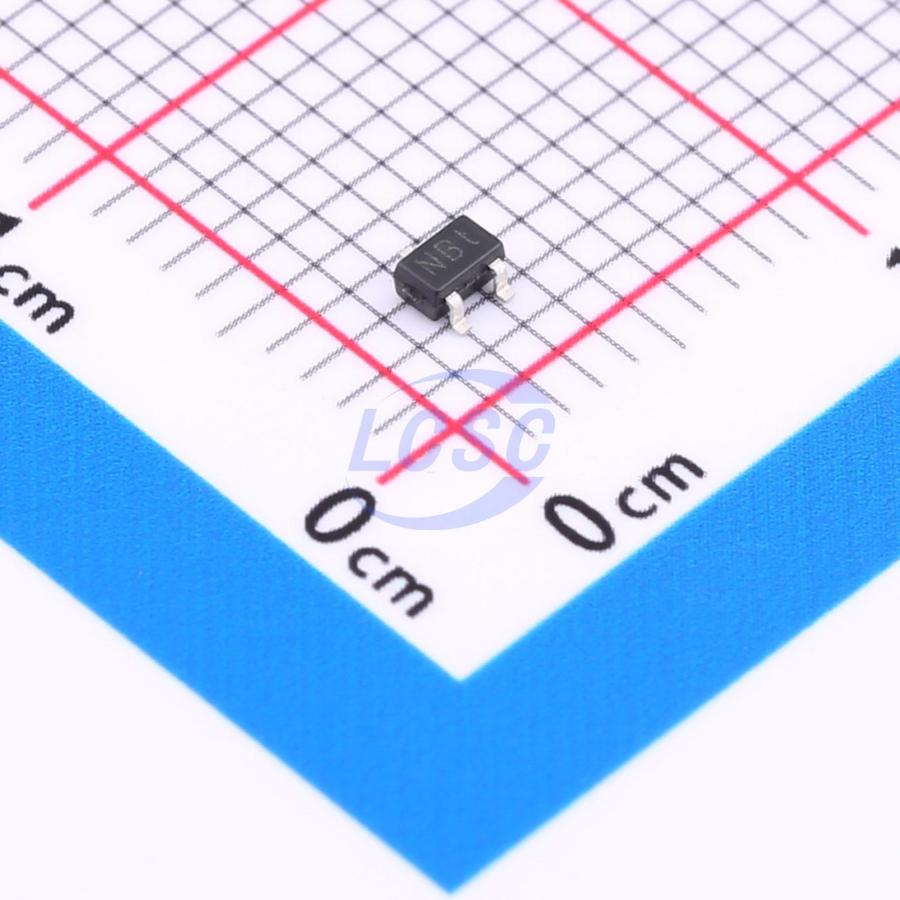

PESD2CANFD24L-U
4A@8/20us Ipp ESD DIODE SOT-323
SOT-323RoHSActive
ESD DIODE 24VWM SOT-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PESD2CANFD24L-U
- Store part #
- C19268141
- Package / case
- SOT-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
980 in stock
#C19268141
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.64 | ₹66.40 |
| 100+ | ₹5.21 | ₹521.00 |
| 300+ | ₹4.50 | ₹1,350.00 |
| 3,000+ | ₹3.97 | ₹11,910.00 |
| 6,000+ | ₹3.55 | ₹21,300.00 |
| 9,000+ | ₹3.33 | ₹29,970.00 |
10 × ₹6.64
₹66.40
excl. GST
₹78.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PESD2CANFD24L-U
₹66.40 for 10 + GST
Specifications
- Clamping Voltage
- 40V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 26V
- type
- ESD
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
Applications
- CAN Bus Protection
- Automotive Appllcatrons
Key features
- Ultra low leakage: nA level
- Operating voltage: 24V
- Low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
- IEC61000 - 4 - 5 (Lightning) 4A (8/20μs)
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPE2462BC3#C2901317TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 970 | ₹13.26 · 970 in stock | View |
 | PESDCAN04-2BWY#C2923356TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,630 | ₹7.86 · 2,630 in stock | View |
 | DESD1CAN2WQ-TP#C54194945TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 3,000 | ₹10.69 · 3,000 in stock | View |
 | PESD2IVN24-UX(TP)#C54561882TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,940 | ₹10.62 · 2,940 in stock | View |
