VBsemi ElecDatasheet (PDF)

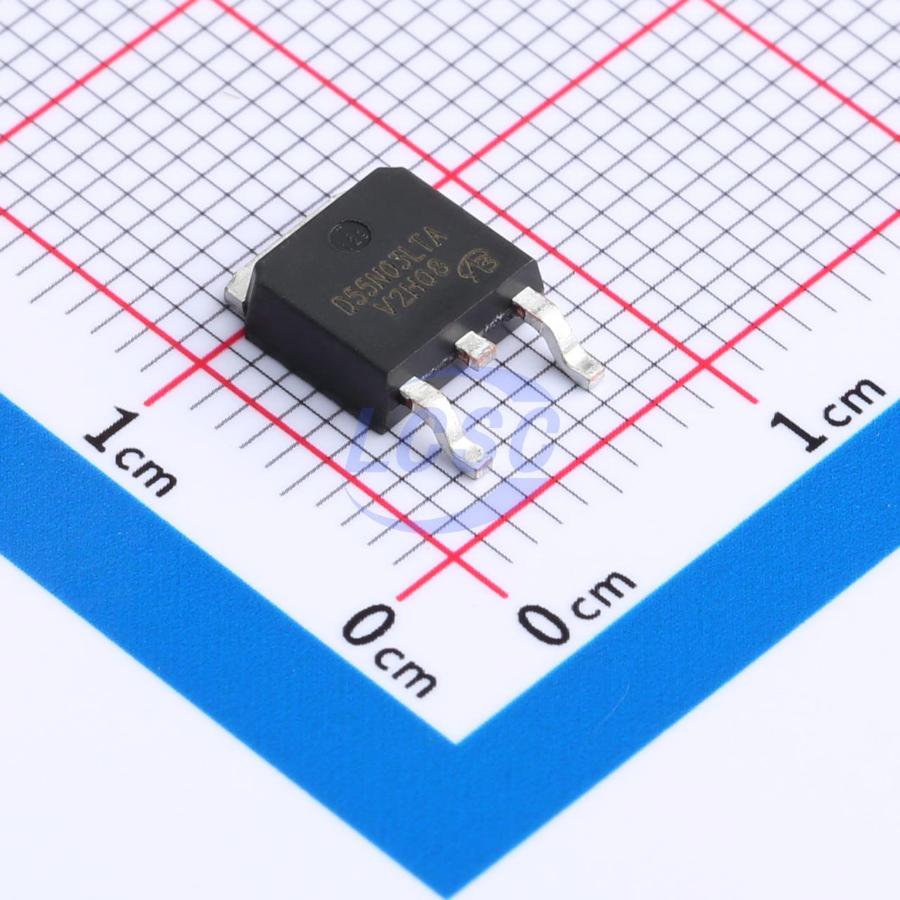

PHD55N03LT-VB
N-Channel 30V 25.8A 3.75W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 30V 25.8A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- PHD55N03LT-VB
- Store part #
- C5179542
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
48 in stock
#C5179542
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.24 | ₹55.24 |
| 10+ | ₹44.06 | ₹440.60 |
| 30+ | ₹39.33 | ₹1,179.90 |
| 100+ | ₹33.31 | ₹3,331.00 |
| 500+ | ₹29.45 | ₹14,725.00 |
| 1,000+ | ₹27.73 | ₹27,730.00 |
1 × ₹55.24
₹55.24
excl. GST
₹65.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
PHD55N03LT-VB
₹55.24 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 525pF
- Current - Continuous Drain(Id)
- 25.8A
- Ciss-Input Capacitance
- 2.201nF
- Pd - Power Dissipation
- 3.75W
- Reverse Transfer Capacitance (Crss)
- 270pF
- RDS(on)
- 5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 31.5nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.42 g
Overview
Applications
- OR gate
- Server
- DC/DC
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- Compliant with EU RoHS Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FQD60N03L-VB#C5355768VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 24 | ₹54.76 · 24 in stock | View |
 | AOD4144-VB#C709902VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 2 | ₹60.92 · 2 in stock | View |
 | NTD4860NT4G-VB#C725132VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 46 | ₹53.14 · 46 in stock | View |
 | VBZE50N03#C700649VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 40 | ₹59.24 · 40 in stock | View |
 | IRFR3103TRPBF-VB#C4355060VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 98 | ₹52.93 · 98 in stock | View |
