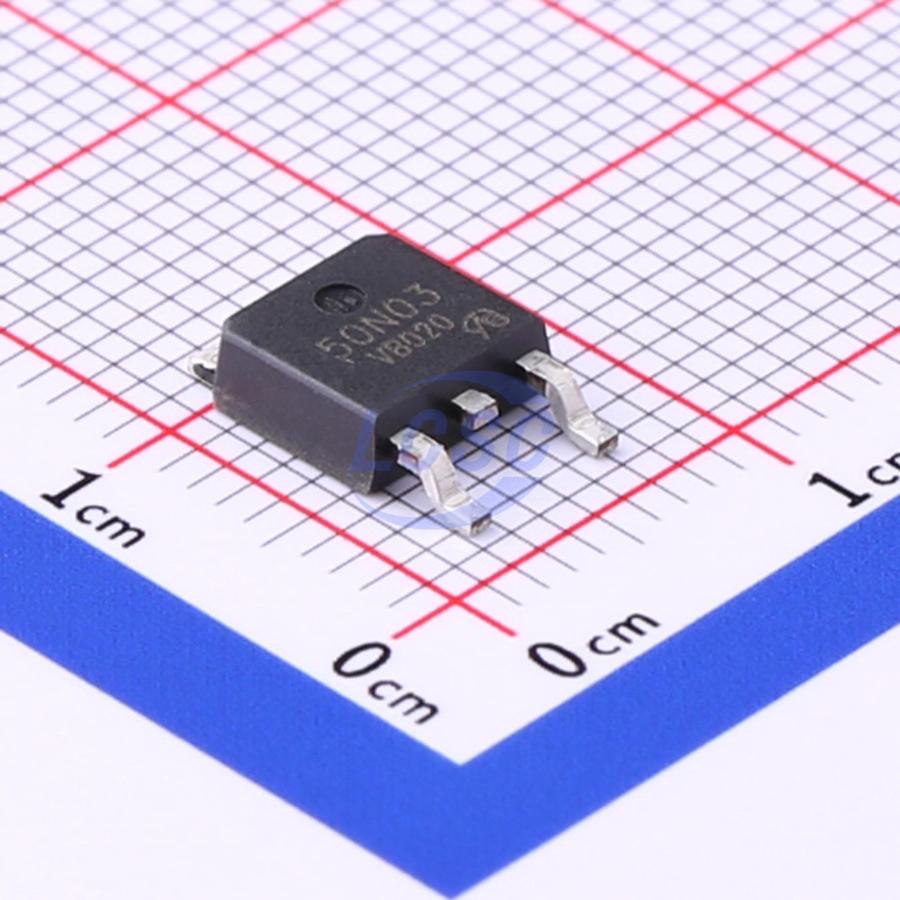

VBZE50N03
N-Channel 30V 25.8A 3.75W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 30V 25.8A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- VBZE50N03
- Store part #
- C700649
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C700649
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.24 | ₹59.24 |
| 10+ | ₹46.85 | ₹468.50 |
| 30+ | ₹41.60 | ₹1,248.00 |
| 100+ | ₹35.09 | ₹3,509.00 |
| 500+ | ₹31.94 | ₹15,970.00 |
| 1,000+ | ₹30.26 | ₹30,260.00 |
1 × ₹59.24
₹59.24
excl. GST
₹69.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
VBZE50N03
₹59.24 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 525pF
- Current - Continuous Drain(Id)
- 25.8A
- Ciss-Input Capacitance
- 2.201nF
- Pd - Power Dissipation
- 3.75W
- Reverse Transfer Capacitance (Crss)
- 270pF
- RDS(on)
- 10mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 30nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.412 g
Overview
Applications
- OR Gate-Server-DC-DC Converter
Key features
- Trench power MOSFET
- 100% gate resistance (Rg) and unclamped inductive switching (UIS) tested
- Compliant with EU RoHS Directive 2011/65/EU
