VBsemi ElecDatasheet (PDF)

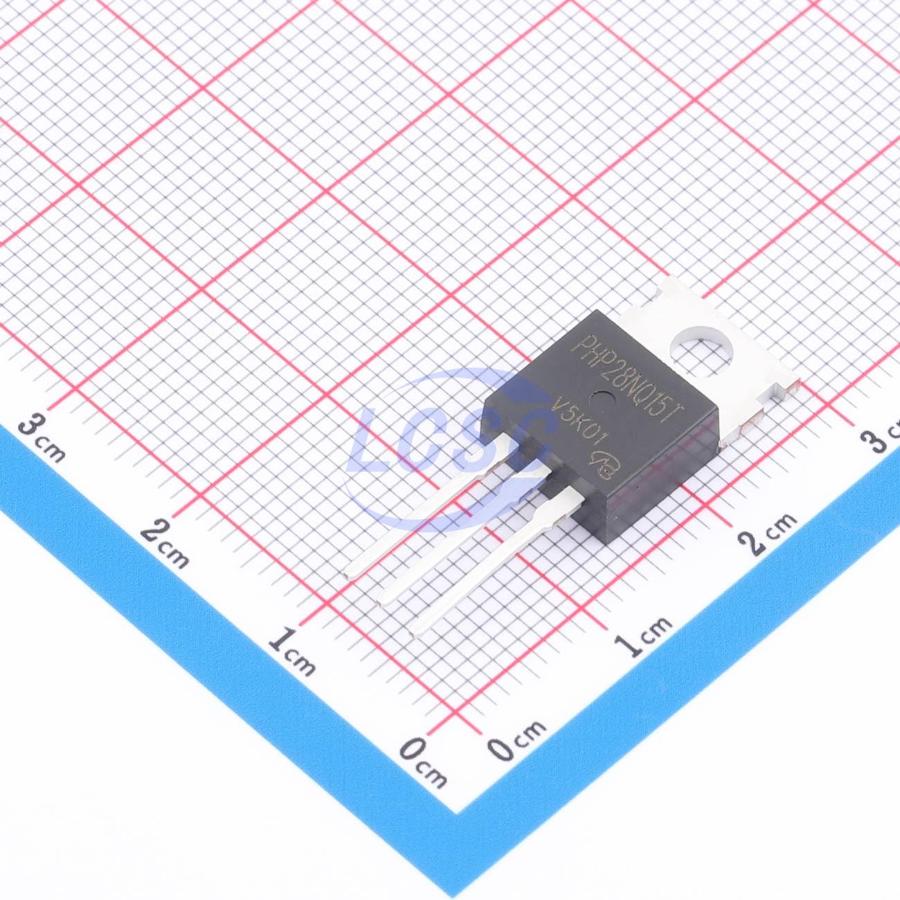

PHP28NQ15T,127-VB
107W 150V 20A 75mΩ@10V 1 N-channel N-Channel TO-220AB Single FETs, MOSFETs
TO-220ABRoHSActive
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- PHP28NQ15T,127-VB
- Store part #
- C52191073
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C52191073
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹135.63 | ₹135.63 |
| 10+ | ₹112.12 | ₹1,121.20 |
| 50+ | ₹100.36 | ₹5,018.00 |
| 100+ | ₹78.81 | ₹7,881.00 |
| 500+ | ₹71.84 | ₹35,920.00 |
| 1,000+ | ₹68.15 | ₹68,150.00 |
1 × ₹135.63
₹135.63
excl. GST
₹160.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
PHP28NQ15T,127-VB
₹135.63 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 165pF
- Ciss-Input Capacitance
- 1.09nF
- Pd - Power Dissipation
- 107W
- Drain to Source Voltage
- 150V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 20A
- Reverse Transfer Capacitance (Crss)
- 82pF
- RDS(on)
- 75mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 27nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.22 g
Overview
Key features
- Trench power MOSFET
- Low thermal resistance package
- 100% Rg and UIS tested
- RoHS compliant
