DIODESDatasheet (PDF)

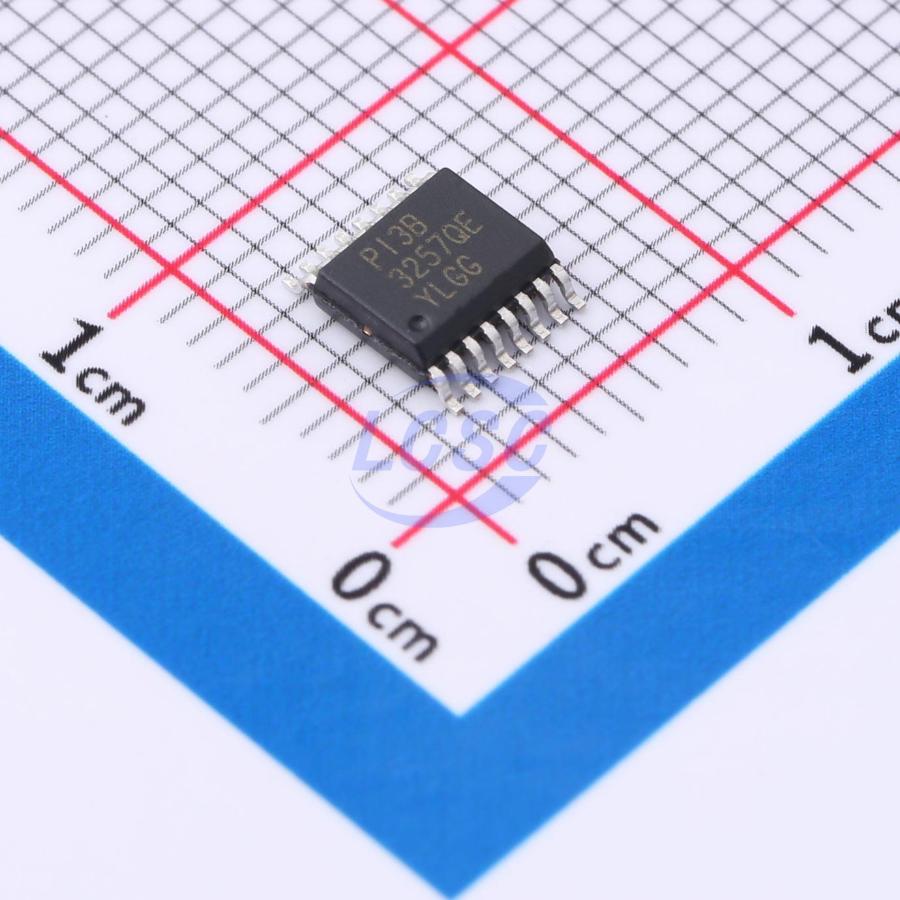

PI3B3257QEX
3V~3.6V 8/4 3uA 0.25ns@3.3V,50pF QSOP-16-150mil Signal Switches, Multiplexers, Decoders RoHS
QSOP-16-150milROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- PI3B3257QEX
- Store part #
- C2653287
- Package / case
- QSOP-16-150mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,559 in stock
#C2653287
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹39.33 | ₹39.33 |
| 10+ | ₹34.35 | ₹343.50 |
| 30+ | ₹32.39 | ₹971.70 |
| 100+ | ₹29.56 | ₹2,956.00 |
| 500+ | ₹28.47 | ₹14,235.00 |
| 1,000+ | ₹27.82 | ₹27,820.00 |
1 × ₹39.33
₹39.33
excl. GST
₹46.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
PI3B3257QEX
₹39.33 for 1 + GST
Specifications
- Voltage - Supply
- 3V~3.6V
- Number of Channels
- 8/4
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 3uA
- Propagation Delay
- 0.25ns@3.3V,50pF
- Function
- Tri-state output;Output enable high-impedance
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.232 g
Overview
The PI3B3257 is a 3.3 Volt, Quad 2:1 multiplexer/demultiplexer with three-state outputs that is pinout and function compatible with the PI74FCT257T, 74F257, and 74ALS/AS/LS257. Inputs can be connected to outputs with low On-Resistance (5Ω) with no additional ground bounce noise or propagation delay.
Key features
- ¼Near-Zero propagation delay
- 5Ω switches connect inputs to outputs
- ¼Fast Switching Speed: 4.8ns max.
- ¼Ultra-Low Quiescent Power: 0.1μA typical
- ¼Pin compatible with 74 series 257 logic devices
- Packaging (Pb-free & Green avaliable):
- 16-pin, QSOP (Q)
- 16-pin, SOIC (W)
- 16-pin, TSSOP (L)
- 16-pin, UQFN (ZHD)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PI3B3257QE#C1547246DIODES · QSOP-16-150mil | DIODES | QSOP-16-150mil | 37 | ₹48.79 · 37 in stock | View |
 | PI3B3257QEX-2017#C3233442DIODES · SSOP-16-150mil | DIODES | SSOP-16-150mil | 55 | ₹97.68 · 55 in stock | View |
