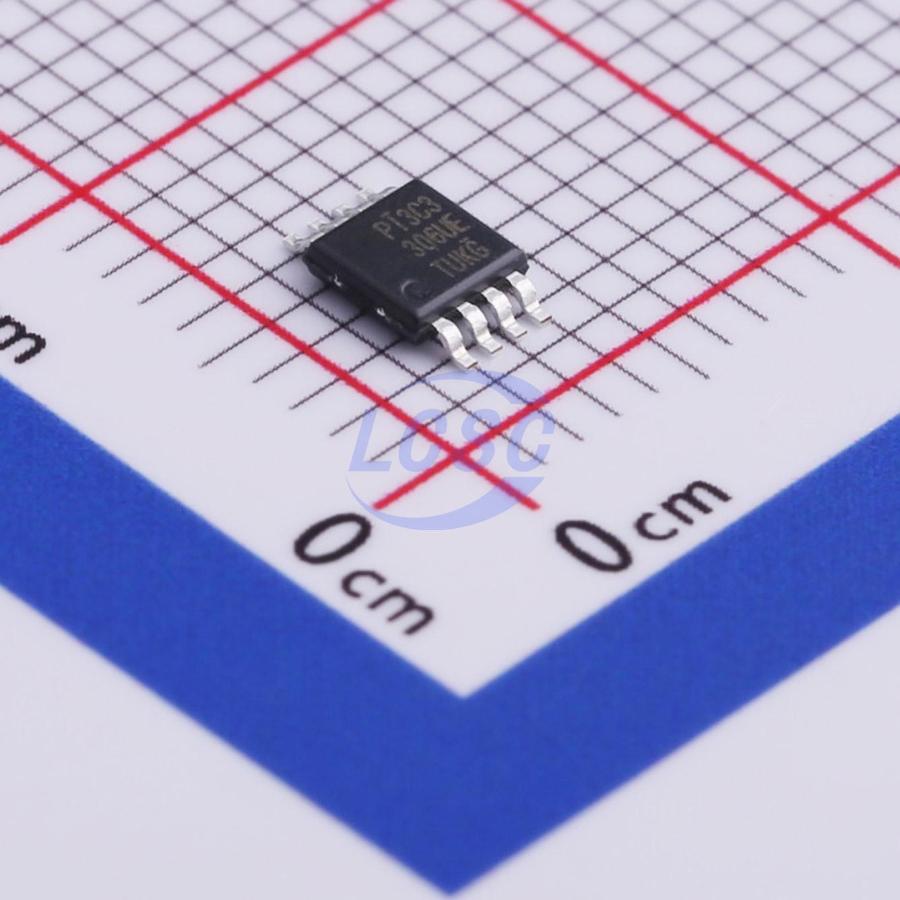

DIODES

PI3C3306UEX

15Ω 2.5V~3.3V 2 250ps Hot-swap protection MSOP-8 Signal Switches, Multiplexers, Decoders RoHS

MSOP-8ROHS3 CompliantActive

High-Bandwidth, Hot-Insertion, 2-Bit, 2-Port Bus Switch w/ Individual Enables

Manufacturer: DIODES
Manufacturer part #: PI3C3306UEX
Store part #: C508243
Package / case: MSOP-8
Category: Signal Switches, Multiplexers, Decoders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,494 in stock

#C508243

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹57.71	₹57.71
10+	₹51.52	₹515.20
30+	₹48.51	₹1,455.30
100+	₹45.31	₹4,531.00
500+	₹43.61	₹21,805.00
1,000+	₹42.75	₹42,750.00

Quantity (min 1)

1 × ₹57.71

₹57.71

excl. GST

₹68.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

PI3C3306UEX

₹57.71 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Ron: 15Ω
Voltage - Supply: 2.5V~3.3V
Number of Channels: 2
Operating Temperature: -40℃~+85℃
Con: 10pF
Propagation Delay: 250ps
Function: Hot-swap protection

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.059 g

Overview

2.5 volt or 3.3 volt, 2-bit bus switches designed with fast individual enables. When enabled via the associated Bus Enable (BE (overline)) pin, the “A” pin is directly connected to the “B” pin for that particular gate. The bus switch introduces no additional propagation delay or additional ground bounce noise. The PI3C3306 device has active LOW enables, and the PI3C3305 has active HIGH enables. It is very useful in switching signals that have high bandwidth (>400 MHz).
