DIODESDatasheet (PDF)

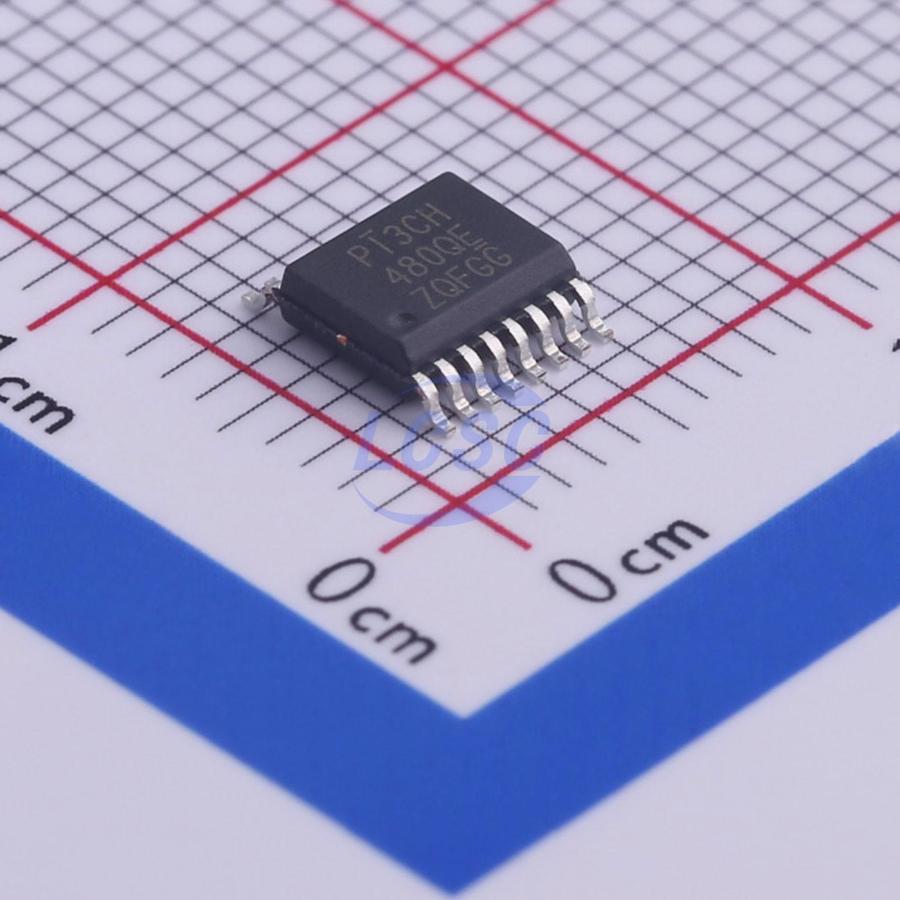

PI3CH480QEX
8/4 2.25V~3.6V 1.5mA 0.3ns@3.3V,10pF QSOP-16-150mil Signal Switches, Multiplexers, Decoders RoHS
QSOP-16-150milROHS3 CompliantActive
4-Channel 2:1 Mux/DeMux, Enable, High-Bandwidth, Hot Plug
- Manufacturer
- DIODES
- Manufacturer part #
- PI3CH480QEX
- Store part #
- C445544
- Package / case
- QSOP-16-150mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,075 in stock
#C445544
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.42 | ₹227.10 |
| 50+ | ₹35.60 | ₹1,780.00 |
| 150+ | ₹31.39 | ₹4,708.50 |
| 500+ | ₹26.14 | ₹13,070.00 |
| 2,500+ | ₹23.81 | ₹59,525.00 |
| 5,000+ | ₹22.41 | ₹1,12,050.00 |
5 × ₹45.42
₹227.10
excl. GST
₹267.98 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
PI3CH480QEX
₹227.10 for 5 + GST
Specifications
- Number of Channels
- 8/4
- Voltage - Supply
- 2.25V~3.6V
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1.5mA
- Propagation Delay
- 0.3ns@3.3V,10pF
- Function
- Hot-swap protection;Tri-state output;Output enable high-impedance
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.113 g
Overview
The PI3CH480 is a 4-channel, 2:1 Multiplexer/De-multiplexer with tri-state outputs. The switch introduces no additional ground bounce noise or propagation delay. The PI3CH480 device is very useful in switching signals that have high bandwidth (500 MHz).
Key features
- Near-Zero Propagation Delay
- 5Q Switches Connect Inputs to Outputs
- High Signal Passing Bandwidth (500MHz)
- Beyond Rail-to-Rail Switching
- 0 to 5V Switching with 3.3V Power Supply
- 0 to 3.3V Switching with 2.5V Power Supply
- 5V I/O Tolerant with Supply in OFF and ON State
- 1.8V, 2.5V and 3.3V Supply Voltage Operation
- Hot Insertion Capable
- Industrial Operating Temperature: -40°C to +85°C
- 8kV ESD Protection (Human Body Model)
- Latch-up Performance: >200mA per JESD17
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
