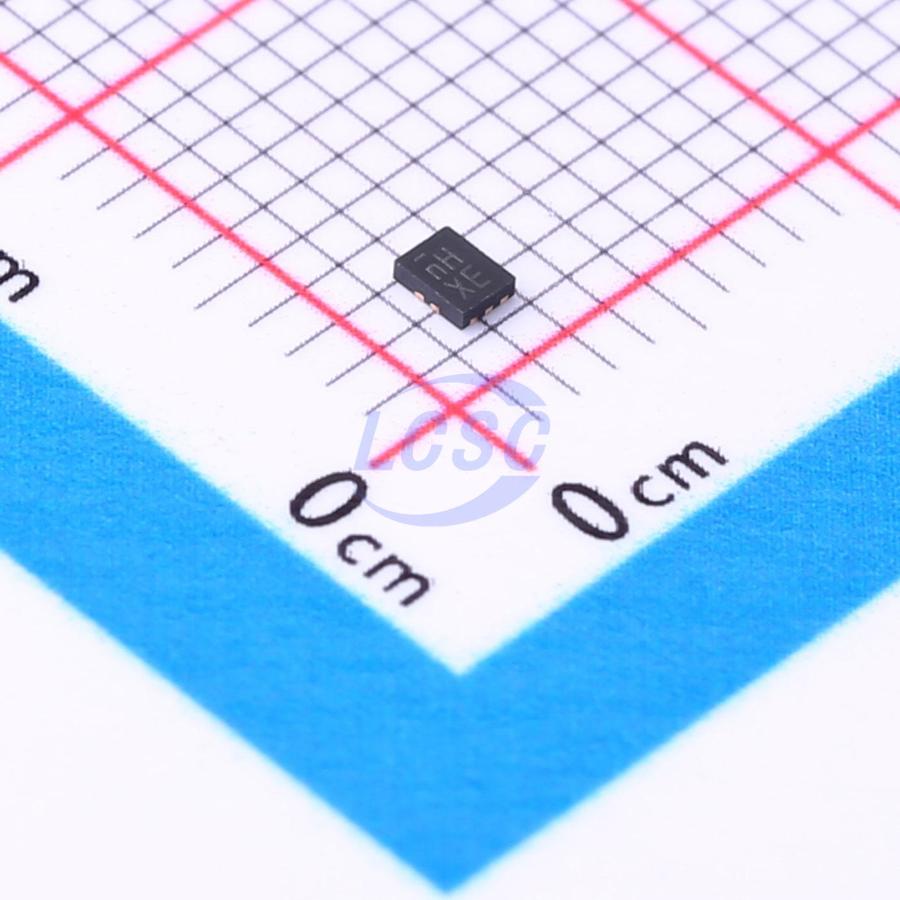

PI3USB42ZMEX

The PI3USB42 is a single differential channel 2:1 multiplexer/demultiplexer USB 2.0 Switch. Industry leading advantages include a propagation delay of less than 250ps, resulting from its low channel resistance and 1/O capacitance. The device multiplexes differential outputs from a USB Host device to one of two corresponding outputs. The switch is bidirectional and offers little or no attenuation of the high - speed signals at the outputs. It is designed for low bit - to - bit skew, high channel - to - channel noise isolation and is compatible with various standards, such as High Speed USB 2.0 (480 Mb/s). The PI3USB42 offers overvoltage protection per the USB2.0 specification. With the chip powered on or off, all I/O pins can withstand a short to Vbus (5V +/ - 10%). If VDD = 0V, the I/Os can still have signals present, and the signal will NOT leak through to VDD. If the Vin (D+/-) is 0.6V greater than VDD, USB42 will turn off the switch between Input (D+/-) and output (D+A/B and D - A/B)

Applications

• Route signals for USB 2.0
• Cell phone, PDA, Digital camera and Notebook
• LCD Monitor, TV, Set - top box
• Portable device

Key features

• USB 2.0 compliant (high speed and full speed)
• RON is 4.0Ω typical @ VDD = 3.0V
• Low bit - to - bit skew
• Low Crosstalk: -41dB @ 240MHz
• Off Isolation: -37dB @ 240MHz
• Wide -3db bandwidth: 770MHz
• Near - Zero propagation delay: 250ps
• Support for 1.8V/2.5V/3.3V Logic on Control pins
• Channel On Capacitance: 6.0pF
• VDD Operating Range: 1.8V to 4.5V
• Data pin I/O ESD: >8kV HBM protection per JESD22 - A114D specification
• I/O pins have over - voltage protection and can tolerate a short to Vbus
• Totally Lead - Free & Fully RoHS Compliant
• Halogen and Antimony Free. “Green” Device
• Packaging (Pb - free & Green): 10 - pin UQFN (ZM10)
