DIODES

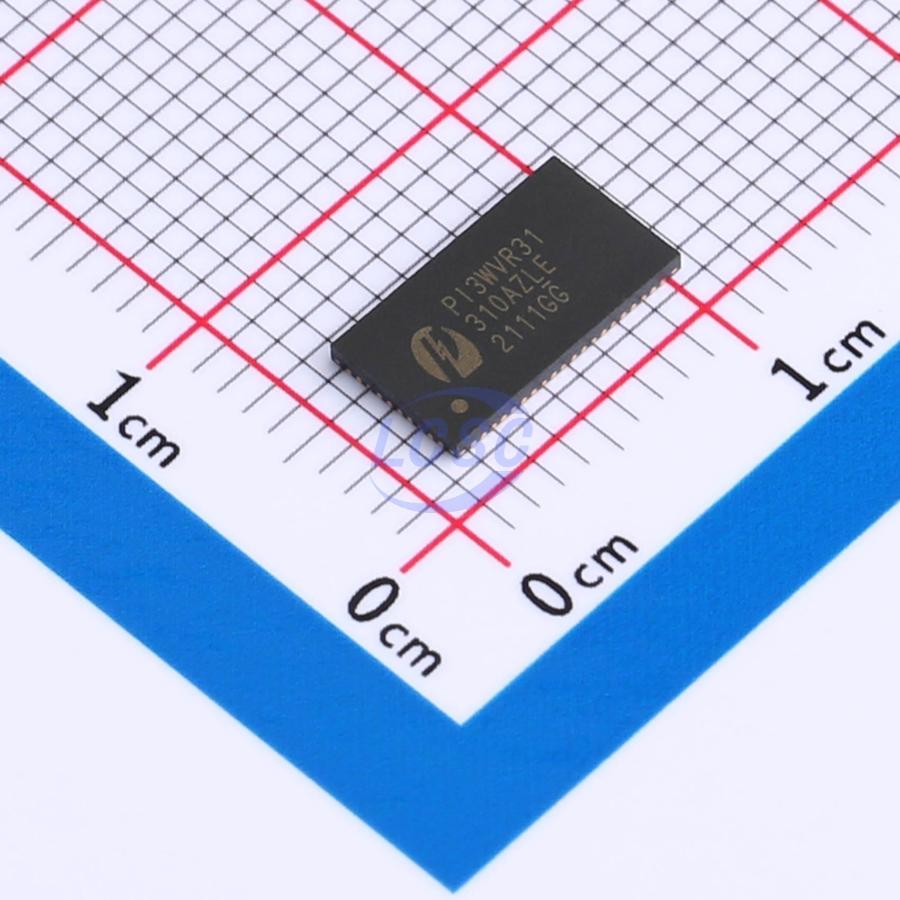

PI3WVR31310AZLEX

3V~3.6V 5.4GHz 25Ω 4 3:1 TQFN-60-EP(5x9) Analog Switches - Special Purpose RoHS

TQFN-60-EP(5x9)ROHS3 CompliantActive

PI3WVR31310A DP/HDMI 1:3 De-mux/Mux Switches

Manufacturer: DIODES
Manufacturer part #: PI3WVR31310AZLEX
Store part #: C526715
Package / case: TQFN-60-EP(5x9)
Category: Analog Switches - Special Purpose
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,518 in stock

#C526715

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹271.45	₹271.45
10+	₹240.23	₹2,402.30
30+	₹220.50	₹6,615.00
100+	₹200.34	₹20,034.00
500+	₹191.45	₹95,725.00
1,000+	₹187.34	₹1,87,340.00

Quantity (min 1)

1 × ₹271.45

₹271.45

excl. GST

₹320.31 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,500 per reel

PI3WVR31310AZLEX

₹271.45 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 3V~3.6V
-3dB Bandwidth: 5.4GHz
Ron: 25Ω
Number of Channels: 4
Propagation Delay (tpd): 10ns
Switch Circuit: 3:1
Operating Temperature: -40℃~+85℃
Features: ESD protection
Con: 10pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.2 g

Overview

The PI3WVR31310A is a 3:1 Mux or 1:3 Demux high speed passive switch supporting DP 1.2, HDMI 1.4, HDMI 2.0. At DEMUX mode, all three output ports support auto port priority selection by detecting HPD1/2/3 input or manual selection. At MUX mode, HPD1/2/3 will change from input to output, there is no auto port priority selection.

Applications

Notebook, Monitor, Switch box or TV sink application

Key features

DP 1:3 De-Mux or 3:1 Mux switch with 4 high speed differential, AUX/DDC, HPD and CAB_DET channels
Pin selection for 1:3 DEMUX or 3:1 MUX
HDMI 3:1 Mux switch with 4 high speed differential, DDC and HPD channels
HDMI-mode only supports HDMI-sink application, not support HDMI-source application.
Pin selection for DP mode or HDMI mode
All ports support up to DP1.2 at 5.4Gb/s or HDMI 2.0 at 6Gb/s
Supports manual switching or HPD auto priority selection in 1:3 DEMUX, in DP mode
Low current consumption
3.3V power supply
ESD protection on all I/O pins for 2kV HBM
Package: 60 pin TQFN (5x9mm)
