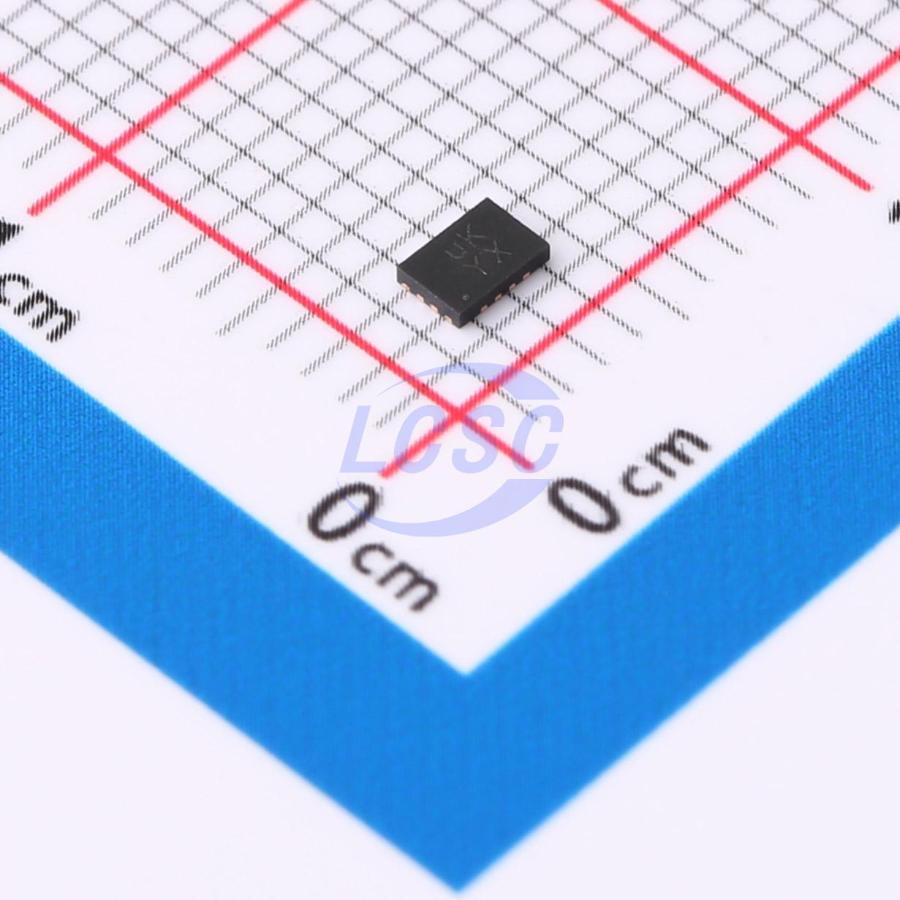

PI4IOE5V6408ZTAEX

Operation power supply voltage from 1.65V to 4.0V Allows bidirectional voltage-level translation and GPIO expansion between: - 1.8V SCL/SDA and 1.8V, 2.5V, 3.3V Port P - 2.5V SCL/SDA and 1.8V, 2.5V, 3.3V Port P - 3.3V SCL/SDA and 1.8V, 2.5V, 3.3V Port P Low standby current consumption: - 1.5μA typical at 3.3V VDD 1MHz I²C -bus interface - Compliant with the I²C -bus Fast and Standard modes - Programmable Pull-up/Pull-down Resistors for GPIO Inputs - Software Reset - Active LOW open-drain interrupt output - Low standby current - Latch-up tested (exceeds 100mA) - Totally Lead-Free & Fully RoHS Compliant - Halogen and Antimony Free. “Green” Device The PI4IOE5V6408 is an 8-bit general-purpose I/O expander that provides remote I/O expansion for most microcontroller families via the I²C -bus interface. It provides a simple solution when additional I/Os are needed while keeping interconnections to a minimum, for example, in battery-powered mobile applications for interfacing to sensors, push buttons, keypad, etc. It can operate from 1.65V to 4V on the GPIO -port side and 1.65V to 3.6V on the SDA/SCL side. This allows the PI4IOE5V6408 to interface with next generation microprocessors and microcontrollers on the SDA/SCL side, where supply levels are dropping down to conserve power. The bidirectional voltage -level translation in the PI4IOE5V6408 is provided through VDD(I2C_bus). VDD(I2C_bus) should be connected to the VDD of the external SCL/SDA lines. The voltage level on the GPIO -port of the PI4IOE5V6408 is determined by VDD(P). At power on, the I/Os are configured as inputs; however, the system master can enable the I/Os as either inputs or outputs by writing to the I/O direction bits. The data for each input or output is kept in the corresponding Input or Output register. All registers can be read by the system master. The PI4IOE5V6408 has open -drain interrupt (INT) output pin that goes LOW when the input state of a GPIO -port changes from the input -state default register value. The device also has an interrupt masking feature by which the user can mask the interrupt from an individual GPIO -port.

Key features

• Operation power supply voltage from 1.65V to 4.0V
• Allows bidirectional voltage -level translation and GPIO expansion between different voltage levels
• Low standby current consumption: 1.5μA typical at 3.3V VDD 1MHz I²C -bus interface
• Compliant with the I²C -bus Fast and Standard modes
• Programmable Pull -up/Pull -down Resistors for GPIO Inputs
• Software Reset
• Active LOW open -drain interrupt output
• Low standby current
• Latch -up tested (exceeds 100mA)
• Totally Lead -Free & Fully RoHS Compliant
• Halogen and Antimony Free. “Green” Device
• 16 -Pin, UQFN1.8 x2.6 packaging
