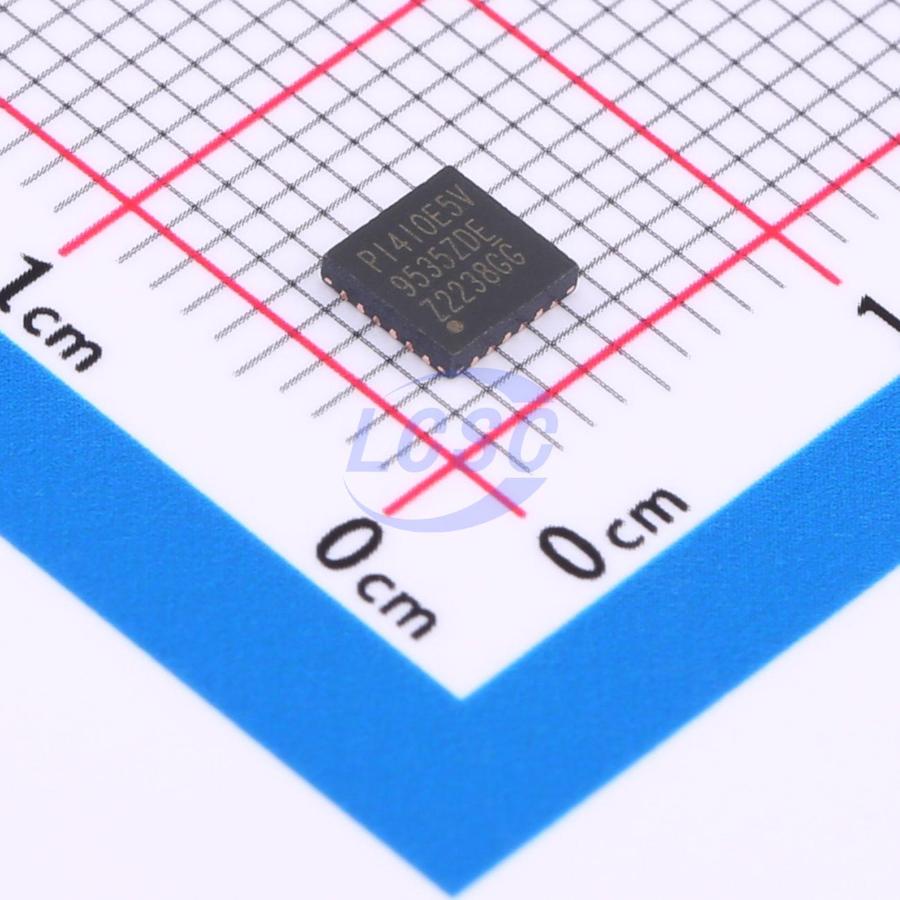

DIODES

PI4IOE5V9535ZDEX

16 QFN-24(4x4) I/O Expanders RoHS

QFN-24(4x4)ROHS3 CompliantActive

16-bit I2C-bus and SMBus I/O port with interrupt

Manufacturer: DIODES
Manufacturer part #: PI4IOE5V9535ZDEX
Store part #: C3188776
Package / case: QFN-24(4x4)
Category: I/O Expanders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,117 in stock

#C3188776

Stock & price checked 27 h ago

Quantity	Unit price	Pack price
1+	₹97.36	₹97.36
10+	₹78.45	₹784.50
30+	₹69.11	₹2,073.30
100+	₹59.76	₹5,976.00
500+	₹54.34	₹27,170.00
1,000+	₹51.50	₹51,500.00

Quantity (min 1)

1 × ₹97.36

₹97.36

excl. GST

₹114.88 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,500 per reel

PI4IOE5V9535ZDEX

₹97.36 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Interrupt Output: Interrupt Output
Operating Temperature: -40℃~+85℃
Number of I/O: 16
Features: Reset function;Cascade and address expansion
Voltage - Supply: 2.3V~5.5V
Quiescent Supply Current: 250nA
Number of Supporting Devices: 8
Current - Output High(IOH): 10mA
Interface: I2C;SMBus

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.08 g

Overview

The PI4IOE5V9535 is a 24-pin device that provides 16 bits of General Purpose parallel Input/Output (GPIO) expansion for I²C-bus/SMBus applications. It includes the features such as higher driving capability, 5V tolerance, lower power supply, individual I/O configuration, and smaller packaging. It provides a simple solution when additional I/O is needed for ACPI power switches, sensors, push buttons, LEDs, fans, etc.
