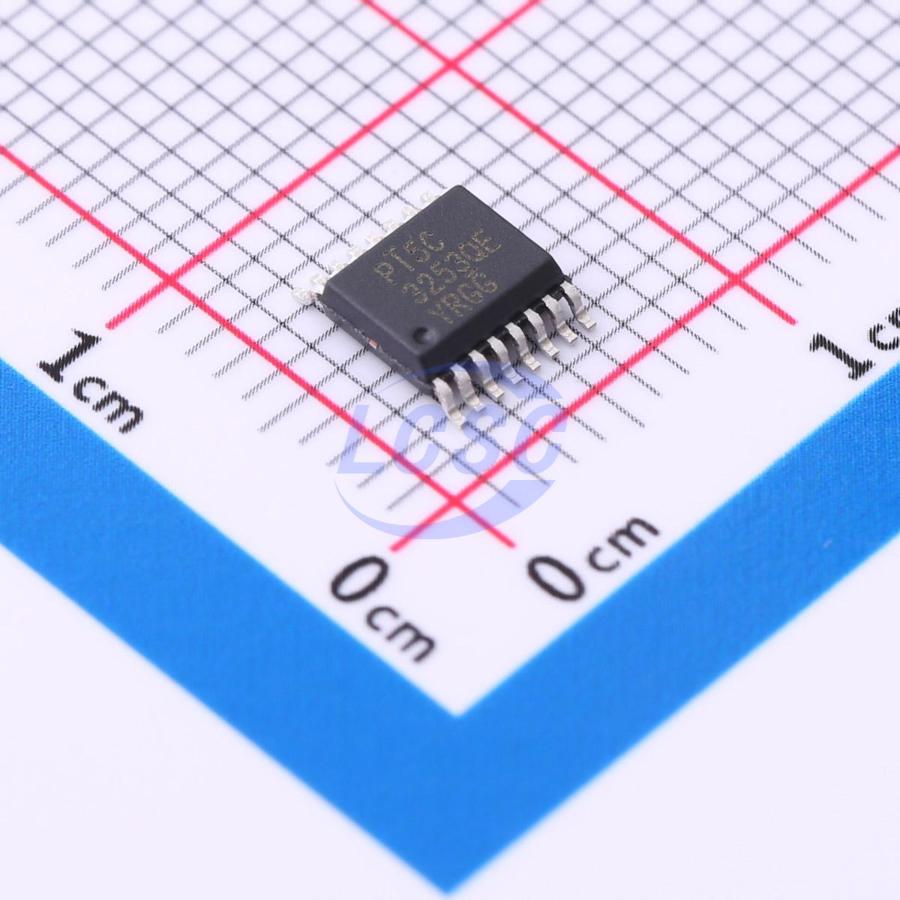

DIODES

PI5C3253QEX

8/2 4.75V~5.25V 3uA 0.25ns@5V,50pF SSOP-16-150mil Signal Switches, Multiplexers, Decoders RoHS

SSOP-16-150milROHS3 CompliantActive

Dual 4:1 Mux/DeMux Bus Switch

Manufacturer: DIODES
Manufacturer part #: PI5C3253QEX
Store part #: C3001703
Package / case: SSOP-16-150mil
Category: Signal Switches, Multiplexers, Decoders
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,080 in stock

#C3001703

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹50.02	₹250.10
50+	₹39.53	₹1,976.50
150+	₹35.03	₹5,254.50
500+	₹28.17	₹14,085.00
2,500+	₹25.67	₹64,175.00
5,000+	₹24.17	₹1,20,850.00

Quantity (min 5, multiples of 5)

5 × ₹50.02

₹250.10

excl. GST

₹295.12 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

PI5C3253QEX

₹250.10 for 5 + GST

Specifications

Number of Channels: 8/2
Voltage - Supply: 4.75V~5.25V
Operating Temperature: -40℃~+85℃
Quiescent Current: 3uA
Propagation Delay: 0.25ns@5V,50pF
Function: Output enable high-impedance;Tri-state output

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.24 g

Overview

PI5C3253 is a Dual 4:1 Multiplexer/ demultiplexer with three-state outputs that is pinout compatible with the PI74FCT253T, 74F253, and 74ALS/AS/LS 253. Inputs can be connected to outputs with low On-Resistance (5Ω) with no additional ground bounce noise or propagation delay.
