DIODES

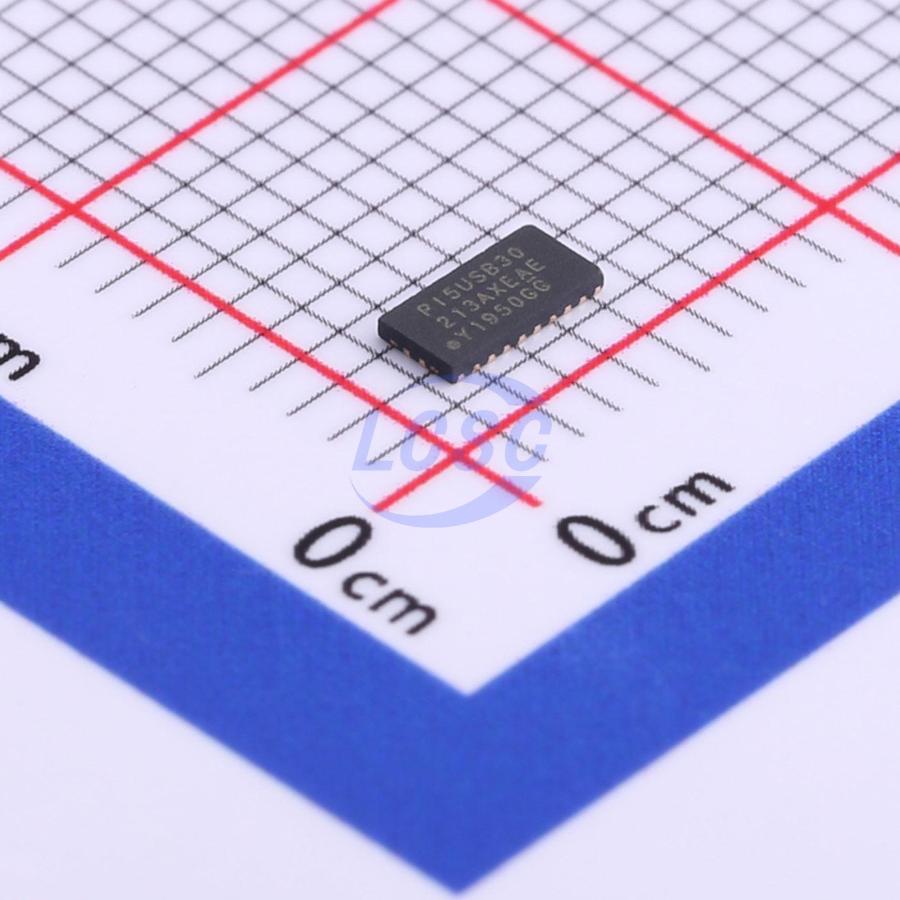

PI5USB30213AXEAEX

2.7V~5.5V 2 2:1 X1QFN-24(2x4) Analog Switches - Special Purpose RoHS

X1QFN-24(2x4)ROHS3 CompliantActive

Type-C Dual Role Port Controller with USB3.1 Gen1 5Gbps Mux

Manufacturer: DIODES
Manufacturer part #: PI5USB30213AXEAEX
Store part #: C521640
Package / case: X1QFN-24(2x4)
Category: Analog Switches - Special Purpose
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,388 in stock

#C521640

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹251.94	₹251.94
10+	₹212.49	₹2,124.90
30+	₹187.77	₹5,633.10
100+	₹162.40	₹16,240.00
500+	₹150.91	₹75,455.00
1,000+	₹146.14	₹1,46,140.00

Quantity (min 1)

1 × ₹251.94

₹251.94

excl. GST

₹297.29 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,500 per reel

PI5USB30213AXEAEX

₹251.94 for 1 + GST

Specifications

Voltage - Supply: 2.7V~5.5V
Number of Channels: 2
Switch Circuit: 2:1
Operating Temperature: -40℃~+85℃
Features: Bidirectional analog channel;Fault protection;Control interface integration

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.21 g

Overview

The PI5USB30213A is a dual differential channel bi-directional multiplexer/de-multiplexer switch solution for USB 3.1 Gen1 TypeC connector applications. PI5USB30213A switches between the USB controller and the new Type-C connector. It supports host mode, device mode and dual-role mode ports with automatic configuration based on the voltage levels detected on CC pin. It offers excellent signal integrity for high-speed signals at low power dissipation. PI5USB30213A supports both pin and I2C control base on ADDR pin setting. In pin control mode, the PORT input pin determines the port setting, whether this is a host, device or dual-role port. In host mode, the system can monitor ID pin to know the connector status while default current mode is set. Systems running in device mode can monitor system VBUS for connector status as well as OUT1 and OUT2 pins for host’s charging profile capability. Enabling I2C control mode allows high flexibility for port control and communications through registers read/write in PI5USB30213A. There is also flexibility to support Default, 1.5A and 3A current modes. An interrupt signal for indicating changes with the I2C registers is sent to the master to notify the system any change in the Type-C connector while in parallel the system can still monitor ID pin.

Applications

Notebooks
Industrial PC
Mobile Phones
IP Cameras
Tablets
LTE Router
Docking Station
External Storage

Key features

Compatible to USB Type-C Specification
Dual Differential Channel, 2:1 USB 3.0 Mux/DeMux
Switches USB controller and Type-C connector
Supports Host-mode/Device-mode/Dual-role mode
Auto-configure ports orientation through CC detection
Supports VBUS powered Device (UFP) applications
Supports VCONN to power active cables and other accessories
Supports over-current protection and over-voltage protection for VCONN
Audio and Debug Accessory Support
Supports for Try.SRC and Try.SNK DRP Modes
Allow both pin control and I2C interface
Integrated power switches, high-precision resistors and current sources for CC pins
Provides support for default current, 1.5A and 3A modes with I2C control
Output indicator for plug-in detection
Power saving mode
Wide power supply range: 2.7V – 5.5V
Temperature Range: -40°C to 85°C
Packaging (Pb-free & Green): – 24-contact, X1QFN (2mm×4mm)
