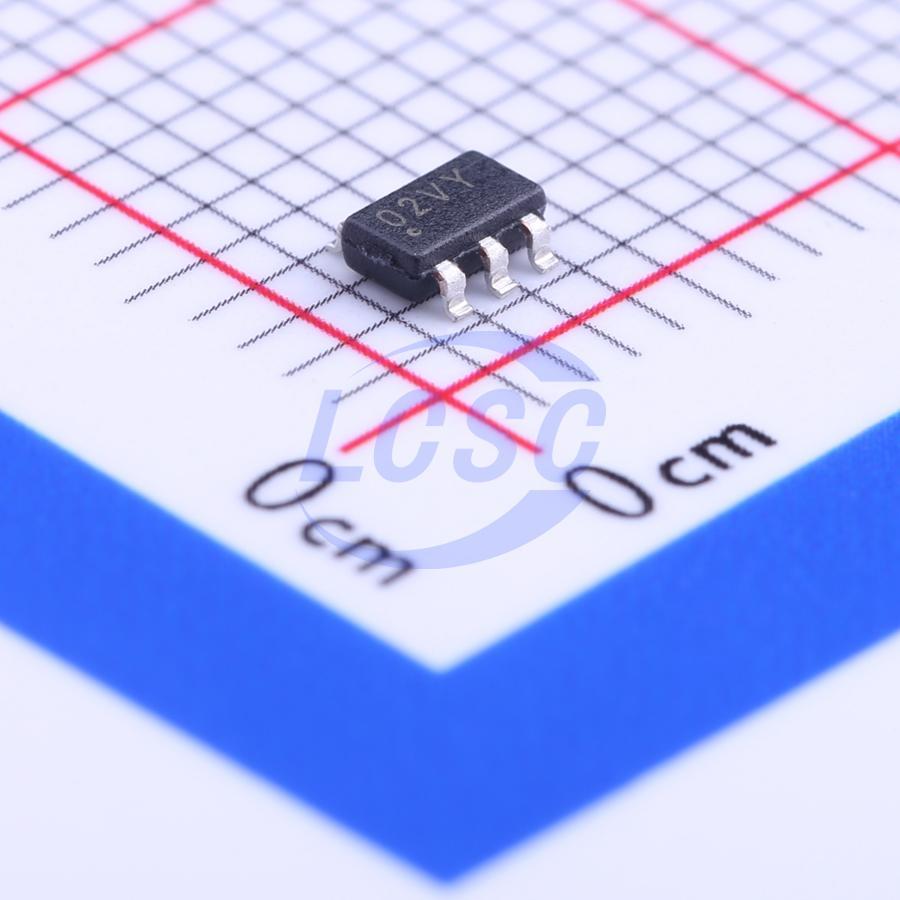

PIC10F202T-I/OT

The PIC10F200/202/204/206 devices are low-cost, high-performance, 8-bit, fully static, Flash-based CMOS microcontrollers. They employ a RISC architecture with only 33 single-word/single-cycle instructions. All instructions execute in a single cycle (1 µs) except for program branches, which are two-cycle instructions. The 12-bit wide instruction set is highly orthogonal, delivering code compression efficiency up to twice that of other 8-bit microcontrollers of the same class. The easy-to-use and easy-to-remember instruction set significantly reduces development time. The PIC10F200/202/204/206 products feature special functions designed to reduce system cost and power consumption. An on-chip Power-On Reset (POR) circuit and Device Reset Timer (DRT) eliminate the need for external reset circuitry. The proprietary INTRC internal oscillator mode conserves available I/O resources. Power-saving Sleep mode, Watchdog Timer, and code protection features reduce system cost and power consumption while enhancing reliability. The PIC10F200/202/204/206 devices incorporate low-cost Flash memory, making them suitable for production runs of any volume. Customers benefit from price leadership and programming flexibility in the Flash-programmable microcontroller space. Software support for the PIC10F200/202/204/206 products includes a full-featured macro assembler, software simulator, in-circuit debugger, C compiler, low-cost development programmer, and full-featured programmer. All support tools run on IBM PC and compatible systems.

Applications

• Personal care appliances
• Security systems
• Low-power remote transmitters/receivers
• Timer functions in large systems and coprocessor applications
• Logic and PLD circuits

Key features

• Only 33 single-word instructions
• All single-cycle instructions except program branch instructions, which are dual-cycle
• 12-bit wide instruction word
• 2-level hardware stack
• Direct, indirect, and relative addressing modes for data and instructions
• 8-bit wide data bus
• 8 special function hardware registers
• 4 MHz high-precision internal oscillator, factory-calibrated to ±1% accuracy
• In-Circuit Serial Programming™ (ICSP™)
• In-Circuit Debugging (ICD) support
• Power-on Reset (POR)
• Device Reset Timer (DRT)
• Watchdog Timer (WDT) with dedicated on-chip RC oscillator for reliable operation
• Programmable code protection
• Multiplexed MCLR input pin
• Internal weak pull-up on I/O pins
• Power-saving Sleep mode
• Wake-up from Sleep on pin level change
• Operating current: <175 μA @ 2V, 4 MHz, typical
• Standby current: 100 nA @ 2V, typical
• Low-power high-speed Flash technology; Flash endurance: 100,000 erase/write cycles; data retention >40 years
• Fully static design
• Wide operating voltage range: 2.0V to 5.5V
• Wide temperature range: Industrial -40°C to +85°C; Extended -40°C to +125°C
• 4 I/O pins: 3 individually direction-controlled I/O pins, 1 input-only pin; high sink/source current capability for direct LED drive; interrupt-on-change wake-up; weak pull-up
• 8-bit real-time clock/counter (TMR0) with 8-bit programmable prescaler (PIC10F204/206)
• 1 comparator with internal absolute voltage reference; both comparator inputs externally accessible; comparator output externally accessible (PIC10F204/206)
