PJSEMI

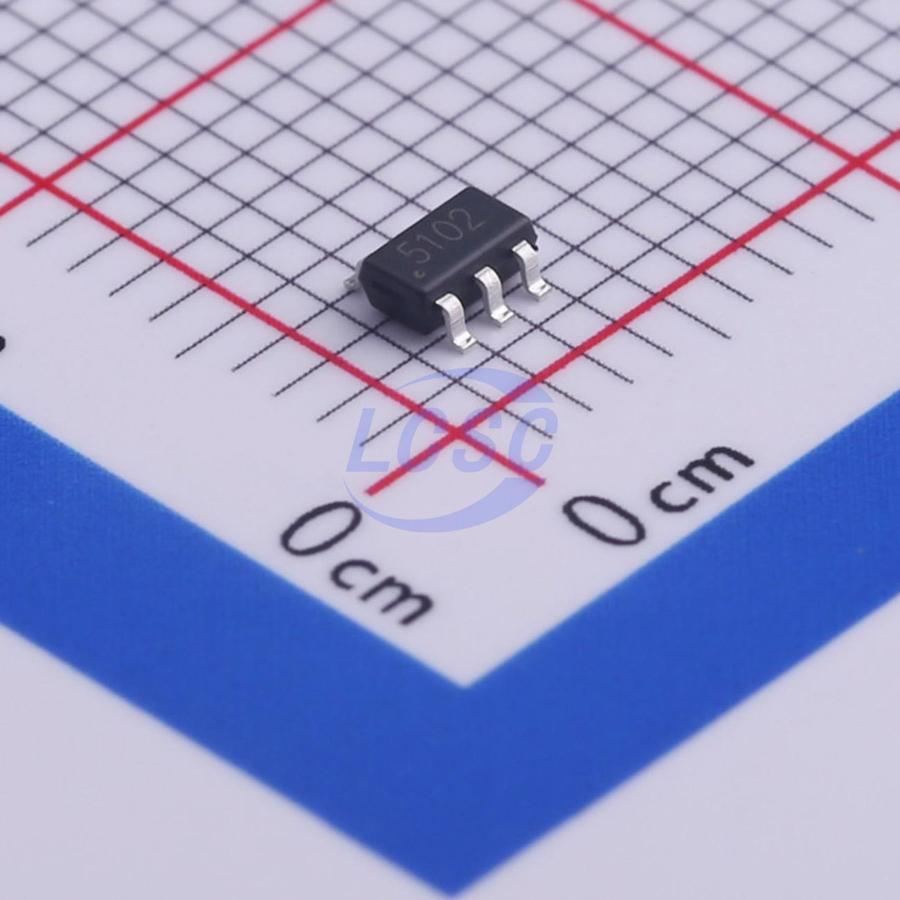

PJ5102SG

Power Supply Controller 2.7V SOT-23-6 Power Management - Specialized

SOT-23-6RoHSActive

Dual USB Dedicated Charging Port Controller

Manufacturer: PJSEMI
Manufacturer part #: PJ5102SG
Store part #: C469392
Package / case: SOT-23-6
Category: Power Management - Specialized
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,780 in stock

#C469392

Stock & price checked 34 h ago

Quantity	Unit price	Pack price
10+	₹8.97	₹89.70
100+	₹7.09	₹709.00
300+	₹6.15	₹1,845.00
3,000+	₹5.45	₹16,350.00
6,000+	₹4.88	₹29,280.00
9,000+	₹4.60	₹41,400.00

Quantity (min 10, multiples of 10)

10 × ₹8.97

₹89.70

excl. GST

₹105.85 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

PJ5102SG

₹89.70 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Type: Power Supply Controller
Features: Automatic protocol detection;Under-voltage lockout
Protocol: BC 1.2
Operating Temperature: -40℃~+125℃
Voltage - Supply: 4.5V~5.5V
Output Voltage: 2.7V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.038 g

Overview

The PJ5102SG is a Dual USB decated charging port controller. An auto -detect feature monitors USB data line voltage, and automatically provides the correct electrical signatures on the data lines to charge compliant devices among the following dedicated charging schemes: 1、Divider DCP, required to apply 2.7 V and 2.7 V on the D+ and D- Lines respectively 2、BC1.2 DCP, required to short the D+ Line to the D- Line 3、Chinese Telecom Standard YD/T 1591-2009 Shorted Mode, required to short the D+ Line to the D- Line 4、1.2 V on both D+ and D- Lines

Applications

Car Charger
Vehicle USB Power Chargers
Networking Systems
Other USB Chargers

Key features

Supports USB DCP Shorting D+ Line to D- Line per USB Battery Charging Specification, Revision 1.2 (BC1.2)
Supports Shorted Mode (Shorting D+ Line to D- Line) per Chinese Telecommunication Industry Standard YD/T 1591-2009
Supports USB DCP Applying 2.7 V on D+ Line and 2.7 V on D- Line
Supports USB DCP Applying 1.2 V on D+ and D– Lines
Automatically Switch D+ and D- Lines Connections for an Attached Device
Operating Range: 4.5 V to 5.5 V
Available in SOT-23-6 Package
