PJSEMIDatasheet (PDF)

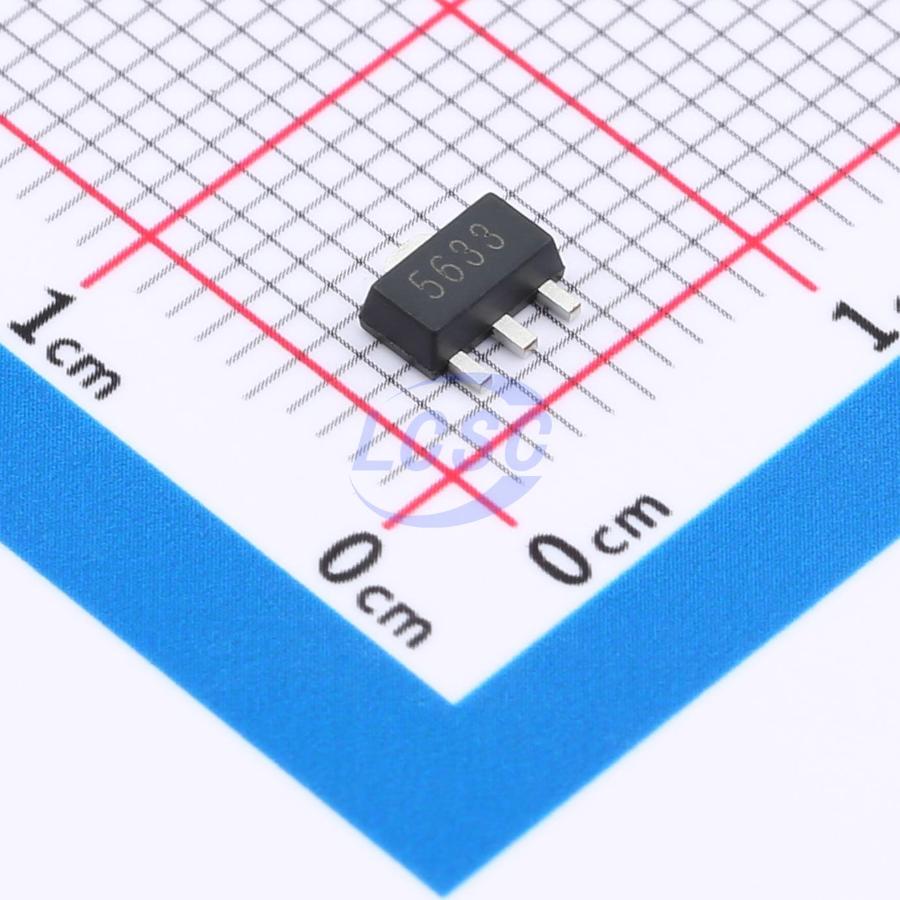

PJ56L33SQ
3.3V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89RoHSActive
Low Dropout Regulators
- Manufacturer
- PJSEMI
- Manufacturer part #
- PJ56L33SQ
- Store part #
- C42444598
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,000 in stock
#C42444598
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.90 | ₹104.50 |
| 50+ | ₹16.42 | ₹821.00 |
| 150+ | ₹14.49 | ₹2,173.50 |
| 1,000+ | ₹12.09 | ₹12,090.00 |
| 2,000+ | ₹11.02 | ₹22,040.00 |
| 5,000+ | ₹10.39 | ₹51,950.00 |
5 × ₹20.90
₹104.50
excl. GST
₹123.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
PJ56L33SQ
₹104.50 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 2.1uA
- Output Configuration
- Positive
- Operating Voltage
- 60V
- Output Current
- 150mA
- Features
- Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.096 g
Overview
The PJ56 Series is a high input voltage, low quiescent current, low-dropout linear regulator able to provide 150mA load current. The LDO features very fast response against line voltage transient and load current transient, and ensures no overshoot voltage during the LDO start up and short circuit recovery. The device features integrated short-circuit Current Limit and Over-temperature protection.
Applications
- Battery-Powered Equipment
- Smoke Detector and Sensor
- Micro Controller Applications
Key features
- Wide Input Voltage Range: 5V~60V
- Maximum Output Current: 150mA
- Standard Fixed Output Voltage Options: 3V, 3.3V, 3.6V, 5V, 12V
- Low Quiescent Current: 2.0uA
- High PSRR: 70dB at 1KHz
- Low Dropout: 700mV @ 100mA
- Low Output Voltage Accuracy: ±2%
- Fast Transient Response
- Current Limiting Protection
- Short-circuit Protection
- Over-temperature Protection
- Available Packages: SOT-23-3, SOT-89, SOT-23-5 and TO-252
