PJSEMIDatasheet (PDF)

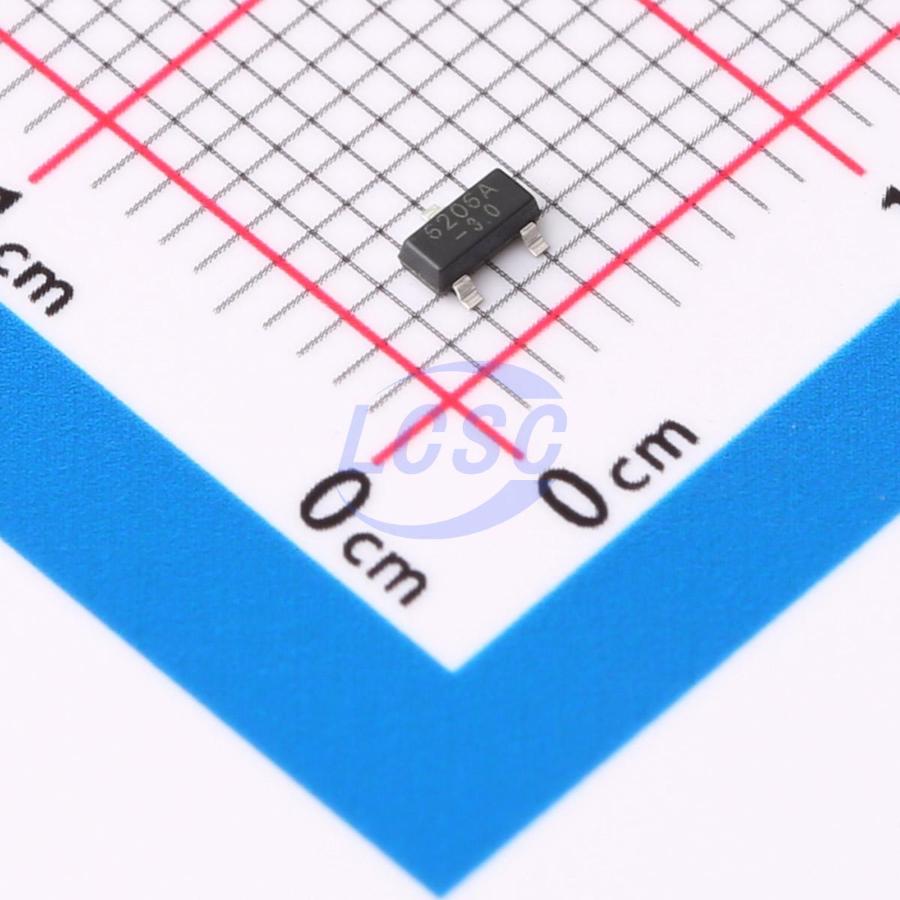

PJ6206AL30SA
3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
Low Dropout Linear Regulator
- Manufacturer
- PJSEMI
- Manufacturer part #
- PJ6206AL30SA
- Store part #
- C2919620
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,430 in stock
#C2919620
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹3.56 | ₹35.60 |
| 100+ | ₹3.14 | ₹314.00 |
| 300+ | ₹2.94 | ₹882.00 |
| 3,000+ | ₹2.45 | ₹7,350.00 |
| 6,000+ | ₹2.33 | ₹13,980.00 |
| 9,000+ | ₹2.26 | ₹20,340.00 |
10 × ₹3.56
₹35.60
excl. GST
₹42.01 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PJ6206AL30SA
₹35.60 for 10 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+70℃@(Ta)
- Supply Current (Iq)
- 6uA
- Output Configuration
- Positive
- Operating Voltage
- 8V
- Output Current
- 300mA
- Output Type
- Fixed
- Features
- Short Circuit Protection;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.041 g
Overview
The PJ6206A Series are highly precise, low power consumption, 3 terminal, positive voltage regulators manufactured using CMOS technologies. The PJ6206A Series consists of a current limiter circuit, a driver transistor, a precision reference voltage and an error correction circuit. The series is compatible with low ESR ceramic capacitors. The current limiter's foldback circuit operates as a short circuit protection as well as the output current limiter for the output pin.
Applications
- Mobile Phones
- Battery powered equipment
- Portable game consoles
- Reference voltage sources
Key features
- Quiescent Current: 6μA
- Input Voltage Range: Max.8V
- Output Current: 300mA
- Low Dropout Voltage: 290mV@100mA (VOUT=3.3V)
- Output Voltage: 1.2–5.0V
- Output Voltage Accuracy: ±2% (Typ.)
- Low Power Consumption
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PJ54M30SC#C23376659PJSEMI · SOT-23-3 | PJSEMI | SOT-23-3 | 2,960 | ₹15.21 · 2,960 in stock | View |
 | PJ54M30SA#C45406561PJSEMI · SOT-23 | PJSEMI | SOT-23 | 500 | ₹14.92 · 500 in stock | View |
 | PJ73AL30SC#C2874138PJSEMI · SOT-23-3 | PJSEMI | SOT-23-3 | 5,575 | ₹7.75 · 5,575 in stock | View |
 | PJ9350L30SA#C45406558PJSEMI · SOT-23 | PJSEMI | SOT-23 | 500 | ₹8.40 · 500 in stock | View |
 | PJ9400L30SC#C41348036PJSEMI · SOT-23-3 | PJSEMI | SOT-23-3 | On request | Price on request | Quote |
