PJSEMIDatasheet (PDF)

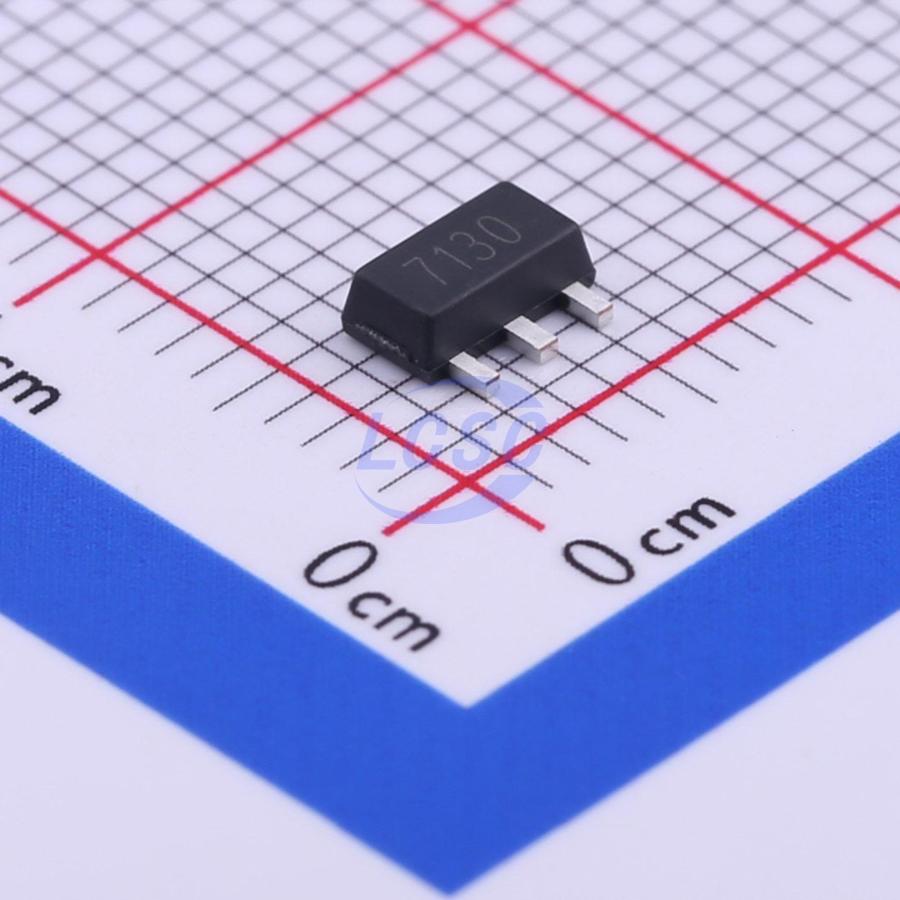

PJ71K30SQ
3V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89RoHSActive
High Voltage Regulator
- Manufacturer
- PJSEMI
- Manufacturer part #
- PJ71K30SQ
- Store part #
- C411733
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,990 in stock
#C411733
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.91 | ₹54.55 |
| 50+ | ₹8.67 | ₹433.50 |
| 150+ | ₹7.54 | ₹1,131.00 |
| 1,000+ | ₹6.52 | ₹6,520.00 |
| 2,000+ | ₹5.85 | ₹11,700.00 |
| 5,000+ | ₹5.52 | ₹27,600.00 |
5 × ₹10.91
₹54.55
excl. GST
₹64.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
PJ71K30SQ
₹54.55 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+70℃@(Ta)
- Supply Current (Iq)
- 4uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 30mA
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.127 g
Overview
The PJ71KXXSQ series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 24V. They are available with several fixed output voltages ranging from 3.0V to 5.0V. CMOS technology ensures low voltage drop and low quiescent current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.
Applications
- Battery-powered equipment
- Communication equipment
- Audio/Video equipment
Key features
- Low power consumption
- Low voltage drop
- Low temperature coefficient
- High input voltage (up to 24V)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PJ75AL30SQ#C411726PJSEMI · SOT-89-3 | PJSEMI | SOT-89-3 | 2,890 | ₹8.07 · 2,890 in stock | View |
 | PJ71BK30SQ#C42436943PJSEMI · SOT-89 | PJSEMI | SOT-89 | 200 | ₹9.39 · 200 in stock | View |
 | PJ54M30SQ#C20618186PJSEMI · SOT-89 | PJSEMI | SOT-89 | 480 | ₹17.33 · 480 in stock | View |
