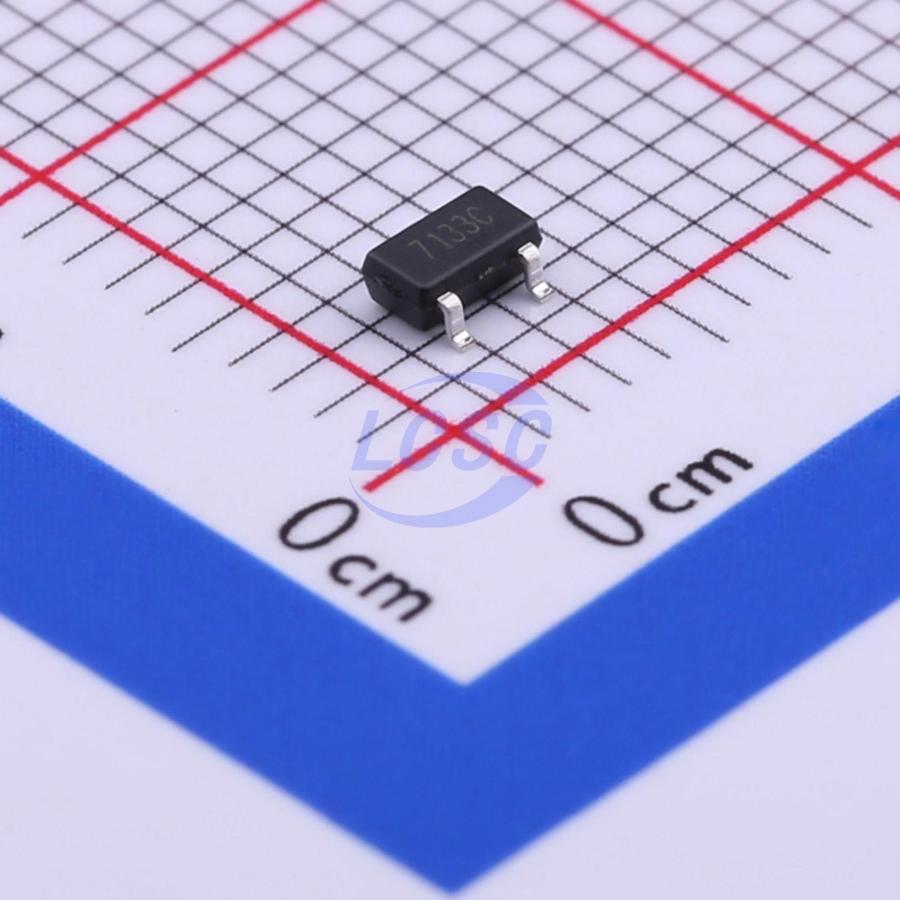

PJ71K33SC
3.3V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
Low Dropout Regulators
- Manufacturer
- PJSEMI
- Manufacturer part #
- PJ71K33SC
- Store part #
- C411739
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,330 in stock
#C411739
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.41 | ₹74.10 |
| 100+ | ₹5.97 | ₹597.00 |
| 300+ | ₹5.25 | ₹1,575.00 |
| 3,000+ | ₹4.15 | ₹12,450.00 |
| 6,000+ | ₹3.73 | ₹22,380.00 |
| 9,000+ | ₹3.51 | ₹31,590.00 |
10 × ₹7.41
₹74.10
excl. GST
₹87.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PJ71K33SC
₹74.10 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 4uA
- Output Configuration
- Positive
- Operating Voltage
- 24V
- Output Current
- 30mA
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The PJ71KXXSC series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 24V. They are available with several fixed output voltages ranging from 3.0V to 5.0V. CMOS technology ensures low voltage drop and low quiescent current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain variable voltages and currents.
Applications
- Battery-powered equipment
- Communication equipment
- Audio/Video equipment
Key features
- Low power consumption
- Low voltage drop
- Low temperature coefficient
- High input voltage (up to 24V)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PJ75AL33SA#C411736PJSEMI · SOT-23 | PJSEMI | SOT-23 | 2,480 | ₹9.13 · 2,480 in stock | View |
 | PJ75AL33SC#C41413556PJSEMI · SOT-23-3 | PJSEMI | SOT-23-3 | 290 | ₹8.67 · 290 in stock | View |
 | PJ56L33SC#C23376661PJSEMI · SOT-23-3 | PJSEMI | SOT-23-3 | 405 | ₹18.39 · 405 in stock | View |
 | PJ72AL33SC#C41348026PJSEMI · SOT-23-3 | PJSEMI | SOT-23-3 | 20 | ₹8.32 · 20 in stock | View |
 | PJ54AM33SA#C20618191PJSEMI · SOT-23 | PJSEMI | SOT-23 | 375 | ₹16.41 · 375 in stock | View |
