PJSEMIDatasheet (PDF)

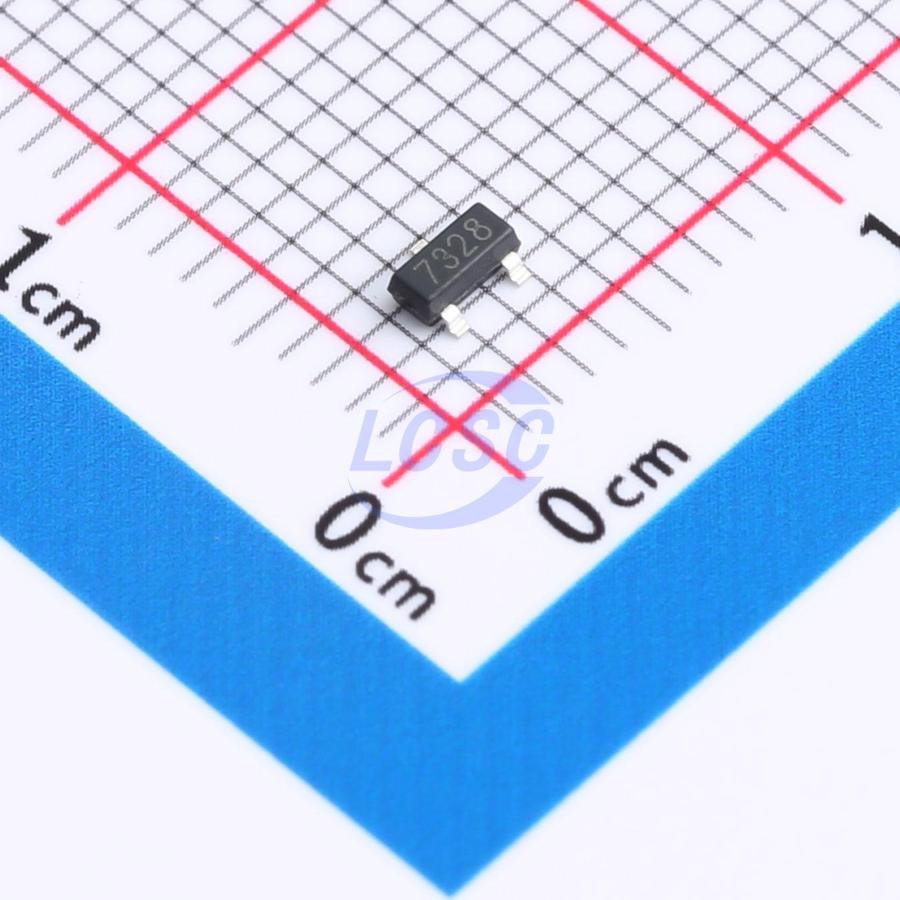

PJ73AL28SA
2.8V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
Low Dropout Regulators
- Manufacturer
- PJSEMI
- Manufacturer part #
- PJ73AL28SA
- Store part #
- C45406566
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,910 in stock
#C45406566
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.65 | ₹53.25 |
| 50+ | ₹8.41 | ₹420.50 |
| 150+ | ₹7.30 | ₹1,095.00 |
| 500+ | ₹6.47 | ₹3,235.00 |
| 3,000+ | ₹5.79 | ₹17,370.00 |
| 6,000+ | ₹5.46 | ₹32,760.00 |
5 × ₹10.65
₹53.25
excl. GST
₹62.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PJ73AL28SA
₹53.25 for 5 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 20V
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
The PJ73A series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 20V. They are available with several fixed output voltages ranging from 2.1V to 9.0V. Because of the low power dissipation, PJ73A series are widely used in a variety of equipment such as audio device, video device, communication device and so on.
Applications
- Battery-Powered Equipment
- Ultra Low Power Microcontrollers
- Notebook Computers
Key features
- High Input Voltage Range: up to 20V
- Maximum Output Current: 300mA
- Fixed Standard Fixed Output Voltage Options: 2.8V, 3V, 3.3V, 3.6V, 4V, 4.4V, 5V, 9V
- Low Quiescent current: 1.5μA
- Low Dropout: 300mV(Max.)@100mA
- Low Output Voltage Accuracy: ±2%
- Low Power Consumption
- Low Temperature Coefficient
- Available Packages：SOT-23、SOT-23-3、SOT-89、SOT-23-5
