PJSEMIDatasheet (PDF)

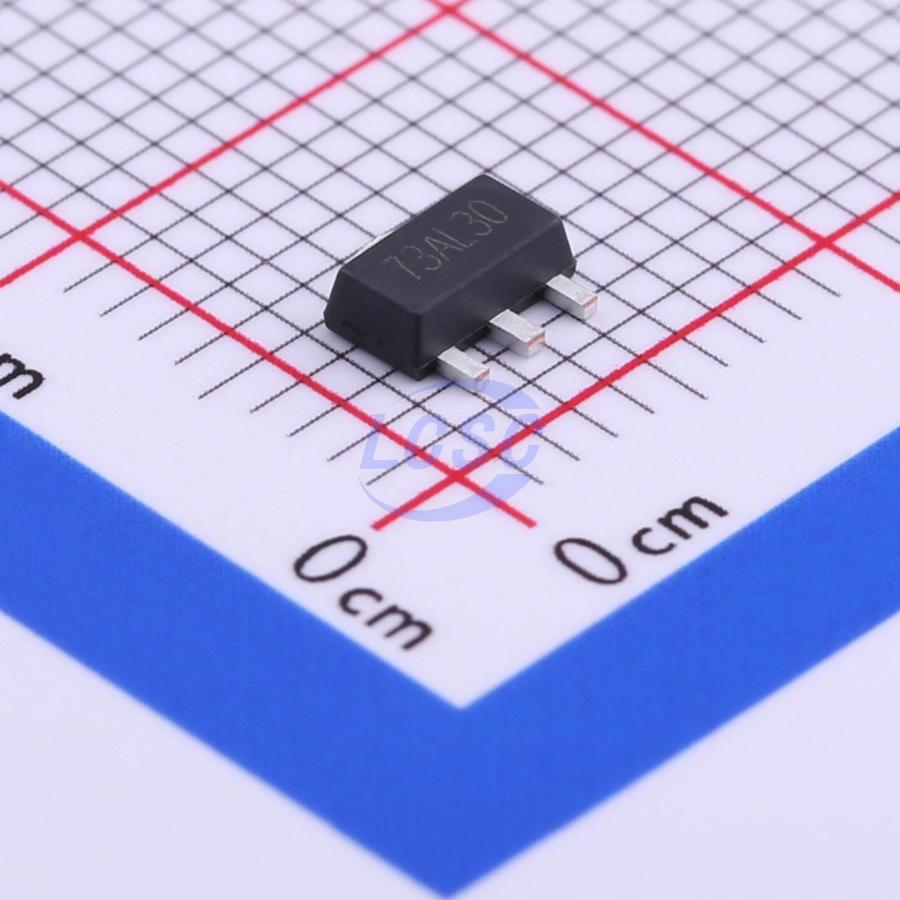

PJ73AL30SQ
3V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-89RoHSActive
Low Dropout Regulators
- Manufacturer
- PJSEMI
- Manufacturer part #
- PJ73AL30SQ
- Store part #
- C411728
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,015 in stock
#C411728
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.88 | ₹49.40 |
| 50+ | ₹7.78 | ₹389.00 |
| 150+ | ₹6.72 | ₹1,008.00 |
| 500+ | ₹5.93 | ₹2,965.00 |
| 3,000+ | ₹4.93 | ₹14,790.00 |
| 6,000+ | ₹4.62 | ₹27,720.00 |
5 × ₹9.88
₹49.40
excl. GST
₹58.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PJ73AL30SQ
₹49.40 for 5 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.5uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 20V
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.125 g
Overview
The PJ73ALXXSQ series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 20V. They are available with several fixed output voltages ranging from 2.1V to 9.0V. Because of the low power dissipation, PJ73ALXXSQ are widely used in a variety of equipment such as audio device, video device, communication device and so on.
Key features
- Low power consumption
- Low voltage drop
- Low temperature coefficient
- High input voltage (up to 20V)
- Quiescent current: 1.5μμ
- Output voltage tolerance: ±2%
- HAF(halogen and antimony free) is acquired
