PJSEMIDatasheet (PDF)

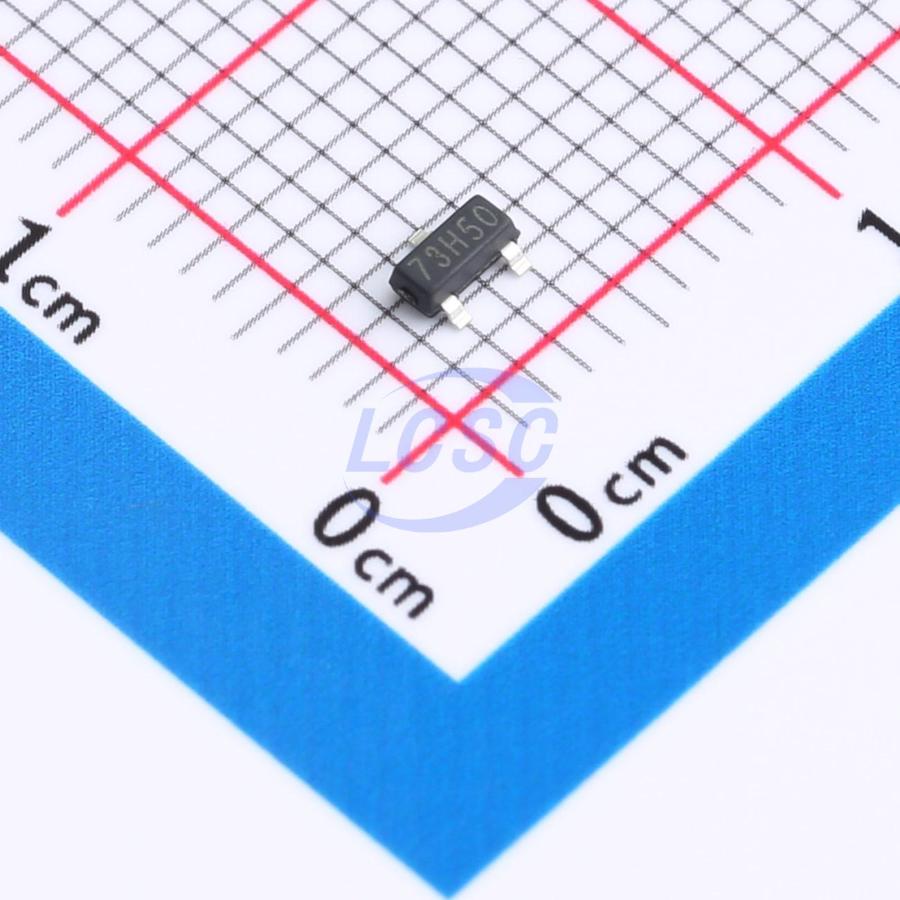

PJ73HM50SA
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-23
SOT-23RoHSActive
Low Dropout Regulators
- Manufacturer
- PJSEMI
- Manufacturer part #
- PJ73HM50SA
- Store part #
- C45406701
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,900 in stock
#C45406701
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.44 | ₹77.20 |
| 50+ | ₹12.20 | ₹610.00 |
| 150+ | ₹10.58 | ₹1,587.00 |
| 500+ | ₹9.38 | ₹4,690.00 |
| 3,000+ | ₹8.40 | ₹25,200.00 |
| 6,000+ | ₹7.92 | ₹47,520.00 |
5 × ₹15.44
₹77.20
excl. GST
₹91.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PJ73HM50SA
₹77.20 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 20V
- Features
- Built-in soft-start;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.024 g
Overview
PJ73H Series are a set of three-terminal, low power, high voltage regulators implemented in CMOS technology. The series features extremely low quiescent current which is typically 2.0μA. They allow input voltages as high as 20V. The device provides large current with a significantly small dropout voltage. PJ73H Series consists of a high-precision voltage reference, an error correction circuit, an over temperature protection circuit, and a current limited output driver. They are available with several fixed output voltages ranging from 1.8V to 5.5V. CMOS technology ensures low dropout voltage and low current consumption. PJ73H Series are available in standard SOT-23, SOT-23-3 and SOT-89 packages. Standard products are Pb-free and Halogen-free.
Applications
- Battery Powered Equipment
- Voltage Regulator for Microprocessor
- Voltage Regulator for LAN Cards
- Wireless Communication Equipment
- Audio/Video Equipment
Key features
- Maximum Output Current: 500mA
- Input Voltage Range: 3V~20V
- Quiescent current: 2uA(Typ.)
- Dropout Voltage: 140mV@100mA (VOUT = 3.3V)
- Output Voltage Range: 1.8V~5.5V
- PSRR: 70dB @10KHz
- Fast Load Transient Response
- Good Line Regulation: 0.01%N
- Good Load Regulation: 5mV@1mA≤IOUT≤50mA
- Soft Start
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PJ73HM50SC#C41348029PJSEMI · SOT-23-3 | PJSEMI | SOT-23-3 | On request | Price on request | Quote |
