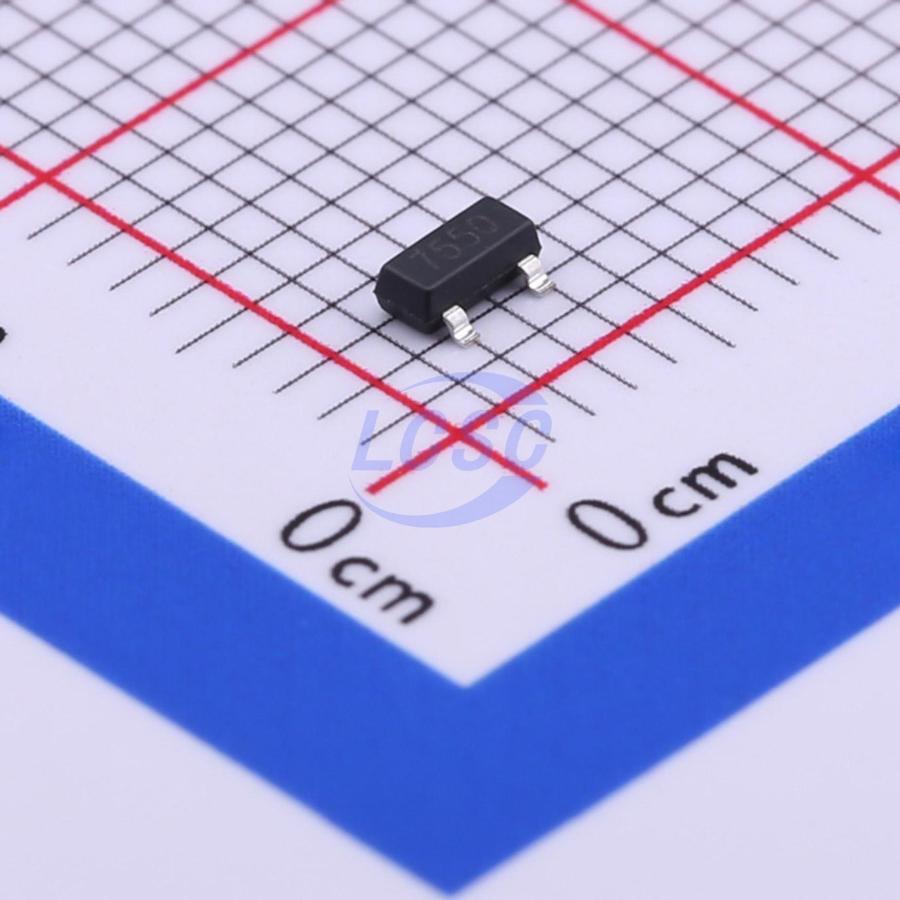

PJ75AL50SA
5V Positive Fixed SOT-23 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23RoHSActive
Low Dropout Regulators
- Manufacturer
- PJSEMI
- Manufacturer part #
- PJ75AL50SA
- Store part #
- C411735
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,470 in stock
#C411735
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.75 | ₹87.50 |
| 100+ | ₹6.89 | ₹689.00 |
| 300+ | ₹5.98 | ₹1,794.00 |
| 3,000+ | ₹5.27 | ₹15,810.00 |
| 6,000+ | ₹4.71 | ₹28,260.00 |
| 9,000+ | ₹4.43 | ₹39,870.00 |
10 × ₹8.75
₹87.50
excl. GST
₹103.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PJ75AL50SA
₹87.50 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Operating Voltage
- 36V
- Output Current
- 100mA
- Features
- Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.032 g
Overview
The PJ75A series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 36V. They are available with several fixed output voltages ranging from 2.8V to 5.0V. Because of the low power dissipation, PJ75A series are widely used in a variety of equipment such as audio device, video device, communication device and so on.
Applications
- Battery-Powered Equipment
- Ultra Low Power Microcontrollers
- Notebook Computers
Key features
- Low power consumption
- Low voltage drop
- Low temperature coefficient
- High input voltage (up to 36V)
- Quiescent current: 2.5μA
- Output voltage tolerance: ±2%
