PJSEMIDatasheet (PDF)

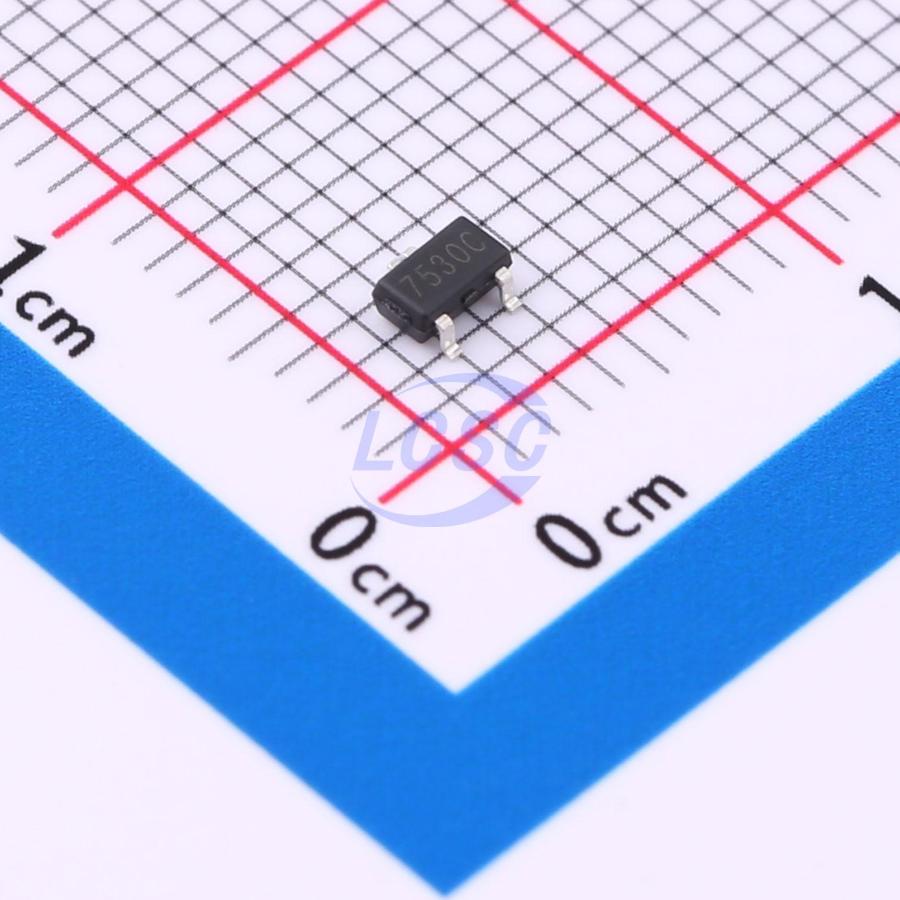

PJ75BL30SC
3V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3RoHSActive
Low Dropout Regulators
- Manufacturer
- PJSEMI
- Manufacturer part #
- PJ75BL30SC
- Store part #
- C41413551
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C41413551
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.67 | ₹86.70 |
| 100+ | ₹6.85 | ₹685.00 |
| 300+ | ₹5.95 | ₹1,785.00 |
| 1,000+ | ₹5.27 | ₹5,270.00 |
| 5,000+ | ₹4.72 | ₹23,600.00 |
| 10,000+ | ₹4.45 | ₹44,500.00 |
10 × ₹8.67
₹86.70
excl. GST
₹102.31 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PJ75BL30SC
₹86.70 for 10 + GST
Specifications
- Output Voltage
- 3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 2.5uA
- Output Configuration
- Positive
- Output Current
- 200mA
- Operating Voltage
- 36V
- Output Type
- Fixed
- Features
- Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
The PJ75B Series are a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 36V. The PJ75B Series are designed specifically for portable battery-powered applications which require ultra-low quiescent current. The very-low consumption of type 2.5uA ensures long battery life and dynamic transient boost feature improves device transient response for wireless communication applications. The device features integrated short-circuit and thermal shutdown protection.
Applications
- Battery-Powered Equipment
- Ultra Low Power Microcontrollers
- Security Monitoring Equipment
Key features
- Wide Input Voltage Range: 3V~36V
- Maximum Output Current: 200mA
- Standard Fixed Output Voltage Options: 1.8V, 3.0V, 3.3V, 3.6V, 5.0V
- Low Quiescent Current: 2.5μA
- PSRR = 68dB@1KHz
- Low Dropout: 620mV @ 100mA, VOUT = 3.3V
- Low Output Voltage Accuracy: ±2%
- Short Circuit Protection
- Thermal Shutdown Protection
- Available Packages: SOT-23, SOT-23-3, SOT-89, SOT-23-5 and DFN2x2C-6L
