PJSEMIDatasheet (PDF)

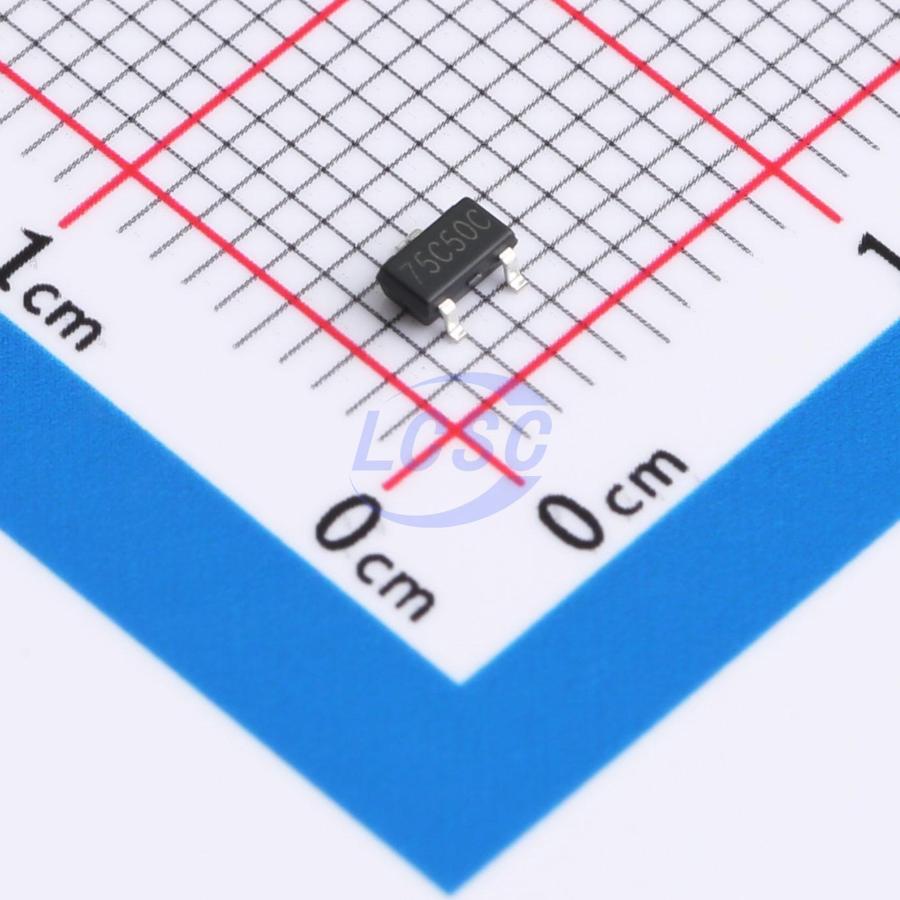

PJ75CL50SC
5V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3RoHSActive
Low Dropout Regulators
- Manufacturer
- PJSEMI
- Manufacturer part #
- PJ75CL50SC
- Store part #
- C41348033
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,440 in stock
#C41348033
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.70 | ₹97.00 |
| 100+ | ₹7.66 | ₹766.00 |
| 300+ | ₹6.65 | ₹1,995.00 |
| 3,000+ | ₹5.89 | ₹17,670.00 |
| 6,000+ | ₹5.28 | ₹31,680.00 |
| 9,000+ | ₹4.97 | ₹44,730.00 |
10 × ₹9.70
₹97.00
excl. GST
₹114.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PJ75CL50SC
₹97.00 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 5uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 150mA
- Output Type
- Fixed
- Features
- Over Current Protection;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
The PJ75C Series is a group of positive voltage output 3-terminal linear regulator, capable of delivering 150mA current and working under 40V input voltage. It also features extremely low standby current which is only 5uA, while still keeps very fast load transient response capability. With the extremely low 5uA standby current, PJ75C Series can greatly improve natural life of batteries. PJ75C includes high accuracy voltage reference, error amplifier, and current limit circuit and output driver module. PJ75C has well load transient response and good temperature characteristic. And it uses trimming technique to guarantee output voltage accuracy within ±2%. PJ75C can provide 3.0V, 3.3V, 5.0V, 9.0V, 12V output value. It also can be customized on command.
Applications
- Wearables
- Toys
- Smart Home Application
- Battery Powered Equipment
Key features
- Wide Input Voltage Range: 3V~40V
- Maximum Output Current: 150mA
- Standard Fixed Output Voltage Options: 3V~12V (customized by every 0.1V step)
- Low Power Consumption: 5.0uA（Typ.）
- PSRR: 50dB@1KHz
- Low Dropout Voltage: 740mV@IOUT=100mA
- Low Output Voltage Accuracy: ±2%
- Current Limit and Short Protection
- Over Temperature Protection
- Available Packages: SOT-23, SOT-23-3 and SOT-89
