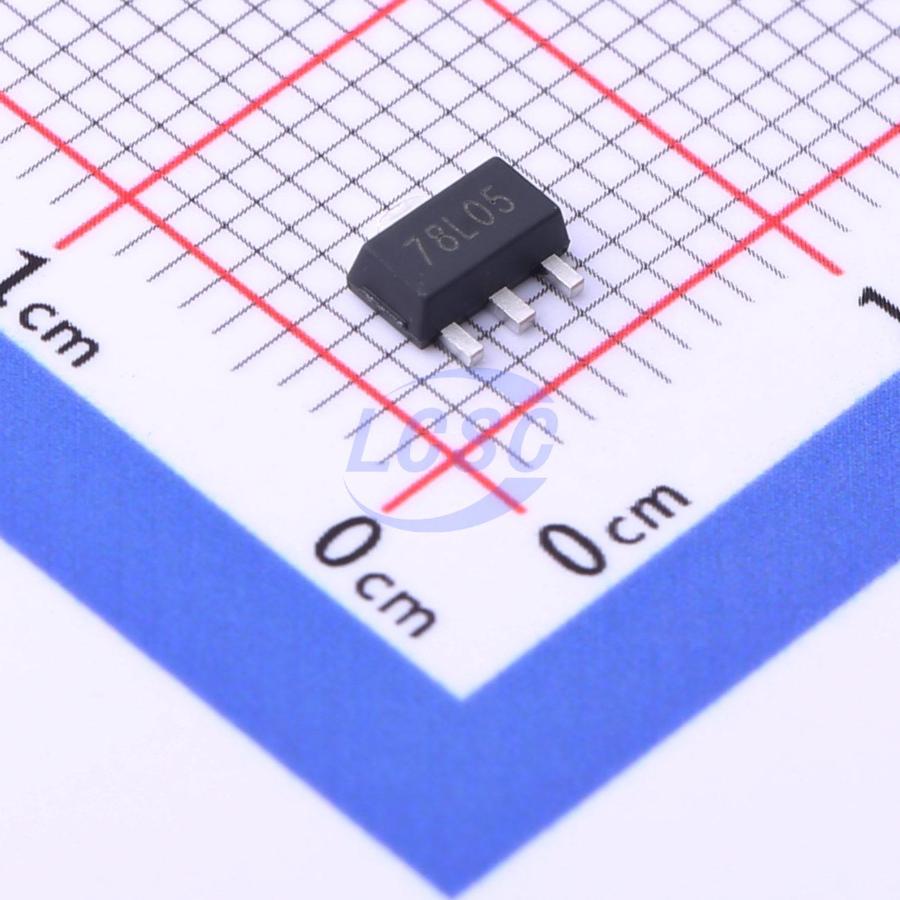

PJ78L05SQ-N
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOT-89-3
SOT-89-3RoHSActive
3-Terminal Voltage Regulator
- Manufacturer
- PJSEMI
- Manufacturer part #
- PJ78L05SQ-N
- Store part #
- C2892400
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,630 in stock
#C2892400
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.06 | ₹80.60 |
| 100+ | ₹6.51 | ₹651.00 |
| 300+ | ₹5.74 | ₹1,722.00 |
| 3,000+ | ₹4.54 | ₹13,620.00 |
| 6,000+ | ₹4.07 | ₹24,420.00 |
| 9,000+ | ₹3.85 | ₹34,650.00 |
10 × ₹8.06
₹80.60
excl. GST
₹95.11 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PJ78L05SQ-N
₹80.60 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 9mA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 35V
- Output Type
- Fixed
- Features
- Thermal shutdown;Short Circuit Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.16 g
Overview
Key features
- SOT-89
- Input voltage: up to 35V
- Output: 5V
- Output current up to 100 mA, internal thermal overload protection and short-circuit current limiting.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PJ78M05SQ#C41784044PJSEMI · SOT-89 | PJSEMI | SOT-89 | 2,805 | ₹11.72 · 2,805 in stock | View |
 | PJ75BL50SQ#C5456751PJSEMI · SOT-89 | PJSEMI | SOT-89 | 540 | ₹9.96 · 540 in stock | View |
 | PJ56L50SQ#C42444600PJSEMI · SOT-89 | PJSEMI | SOT-89 | 190 | ₹19.49 · 190 in stock | View |
 | PJ54M50SQ#C42444602PJSEMI · SOT-89 | PJSEMI | SOT-89 | 650 | ₹16.52 · 650 in stock | View |
 | PJ54AM50SQ#C42444603PJSEMI · SOT-89 | PJSEMI | SOT-89 | 335 | ₹20.92 · 335 in stock | View |
