PJSEMIDatasheet (PDF)

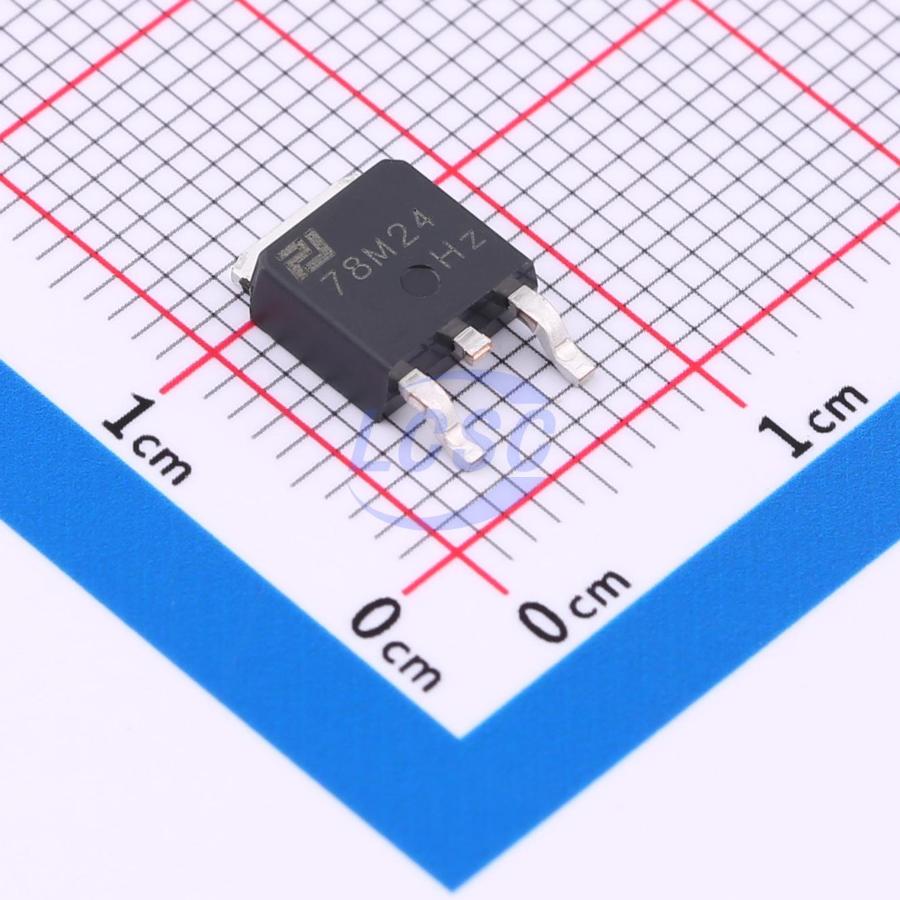

PJ78M24TE
24V Positive Fixed TO-252 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
TO-252RoHSActive
3-Terminal Voltage Regulators
- Manufacturer
- PJSEMI
- Manufacturer part #
- PJ78M24TE
- Store part #
- C36493735
- Package / case
- TO-252
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,500 in stock
#C36493735
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.99 | ₹114.95 |
| 50+ | ₹18.06 | ₹903.00 |
| 150+ | ₹15.94 | ₹2,391.00 |
| 500+ | ₹13.30 | ₹6,650.00 |
| 2,500+ | ₹12.13 | ₹30,325.00 |
| 5,000+ | ₹11.42 | ₹57,100.00 |
5 × ₹22.99
₹114.95
excl. GST
₹135.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
PJ78M24TE
₹114.95 for 5 + GST
Specifications
- Output Voltage
- 24V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 500mA
- Features
- Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.4 g
Overview
The PJ78MXXTE series of three-terminal positive regulators are available in TO-252 package. Each type employs internal current limiting, thermal shutdown and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, It can deliver over 0.5A output current. Although designed as fixed voltage regulator, This device can be used with external components to obtain adjustable voltage and currents.
Applications
- DC motor drivers
- Household electric appliances
- Industrial power supplies
- Test and measurement equipment
Key features
- Input voltage: up to 35V Output voltage: 5V,6V,8V,9V,10V,12V,15V,18V,24V
- Output current up to 500 mA
- Thermal overload protection Short circuit current limiting
