PJSEMIDatasheet (PDF)

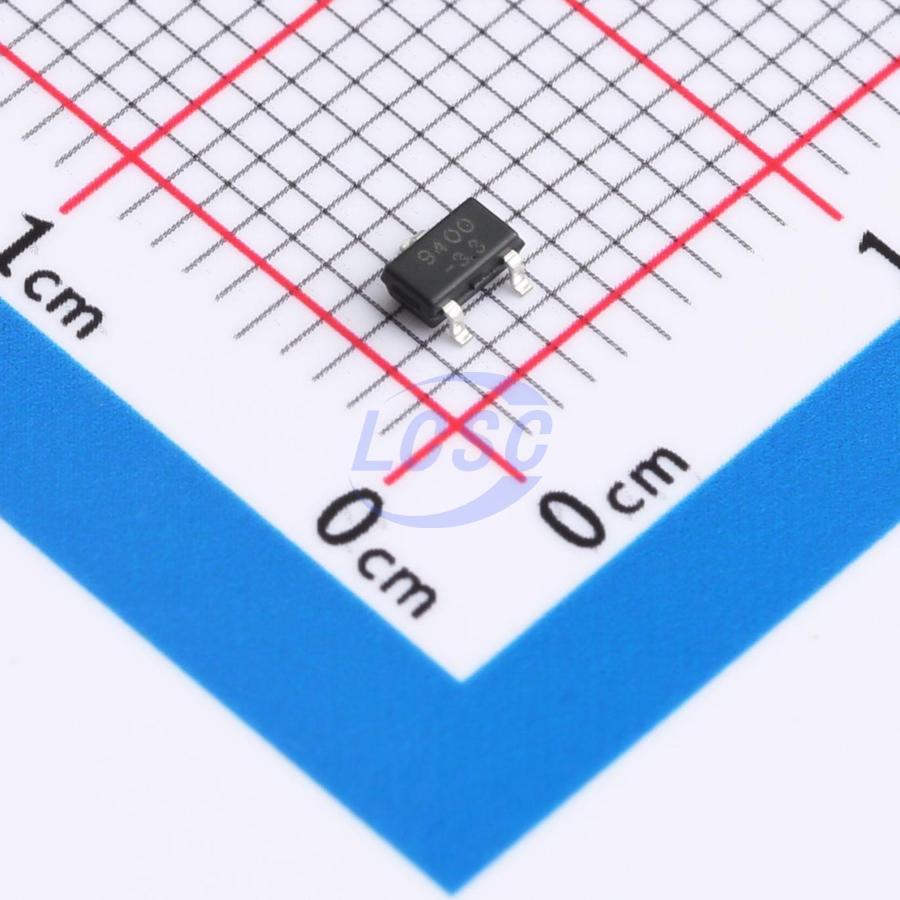

PJ9400L33SC
3.3V Positive Fixed SOT-23-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3RoHSActive
Low Dropout Regulators
- Manufacturer
- PJSEMI
- Manufacturer part #
- PJ9400L33SC
- Store part #
- C41348037
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,530 in stock
#C41348037
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.89 | ₹88.90 |
| 100+ | ₹7.03 | ₹703.00 |
| 300+ | ₹6.10 | ₹1,830.00 |
| 3,000+ | ₹5.40 | ₹16,200.00 |
| 6,000+ | ₹4.84 | ₹29,040.00 |
| 9,000+ | ₹4.56 | ₹41,040.00 |
10 × ₹8.89
₹88.90
excl. GST
₹104.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PJ9400L33SC
₹88.90 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 500nA
- Output Configuration
- Positive
- Operating Voltage
- 8V
- Output Current
- 400mA
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection;Over Current Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
The PJ9400 is a high accuracy, low noise, high speed CMOS Linear regulator with low power consumption and low dropout voltage, which provide large output currents even when the difference of the input-output voltage is small. The devices offer a new level of cost effective performance in cellular phones, laptop and notebook computers, and other portable devices. The current limiter's fold-back circuit also operates as a short circuit protection and an output current limiter at the output pin. Standard products are Pb-free and Halogen-free.
Applications
- Radio Control Systems
- Cellphones
- Radiophone
- Digital Cameras
- Bluetooth
- Wireless Handsets
Key features
- Wide Input Voltage Range: 1.5V~8V
- Maximum Output Current: 400mA @ VOUT=3.3V
- Standard Fixed Output Voltage Options: 1.1V~3.4V (customized by every 0.1V step)
- Low Quiescent Current: 0.5μA, (Typ.)
- PSRR: 60dB @ 1KHz
- Low Dropout: 180mV @ Iour=100mA
- Low Output Voltage Accuracy: ±2%
- Shut-down Current: <1μA
- Short Circuit Protection
- Current Limiting Protection
- Available Packages: SOT-89, SOT-23-3, SOT-23-5 and DFN1x1-4L
