Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,826 in stock
#C7434471
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹225.68 | ₹225.68 |
| 10+ | ₹206.55 | ₹2,065.50 |
| 30+ | ₹194.59 | ₹5,837.70 |
| 100+ | ₹182.19 | ₹18,219.00 |
| 500+ | ₹176.77 | ₹88,385.00 |
| 1,000+ | ₹174.37 | ₹1,74,370.00 |
1 × ₹225.68
₹225.68
excl. GST
₹266.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel

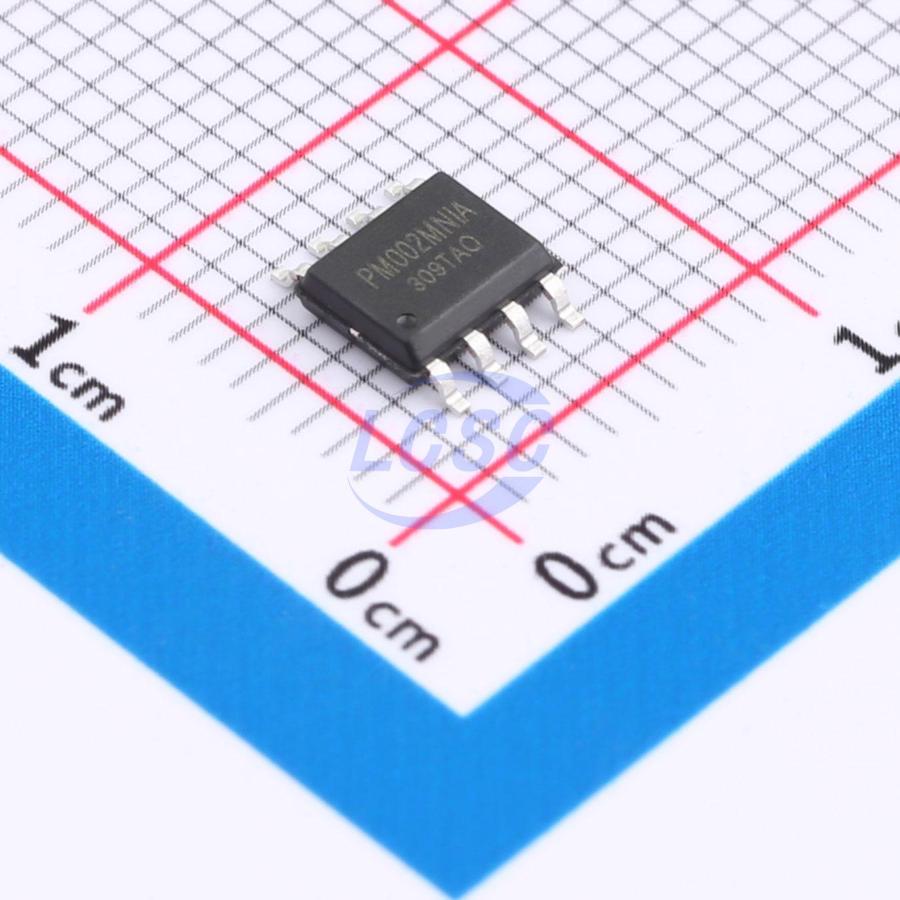

PM002MNIATR
₹225.68 for 1 + GST
Specifications
- Features
- Power-up/power-down/under-voltage data protection function;Software write protection function;Block protection function;Write protection function
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.217 g
Overview
Key features
- PM002M is a Mbit MRAM device with SPI/QPI (Serial/Quad Parallel Interface). The device can be configured as a 1-bit I/O separate interface or a 4-bit I/O common interface. The PM002M memory array employs MRAM technology, with data retention in the memory array exceeding 20 years.
- Memory density: 2Mbit
- Fast SPI interface: SPI SDR clock frequency up to 50MHz; QPI SDR clock frequency up to 50MHz; supports standard SPI and Quad SPI modes; no write delay; supports SPI Mode 0 and Mode 3
- Single voltage operation: typical voltage 3.3V, Vcc range 2.7V ~ 3.6V
- Data protection: software protection mode with BP0, BP1 in Mode Register #1
- Power consumption: sleep current 2μA (typical); standby current 2mA (typical); operating current 4.3mA (typical at SPI 50MHz)
- Reliability: data retention >20 years at 85°C; P/E endurance up to 10⁸ cycles
- Package: SOP8_150MIL
- Temperature range: junction temperature -40°C ~ 85°C
