NexperiaDatasheet (PDF)
PMEG2010AEJ,115

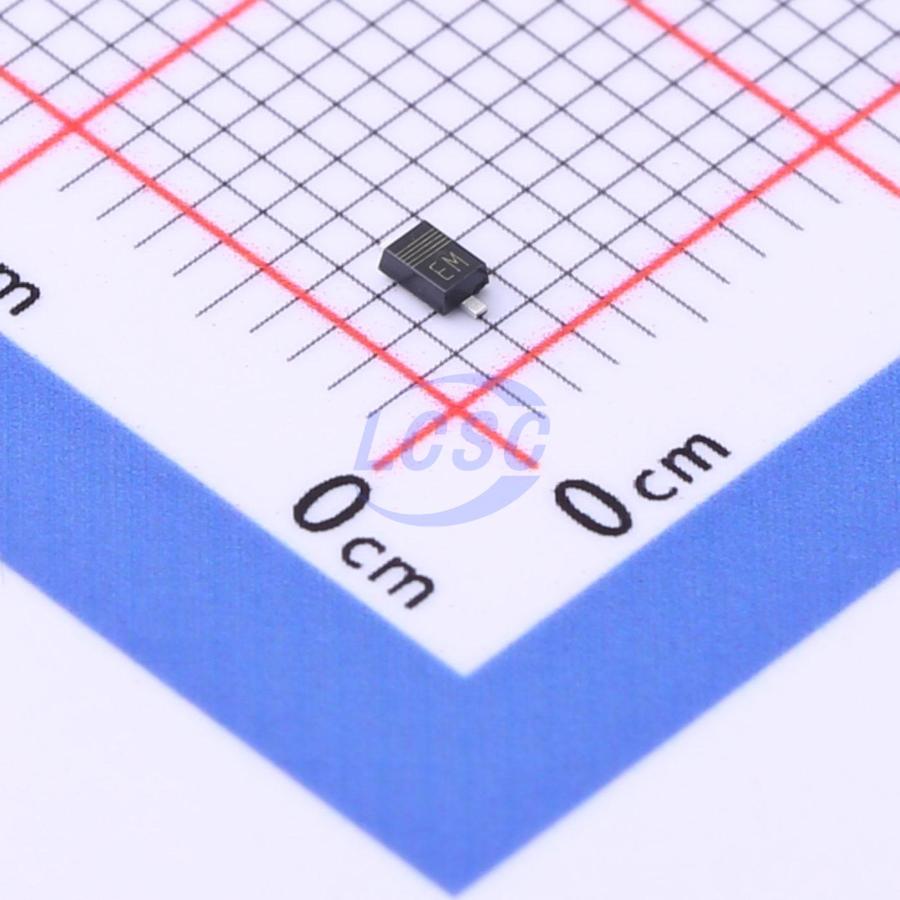

Diode 20V 1A Surface Mount SOD-323F
SOD-323FROHS3 CompliantActive
DIODE SCHOTTKY 20V SOD-323F
- Manufacturer
- Nexperia
- Manufacturer part #
- PMEG2010AEJ,115
- Store part #
- C552818
- Package / case
- SOD-323F
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,455 in stock
#C552818
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.34 | ₹141.70 |
| 50+ | ₹22.13 | ₹1,106.50 |
| 150+ | ₹19.47 | ₹2,920.50 |
| 500+ | ₹16.15 | ₹8,075.00 |
| 3,000+ | ₹14.67 | ₹44,010.00 |
| 6,000+ | ₹13.79 | ₹82,740.00 |
5 × ₹28.34
₹141.70
excl. GST
₹167.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMEG2010AEJ,115
₹141.70 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 20V
- Voltage - Forward(Vf@If)
- 550mV@1A
- Reverse Leakage Current (Ir)
- 70uA@20V
- Non-Repetitive Peak Forward Surge Current
- 10A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
Planar Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a SOD323F (SC- 90) very small and flat lead Surface Mounted Device (SMD) plastic package.
Applications
- Low voltage rectification
- High efficiency DC-to-DC conversion
- Switch mode power supply
- Inverse polarity protection
- Low power consumption applications
Key features
- Forward current: ≤ 1 A
- Reverse voltage: ≤ 20 V
- Very low forward voltage
- Very small and flat lead SMD plastic package
- AEC-Q101 qualified
