NexperiaDatasheet (PDF)

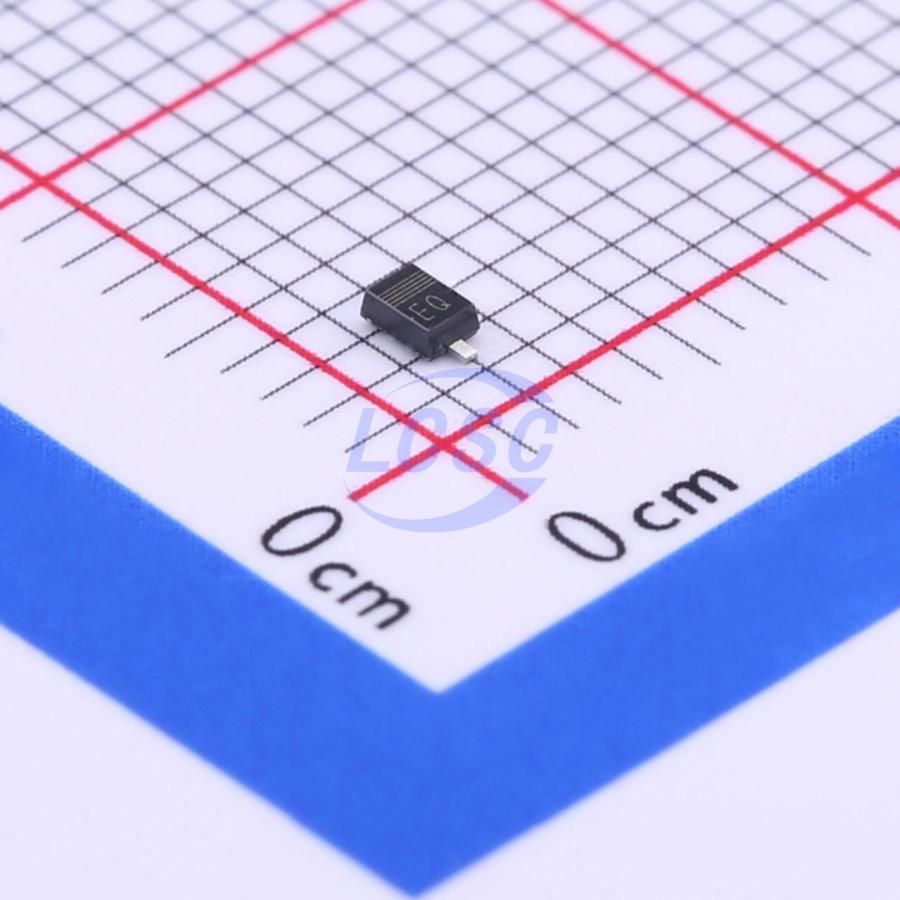

PMEG6010CEJ,115
Diode 1 Independent 60V 1A Surface Mount SOD-323F
PopularSOD-323FROHS3 CompliantActive
DIODE SCHOTTKY 60V SOD-323F
- Manufacturer
- Nexperia
- Manufacturer part #
- PMEG6010CEJ,115
- Store part #
- C406049
- Package / case
- SOD-323F
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
54,115 in stock
#C406049
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.46 | ₹107.30 |
| 50+ | ₹16.76 | ₹838.00 |
| 150+ | ₹14.75 | ₹2,212.50 |
| 500+ | ₹12.24 | ₹6,120.00 |
| 3,000+ | ₹11.11 | ₹33,330.00 |
| 6,000+ | ₹10.45 | ₹62,700.00 |
5 × ₹21.46
₹107.30
excl. GST
₹126.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMEG6010CEJ,115
₹107.30 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 660mV@1A
- Reverse Leakage Current (Ir)
- 50uA@60V
- Non-Repetitive Peak Forward Surge Current
- 10A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifiers with an integrated guard ring for stress protection, encapsulated in small and flat lead Surface- Mounted Device (SMD) plastic packages.
Applications
- Low voltage rectification
- High efficiency DC-to-DC conversion
- Switch mode power supply
- Reverse polarity protection
- Low power consumption applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | B16WS#C20416649BORN · SOD-323 | BORN | SOD-323 | 7,660 | ₹3.39 · 7,660 in stock | View |
 | B16WS#C22374721DOWO · SOD-323 | DOWO | SOD-323 | 11,450 | ₹2.05 · 11,450 in stock | View |
 | FMSS1P6M3#C42411350FUXINSEMI · SOD-323 | FUXINSEMI | SOD-323 | 3,000 | ₹4.90 · 3,000 in stock | View |
 | B16WS#C42429518YFW · SOD-323 | YFW | SOD-323 | 860 | ₹3.32 · 860 in stock | View |
 | B16WS#C42432510PAKER · SOD-323 | PAKER | SOD-323 | 2,360 | ₹3.36 · 2,360 in stock | View |
