NexperiaDatasheet (PDF)

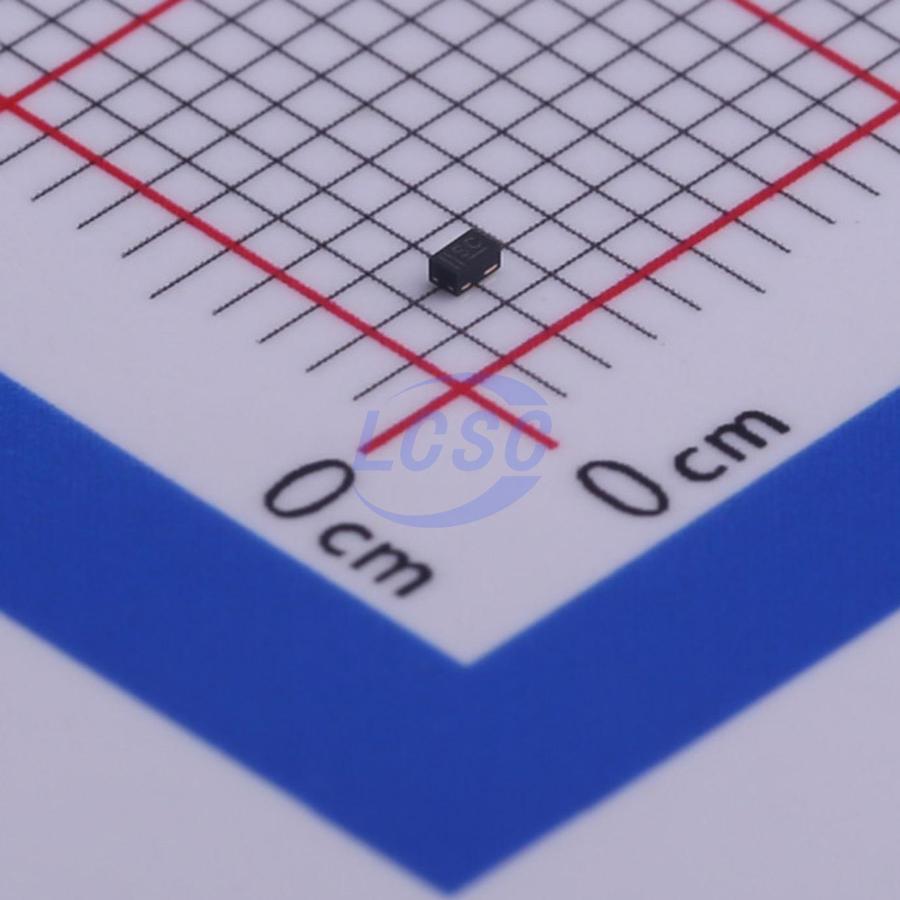

PMZ290UNE2YL
N-Channel 20V 1.2A 715mW Surface Mount DFN1006-3L
DFN1006-3LROHS3 CompliantActive
MOSFET N-CH 20V 1.2A DFN1006-3L
- Manufacturer
- Nexperia
- Manufacturer part #
- PMZ290UNE2YL
- Store part #
- C478155
- Package / case
- DFN1006-3L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,570 in stock
#C478155
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.90 | ₹89.00 |
| 100+ | ₹7.13 | ₹713.00 |
| 300+ | ₹6.24 | ₹1,872.00 |
| 1,000+ | ₹5.57 | ₹5,570.00 |
| 5,000+ | ₹5.04 | ₹25,200.00 |
| 10,000+ | ₹4.78 | ₹47,800.00 |
10 × ₹8.90
₹89.00
excl. GST
₹105.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
PMZ290UNE2YL
₹89.00 for 10 + GST
Specifications
- Output Capacitance(Coss)
- 9.6pF
- Ciss-Input Capacitance
- 46pF
- Pd - Power Dissipation
- 715mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 1.2A
- Reverse Transfer Capacitance (Crss)
- 7.7pF
- RDS(on)
- 320mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 1.4nC@4.5V
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 950mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.009 g
Overview
N-channel enhancement mode Field-Effect Transistor (FET) in a leadless ultra small DFN1006-3 (SOT883) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
Applications
- Relay driver
- High-speed line driver
- Low-side loadswitch Switching circuits
Key features
- Trench MOSFET technology
- Low threshold voltage
- Very fast switching
- ElectroStatic Discharge (ESD) protection: 2 kV HBM
- Leadless ultra small SMD plastic package: 1.0×0.6×0.48 mm
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSBG2024#C508789HUASHUO · DFN1006-3 | HUASHUO | DFN1006-3 | 5,740 | ₹6.38 · 5,740 in stock | View |
 | DMN2710UFBQ-7#C29339511DIODES · X1-DFN1006-3 | DIODES | X1-DFN1006-3 | 111 | ₹83.36 · 111 in stock | View |
 | DMN2300UFB4-7B#C154728DIODES · X2-DFN1006-3 | DIODES | X2-DFN1006-3 | 13,055 | ₹16.14 · 13,055 in stock | View |
 | PMZ390UN,315#C458236Nexperia · SOT-883 | Nexperia | SOT-883 | 9,455 | ₹19.49 · 9,455 in stock | View |
 | LN108N3T5G#C5273740LRC · SOT-883 | LRC | SOT-883 | 12,340 | ₹6.01 · 12,340 in stock | View |
