Wuxi Chipown Micro-electronicsDatasheet (PDF)

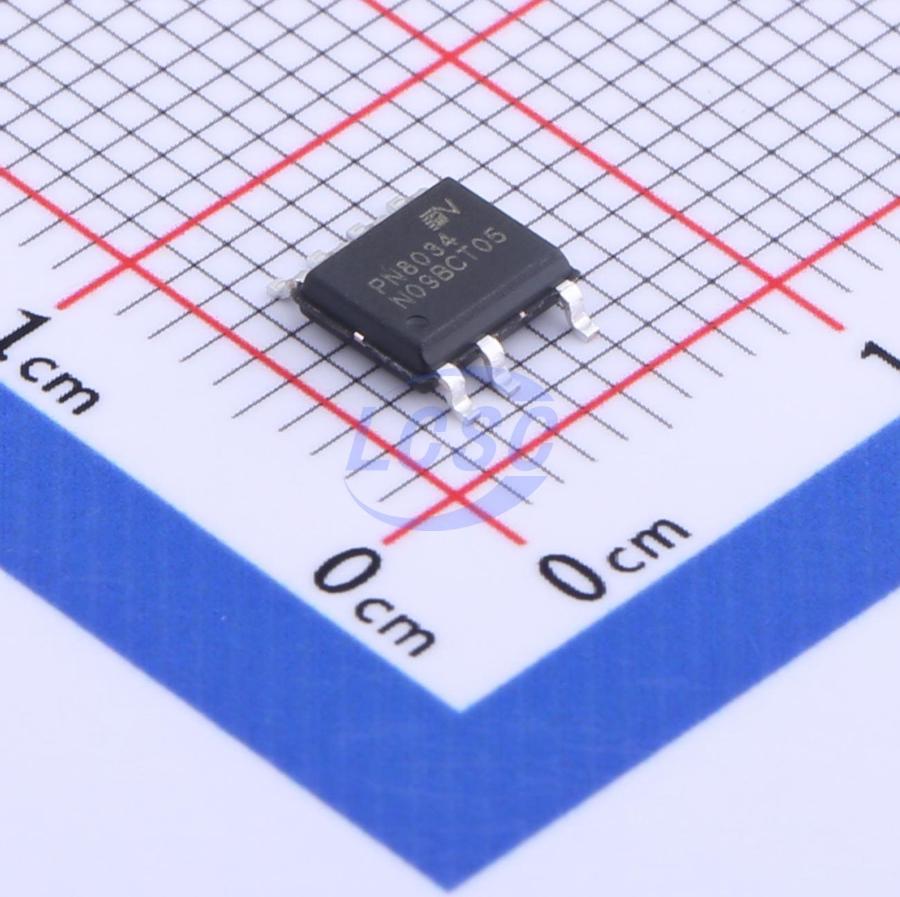

PN8034SSC-R1B
250mA 10V~20V 650V 12V SOP-7 AC DC Converters, Offline Switchers RoHS
SOP-7ROHS CompliantActive
High-performance non-isolated AC-DC conversion chip
- Manufacturer
- Wuxi Chipown Micro-electronics
- Manufacturer part #
- PN8034SSC-R1B
- Store part #
- C2798024
- Package / case
- SOP-7
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,905 in stock
#C2798024
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.11 | ₹205.55 |
| 50+ | ₹32.48 | ₹1,624.00 |
| 150+ | ₹28.78 | ₹4,317.00 |
| 500+ | ₹24.16 | ₹12,080.00 |
| 2,500+ | ₹22.11 | ₹55,275.00 |
| 4,000+ | ₹20.88 | ₹83,520.00 |
5 × ₹41.11
₹205.55
excl. GST
₹242.55 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
PN8034SSC-R1B
₹205.55 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Output Current
- 250mA
- Voltage - Supply
- 10V~20V
- Voltage - Breakdown
- 650V
- Features
- High voltage direct start;Leading edge blanking;Under-voltage lockout;EMI optimization (spread spectrum);Overtemperature protection (OTP);Under Voltage Protection
- Output Voltage
- 12V
- Working Mode
- CCM;DCM
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.195 g
Overview
The PN8034 integrates a PFM controller and a 650V high-avalanche-capability smart power MOSFET, designed for compact low-power non-isolated switching power supplies with minimal peripheral components. The IC features a built-in high-voltage startup module enabling fast system startup and ultra-low standby power, along with comprehensive intelligent protection functions including overload protection, undervoltage protection, and over-temperature protection. In addition, the PN8034's frequency-reduction modulation technique helps improve EMI performance.
Applications
- Non-isolated auxiliary power supply
Key features
- Integrated 650V high avalanche capability smart power MOSFET
- Integrated high-voltage startup circuit
- Optimized for 12V output non-isolated applications
- DIP-7 package semi-enclosed steady-state output power 3.6W @ 230VAC
- SOP-7 package semi-enclosed steady-state output power 3.0W @ 230VAC
- Frequency-reduction modulation for improved EMI
- Excellent load regulation and efficiency
- Comprehensive protection features including OLP, OTP, and UVLO
