Wuxi Chipown Micro-electronicsDatasheet (PDF)

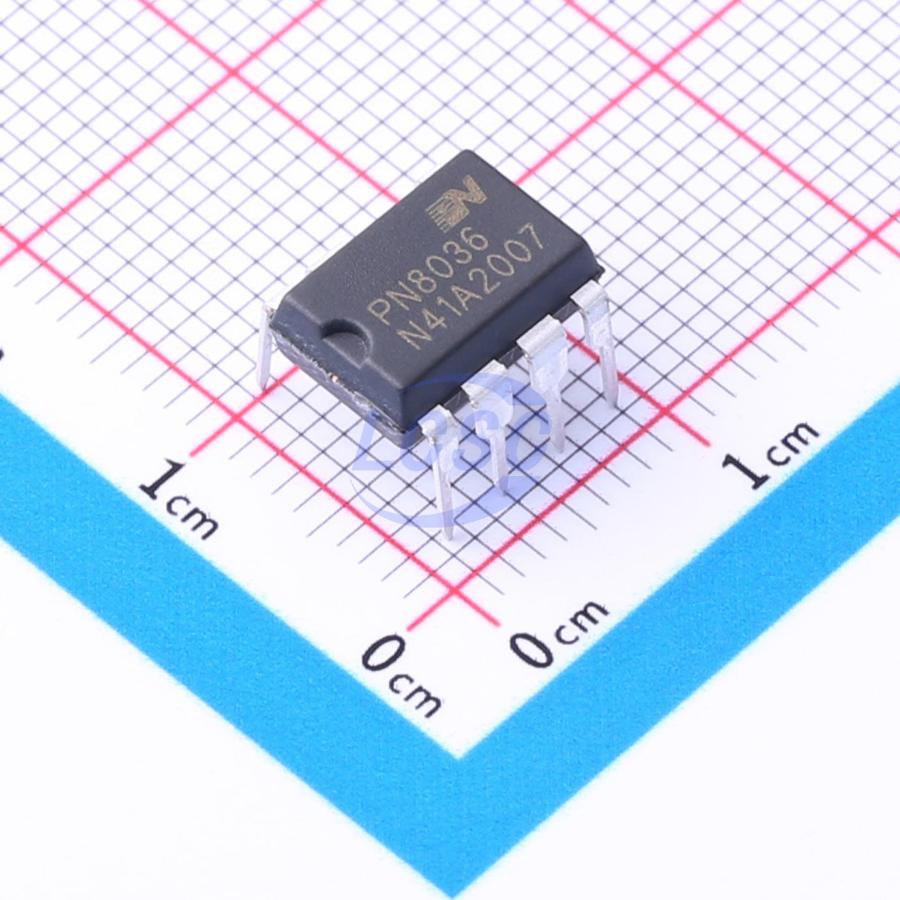

PN8036NSC-T1
500mA 650V 12V DIP-7 AC DC Converters, Offline Switchers RoHS
DIP-7ROHS CompliantActive
High-performance non-isolated AC-DC conversion chip
- Manufacturer
- Wuxi Chipown Micro-electronics
- Manufacturer part #
- PN8036NSC-T1
- Store part #
- C2915270
- Package / case
- DIP-7
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,015 in stock
#C2915270
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.91 | ₹55.91 |
| 10+ | ₹43.94 | ₹439.40 |
| 50+ | ₹38.72 | ₹1,936.00 |
| 100+ | ₹32.20 | ₹3,220.00 |
| 500+ | ₹29.37 | ₹14,685.00 |
| 1,000+ | ₹27.62 | ₹27,620.00 |
1 × ₹55.91
₹55.91
excl. GST
₹65.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
PN8036NSC-T1
₹55.91 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Output Current
- 500mA
- Voltage - Breakdown
- 650V
- Features
- High voltage direct start;Leading edge blanking;Under-voltage lockout;EMI optimization (spread spectrum);Overtemperature protection (OTP);Under Voltage Protection
- Topology
- Buck;Buck-Boost
- Output Voltage
- 12V
- Working Mode
- CCM;DCM
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.857 g
Overview
PN8036 integrates a PFM controller and a 650V high-avalanche-capability smart power MOSFET, designed for compact low-power non-isolated switching power supplies with minimal peripheral components. The PN8036 features a built-in 650V high-voltage startup module, enabling fast system startup and ultra-low standby power consumption. The device provides comprehensive intelligent protection functions, including overload protection, undervoltage protection, and over-temperature protection. In addition, the PN8036's frequency-reduction modulation technique helps improve EMI performance.
Applications
- Non-Isolated Auxiliary Power Supply
Key features
- Built-in 650V high-avalanche-capability smart power MOSFET
- Built-in high-voltage startup circuit
- Optimized for 12V output non-isolated applications
- Semi-enclosed steady-state output power 6W@230VAC
- Frequency-reduction modulation for improved EMI
- Excellent load regulation and efficiency
- Comprehensive protection features: OLP, OTP, UVLO
